21.5″ Smart Bedside Android Touch Panel PC
Radiology, Medical Cart, Bedside Terminal, HMI Controller.
| Display Size | 21.5" |
|---|---|
| Processor | Qualcomm Processor |
| RAM | 4G DDR4 (default) / 8GB (optional) |
| OS Support | Android 13 |
Datasheet
WMA2155
21.5″ Smart Bedside Android Touch Panel PC
| Display | |
|---|---|
| Display Type | 21.5” IPS LCD |
| Resolution | 1920 x 1080 |
| Brightness | 500 nits |
| Touch Panel | 10 Points Multiple PCAP touch |
| Contrast Ratio | 1000:1 |
| View Angle(°) | 89/89(L/R), 89/89(U/D) |
| System | |
| CPU | Qualcomm ARM KryoTM260 processor, Octa-core 64bit |
| GPU | Adreno TM 610 |
| Memory | 4G DDR4 (default) / 8GB (optional) |
| Storage | 64G UFS (default) / 128GB (optional) |
| OS Support | Android 13 |
| Function Support | Support IEEE 802.11 a/b/g/n/ac 2.4/5GHz Bluetooth 5.0 4G (optional) Light Sensor Full-function Handset with remote control Combo smart card reader & Mifare RFID (optional) 1 x Reading Lamp |
| Camera | Front: 16MP CMOS Camera |

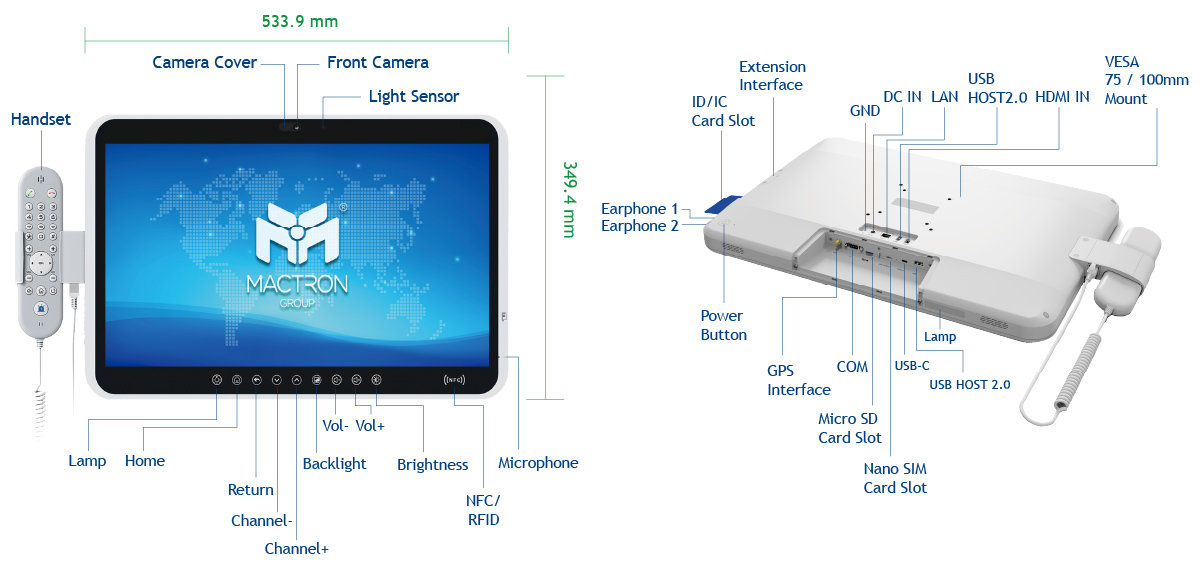

| I/O Ports | 2 x Earphone Jack 1 x Handset Jack 2 x USB HOST 2.0 1 x USB Type C 1 x Micro SD Card Slot 1 x Nano SIM Card Slot 1 x HDMI In 1 x RS232 1 x Internal Microphone 1 x RJ45 100M(PoE++, 60W, optional) 1 x GPS(Optional) |
| Function Key | Brightness, Home, Return, Channel-, Channel+, Backlight, Vol-, Vol+, Lamp |
| Physical | |
| Internal Speaker | 2 x 6Ω/2W |
| DC In | 9-36V DC |
| Power Adapter | 12V /5A |
| Mounting | VESA 75 x 75/100 x 100(mm) |
| Housing | Plastic |
| Packing List | |
| Standard Accessory | Power Adapter Handset |
| Product Dimension | 533.9 × 349.4 × 45.5 mm |
| Product Weight | 5.1 kg |
| Environment | |
| Rugged Feature | Front IP65 |
| Certification | IEC 60601-1,EN 60601-1,CE,FCC, ISO 22196 |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Relative Humidity | 80% RH non-condensing |
