MMS0700

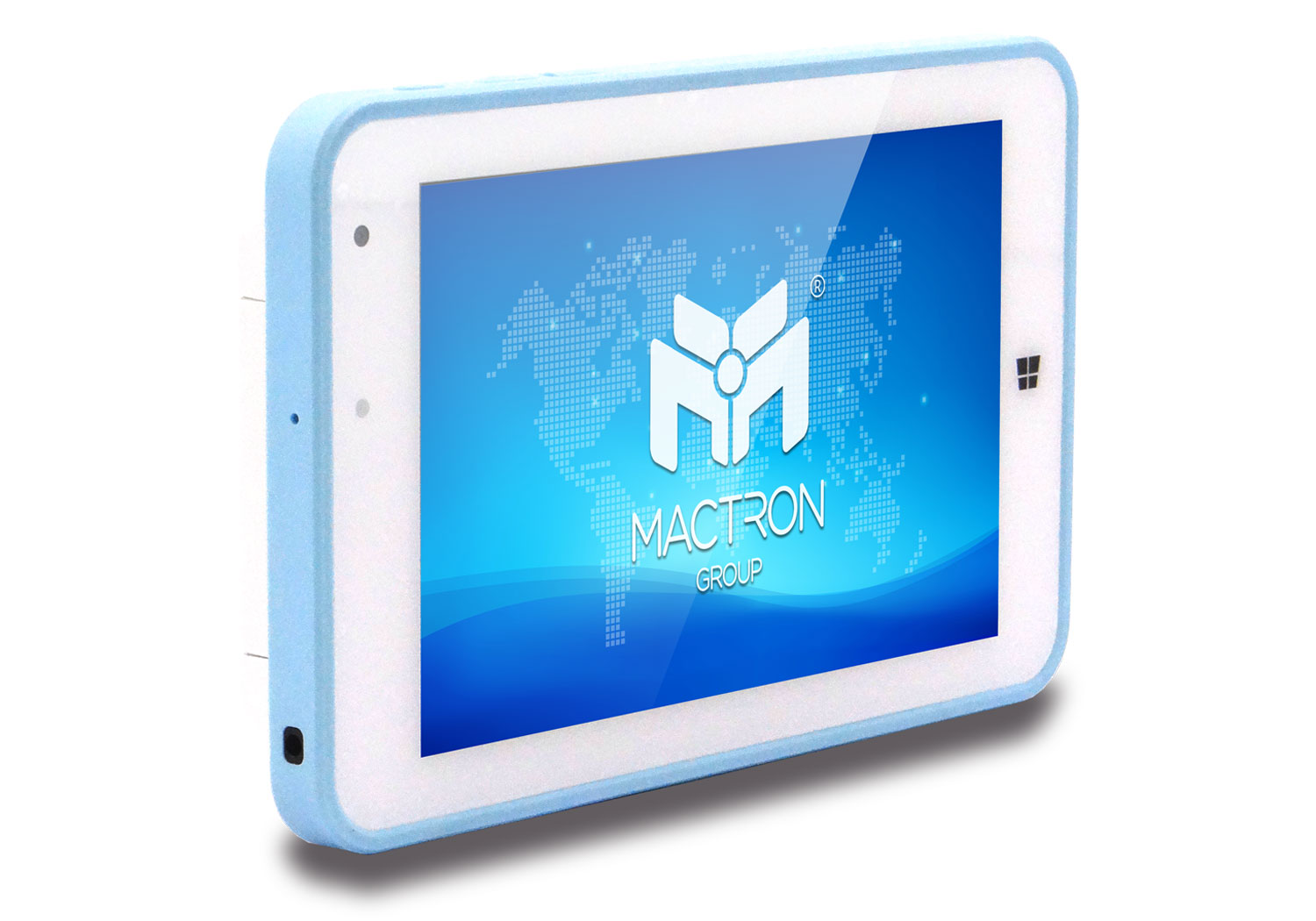

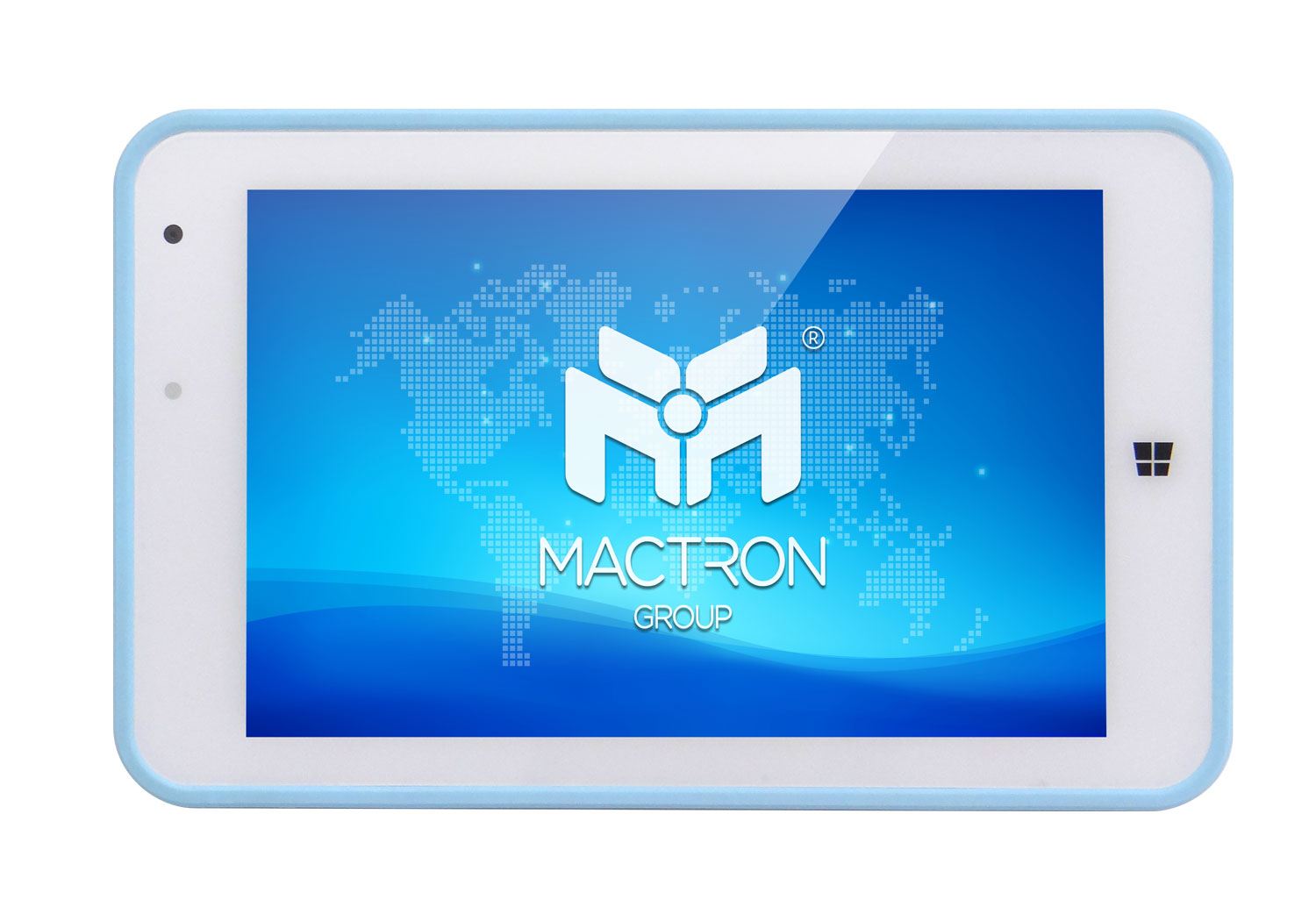

7″ Medical Grade Windows Mobile Tablet PC

7″ Panel / 10-Point touch
Intel® Atom™ x5-Z8550 Processor
4GB memory , 64GB EMMC
802.11 a/b/g/n/ac , BT 4.0, GPS , NFC
8MP (Rear Camera) , 2MP (Front Camera)
Modularization (optional)
– 1D/2D Barcode Scanner / Smart Card Reader / MSR / GigaLan / WWAN 3G/LTE
Alcohol Resistant, Anti-BACTERIA
IP54, Drop Resistance, 80cm free drop
OS: Windows 10 (optional)

Radiology, Surgical, Medical Cart, Bedside Terminal, Mobile X-Ray, etc.

Category: Medical

Datasheet

MMS0700

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
sales@dsl-industrialcomputing.co.uk

7″ Panel / 10-Point touch
Intel® Atom™ x5-Z8550 Processor
4GB memory , 64GB EMMC
802.11 a/b/g/n/ac , BT 4.0, GPS , NFC
8MP (Rear Camera) , 2MP (Front Camera)
Modularization (optional)
– 1D/2D Barcode Scanner / Smart Card Reader / MSR / GigaLan / WWAN 3G/LTE
Alcohol Resistant, Anti-BACTERIA
IP54, Drop Resistance, 80cm free drop
OS: Windows 10 (optional)

Display
Display Type	7″ LCD
Resolution	1280 x 800 pixel
Touch Type	PCAP (10 points)
System
CPU	Intel^® Atom™ x5-Z8550 Processor (Cherry Trail Type 4)
Memory	LPDDR3 1600MHz, 4GB
Storage	Single eMMC 4.5, 64GB
Operating System	Windows 10 64bit (optional)
Communications	Wi-Fi 802.11 a/b/g/n/ac Bluetooth v4.0 GPS & GLONASS NFC: NXP NPC100 , ISO14443 Type A, Type B, PC/SC (windows driver support ) 3G/LTE (optional module)
Sensor	E-compass, G-sensor, Gyro, Ambient Light sensor

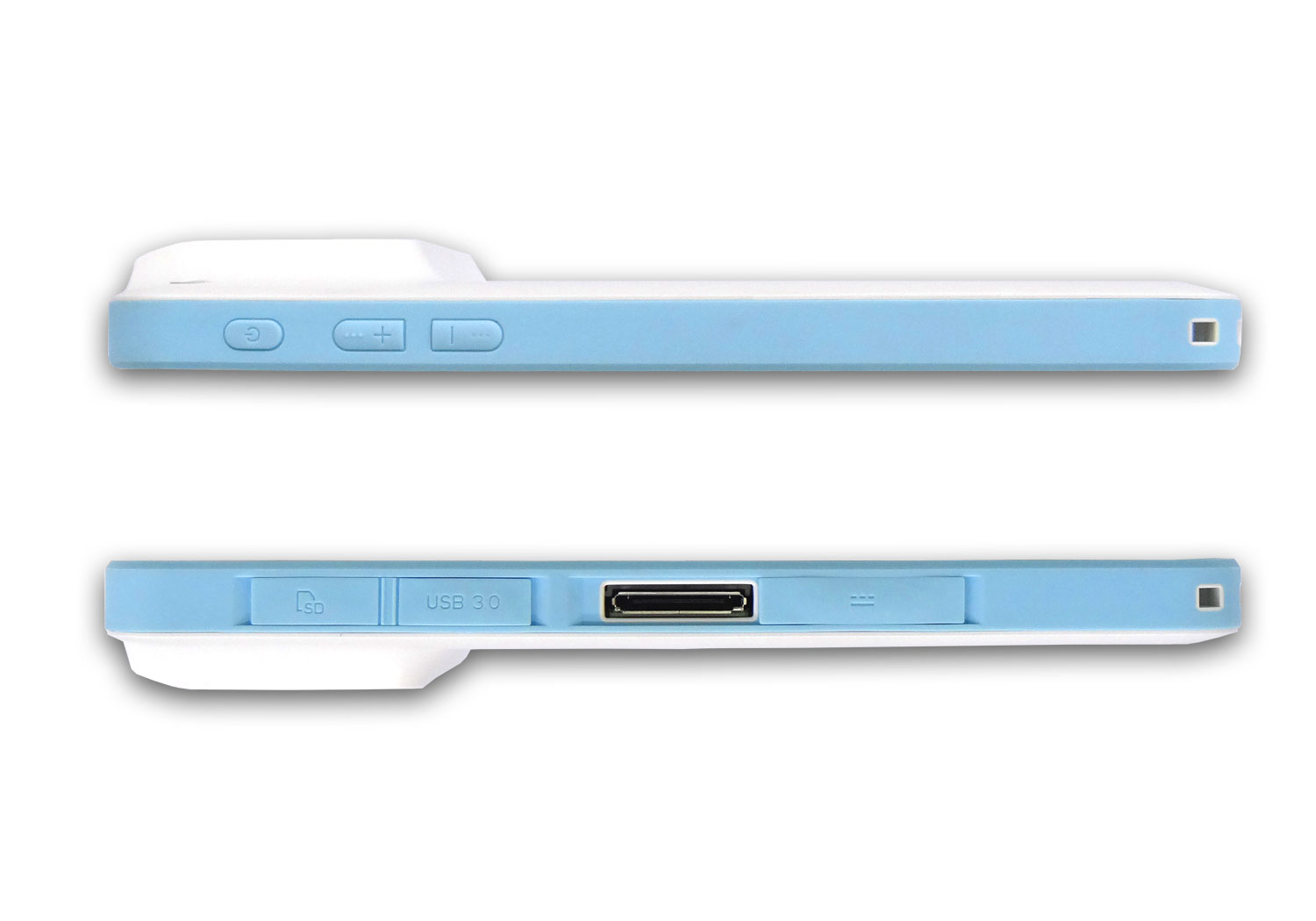

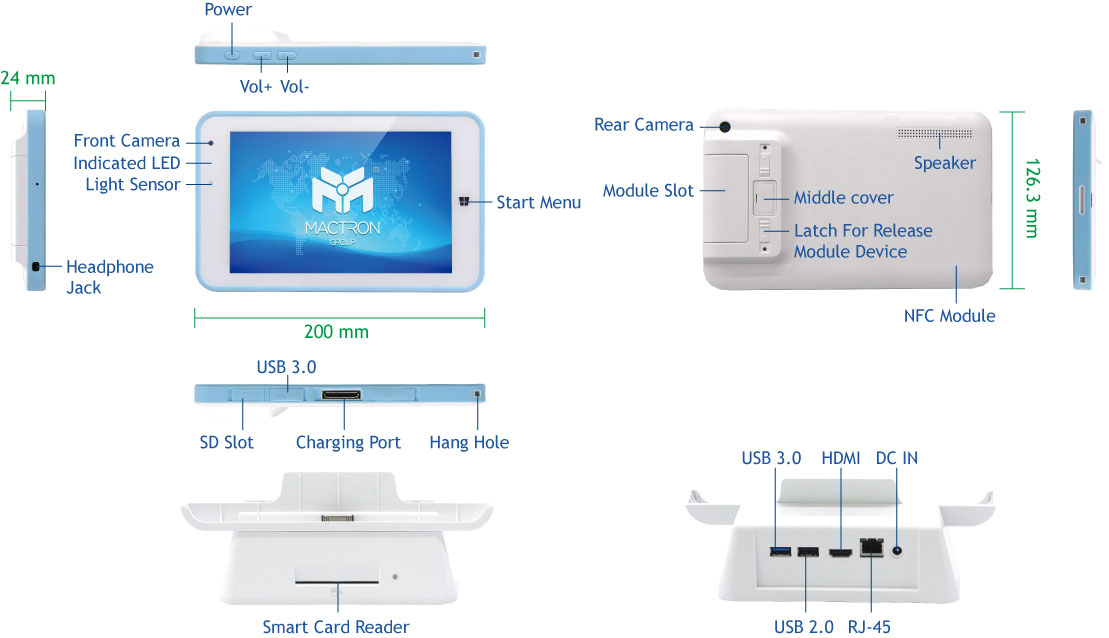

IO Ports	1 x Docking Port (with AC-IN, HDMI, USB) 1 x Micro SD card slot 1 x Mic/Head phone jack combo 1 x micro USB port (OTG)== USB3.0 micro Type B
Camera	Front Camera : 2.0M Rear Camera : 8.0M
Control Buttons	Power, Volume Up ,Volume Down
Battery	Li-polymer 4100 mAh/ 15.17Wh
Ingress Protection	IP54
Speaker	2x Speakers, 1W x 8 Ohm
MIC	1x DMIC
Environment
Operating Temperature	0°C ~ 40°C
Operating Humidity (RH)	10% – 95% non-condensing
Storage Temperature	-20°C ~ 60°C
Storage Humidity (RH)	5% – 95%
Vibration	4Gs Peak, 5Hz to 2kHz, 1 Hour Duration per axis
Drop Test	0.8m / 2.7ft. Drop to steel Surface, 1 drop per 6 sides
Dimensions	200mm x 125mm x 23.5mm
Weight	490g
Certifications	FCC Part 15 Class B, CE, IEC60601
Optional Devices	1D/2D Barcode Scanner, 3G / LTE Module, Smart Card Reader (contact), MSR, Ethernet Giga LAN RJ45 Port
Docking	Optional
