- 12.2″ Medical Grade Android System with Qualcomm QCM6490 Processor
- Alcohol Resistant and Anti-Bacterial Enclosure Design
- Removable 12,600mAh Large Capacity Battery with 8 hours operation time
- IP65 Ruggedized Protection and 1.22m Drop Resistant
- Wireless Solution Support 5G, WiFi, BT and GNSS
- IEC60601 Medical Certified
Medical
MMA1221
MMA1221

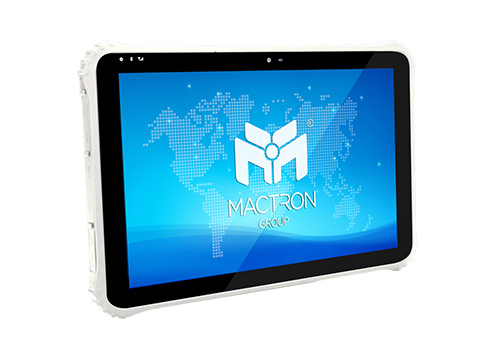

12.2″ Medical Grade Android Mobile Tablet PC
- 12.2″ Medical Grade Android System with Qualcomm QCM6490 Processor
- Alcohol Resistant and Anti-Bacterial Enclosure Design
- Removable 12,600mAh Large Capacity Battery with 8 hours operation time
- IP65 Ruggedized Protection and 1.22m Drop Resistant
- Wireless Solution Support 5G, WiFi, BT and GNSS
- IEC60601 Medical Certified
Applications:
Medical & Healthcare, Daily Patient Management, Remote Mobile Medical Service, Medicine Management, Emergency Field
Quick Spec
| Display Size | 12.2" |
|---|---|
| Processor | Qualcomm® QCM6490 Processor |
| RAM | 8GB LPDDR4 |
| Operating System | Android 14 |
Datasheet
MMA1221
| Display | |
|---|---|
| Display Type | 12.2″ LCD |
| Resolution | 1920 x1200 FHD |
| Brightness | 700 nits |
| Touch Panel |
10 Points, Capacitive Multi-Touch Screen Support Active Stylus |
| Main System | |
| CPU | Qualcomm® QCM6490 Processor(up to 2.7GHz，8cores) |
| GPU | Qualcomm® Adreno™ 643L |
| Memory | 8GB LPDDR4 |
| Storage | 128GB UFS |
| Operating System | Android 14 |

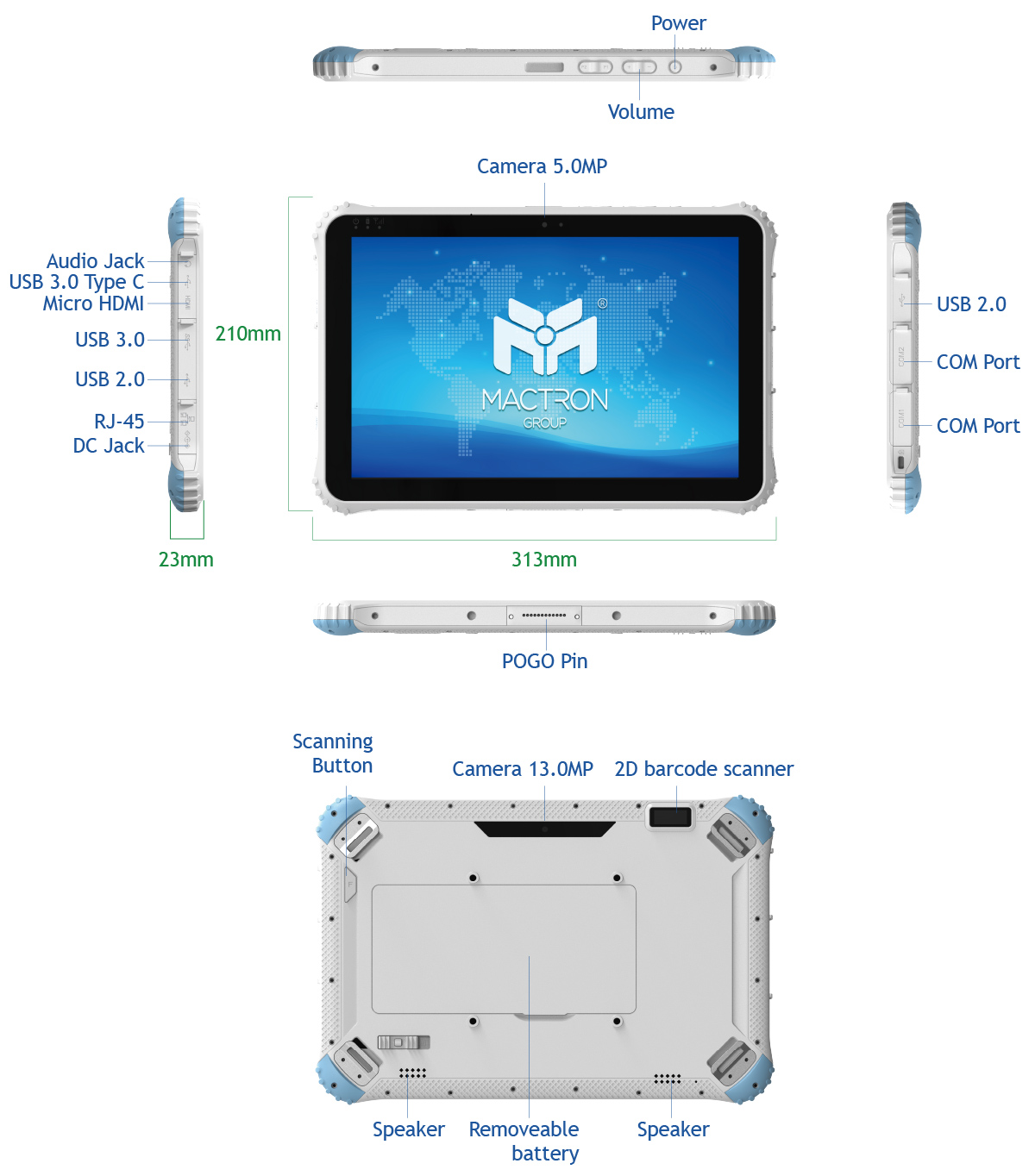

| I/O Ports |
USB 2.0 Type-A x 2 USB3.0 Type-A x 1 USB 2.0 Type-C x 1 3.5mm AudioJack x 1 HDMI 1.4 mini x 1 10/100M/1000M Ethernet (RJ45) x 1 Serial port (RS232: D-sub, 9-pin) x 1 Serial port (RS485: D-sub, 9-pin) x 1 DC-In 3.5mm jack x 1 Micro SD card x 1 SIM Card x 1 12pin POGOPin x 1 (Charge&USB) |
| WiFi | Wi-Fi 6E |
| Bluetooth | Bluetooth® 5.2 |
| 4G/5G | 5G |
| GPS | GPS/GLONASS/BEIDOU/Galileo/QZSS(L1+L5) |
| Data Collection |
Barcode Scanner Module (Optional) NFC Module (Optional) |
| Physical | |
| Camera |
FF 5.0 MP front camera AF 13.0 MP rear camera |
| Audio |
Speaker 1W x2 Microphone x1 |
| Color | Black |
| Buttons |
P1 Key (User-definable keys（Default Home key）)x1 P2 Key (User-definable keys（Default return key）)x1 Scan Key (User-definable keys（Default Scan key）)x1 Power On/Off x1 Volume + Key x1 Volume – Key x1 Home Key x1 |
| Indicator LED |
Charge LED indicator x1 Power LED indicator x1 4G/5G LED indicator x1 |
| Sensors | Hall sensor, G-sensor, Light Sensor, Geomagnetic sensor |
| Battery | Battery Li-Ion, 3.7V, 12600mAh, 7.9h |
| RTC Battery | RTC 3V/1mAh on board |
| Power Adapter |
AC adapter: 100-240V, 5V/4A/20W USB-Type-C Adapter: 5V/4A/20W (Optional) |
| Standard Accessory |
Power Adapter x1 Hand Strap x1 |
| Optional Accessory |
Removable Battery Power Adapter Docking Station Mounting Holder Vehicle Charger Detachable Keyboard Shoulder Strap Back Strap |
| Packing List | |
| Accessories |
Power Adapter x1 Hand-strap x 1 Carry handle x 1 Bracket x 1 |
| Product Dimension | 319.6*216*24.3 mm |
| Product Weight | 1500g |
| Box Dimension | TBD |
| Box Weight | TBD |
| Environment | |
| IP Rating | IP65 |
| Drop Test | 1.22m Drop Resistance |
| Certification | CE,CCC / MIL-STD-810H/ IEC 60601-1 |
| Operating Temperature | -20 °C to 60 °C （-4°F ~ 140°F） |
| Storage Temperature | -30 °C to 70 °C （-22°F ~ 158°F） |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |
