MMS1016

10.1″ Medical Rugged Windows Mobile Tablet PC

Medical & Healthcare, Daily Patient Management, Remote Mobile Medical Service, Medicine Management, Emergency Field, etc.

Category: Medical

Datasheet

MMS1016

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
sales@dsl-industrialcomputing.co.uk

Display
Display Type	10.1″ TFT LCD
Resolution	1280 x 800
Aspect Ratio	16:10
Brightness	300 nits
Touch Panel	10 Points Projected Capacitive Touch
System
Processor	Intel^® Celeron N3350 Dual Core Intel^® Pentium N4200 Quad Core (Optional)
GPU	Intel^® HD Graphics 505
Memory	1 x LPDDR4 4GB (Max.8GB)
Storage	1 x M.2 SSD 128GB (Up to 1TB)

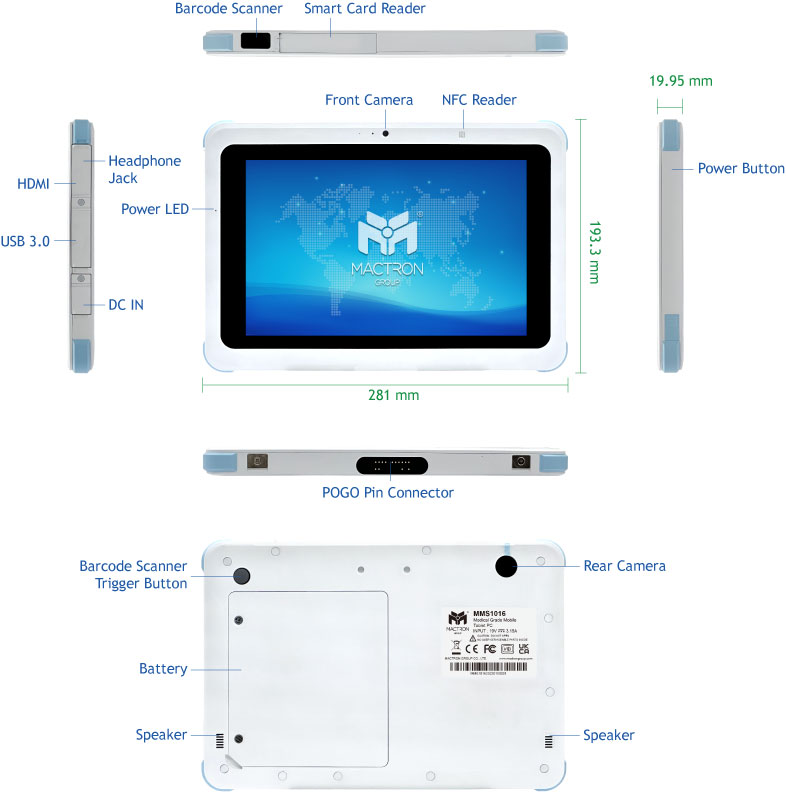

I/O Ports	2 x USB 3.0 Type A 1 x HDMI 1 x Audio Jack 1 x Micro SD Card Slot 1 x DC-In
Operating System	Windows 10 IoT, Android 8.1
Physical
Camera	2MP Front Camera 8MP Rear Camera With Auto Focus
Speaker	Internal Speaker
Mounting	VESA Mount 75 x 75 mm
Color	Black
Dimensions (WxHxD)	281 x 193 x 19 mm
Weight	1 kg
Enclosure	Rugged Rubber Plastic
Button	1 x Power On/Off 1 x Barcode Scanner Trigger
Sensor	G-Sensor Light-Sensor
Battery	3,950 mAh/ 8.4 V (Removable)
Using Time	6 Hours
Power Adapter	DC 19V/3.4A, 65W
Communication	WLAN : 802.11 a/b/g/n/ac Bluetooth 5.0
Data Collection	NFC 4G LTE (Optional) Barcode Scanner (Optional) Smart Card Reader (Optional)
Standard Accessory	1 x Power Adapter
Environment
IP Rating	IP65
Drop Test	4-Feet Drop on Concrete Floor, MIL-STD-810G 516.6 Procedure IV
Certification	EN 60601, CE, FCC, VCCI, UKCA
Operating Temperature	0°C ~ 40°C
Storage Temperature	-20°C ~ 60°C
Relative Humidity	15% – 95% RH non-condensing
Warranty	2 Years
