WMA1562

15.6″ Smart Bedside Android Touch Panel PC

Radiology, Medical Cart, Bedside Terminal, HMI Controller, etc.

Category: Medical

Display Size	15.6"
Processor	Cortex-A72 RK3399 Quad-Core Processor
RAM	4GB LPDDR4
OS Support	Android 12

Datasheet

WMA1562

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
sales@dsl-industrialcomputing.co.uk

Display
Display Type	15.6” TFT LCD
Resolution	1920 x 1080
Brightness	300 nits
Touch Panel	10 Points Multiple PCAP touch
Aspect Ratio	16:9
System
CPU	Rockchip3399, Quad-Core A53, up to 1.4GHz, Dual-Core A72, up to 1.8GHz
GPU	Mali-T860MP4
Memory	4GB LPDDR4
Storage	64GB eMMC (32GB, 128GB optional) Support SSD hard disk (optional)
OS Support	Android 12

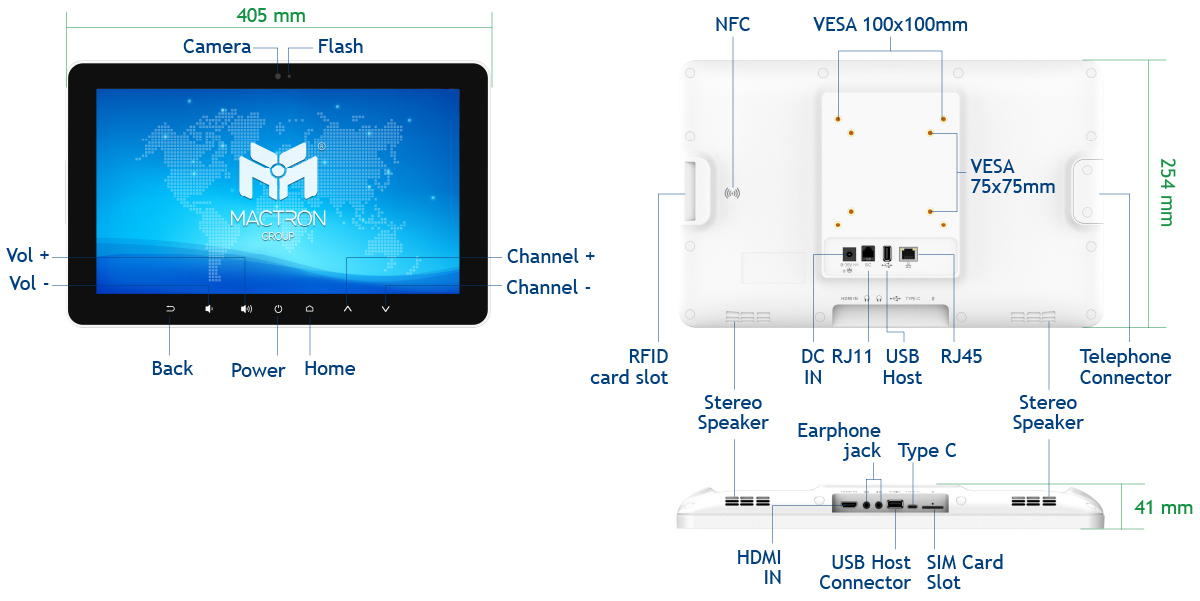

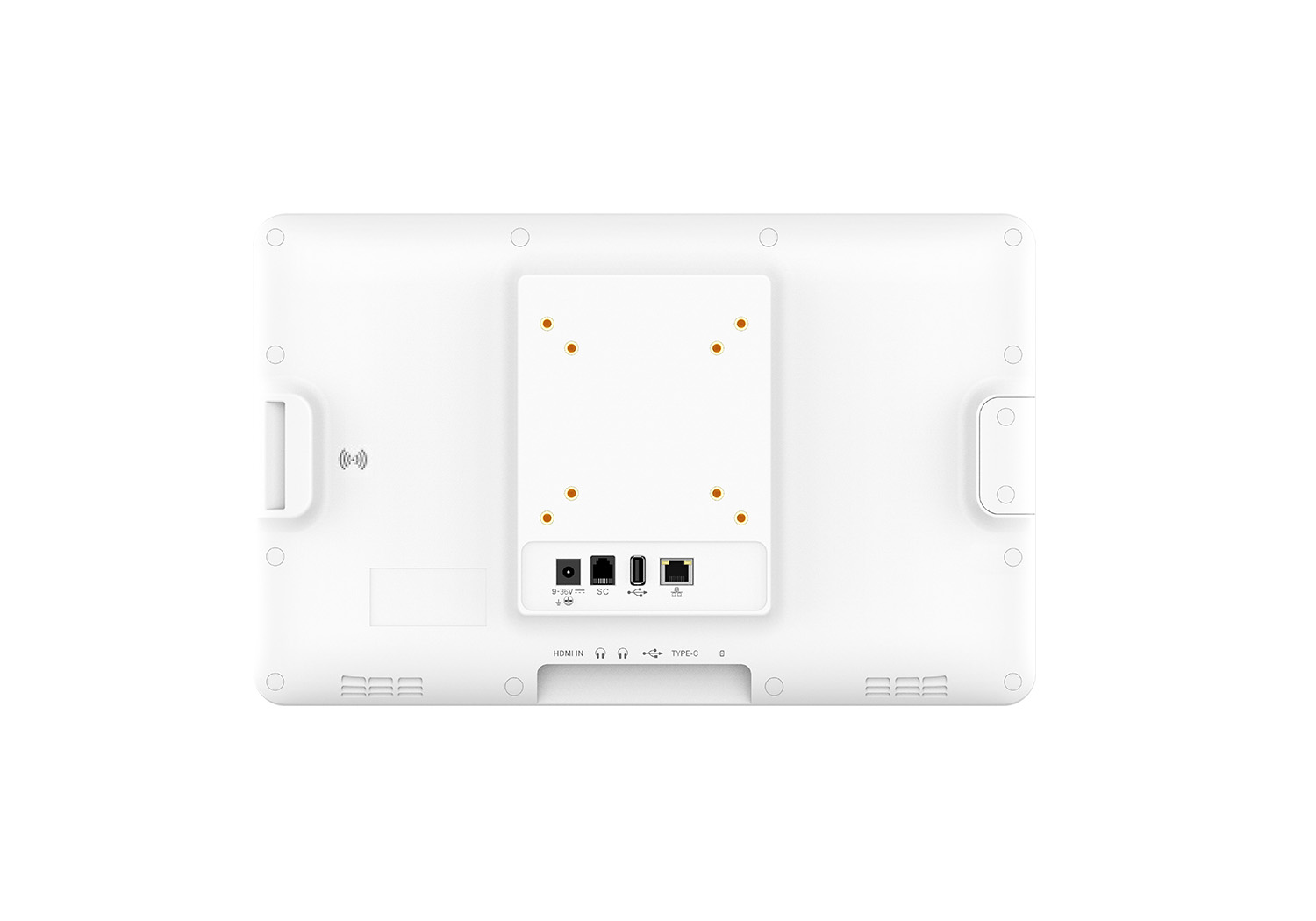

Terminal back I/O Ports	1 x DC-in 1 x USB2.0 1 x RJ-45 (Support PoE Function) 1 x RJ11

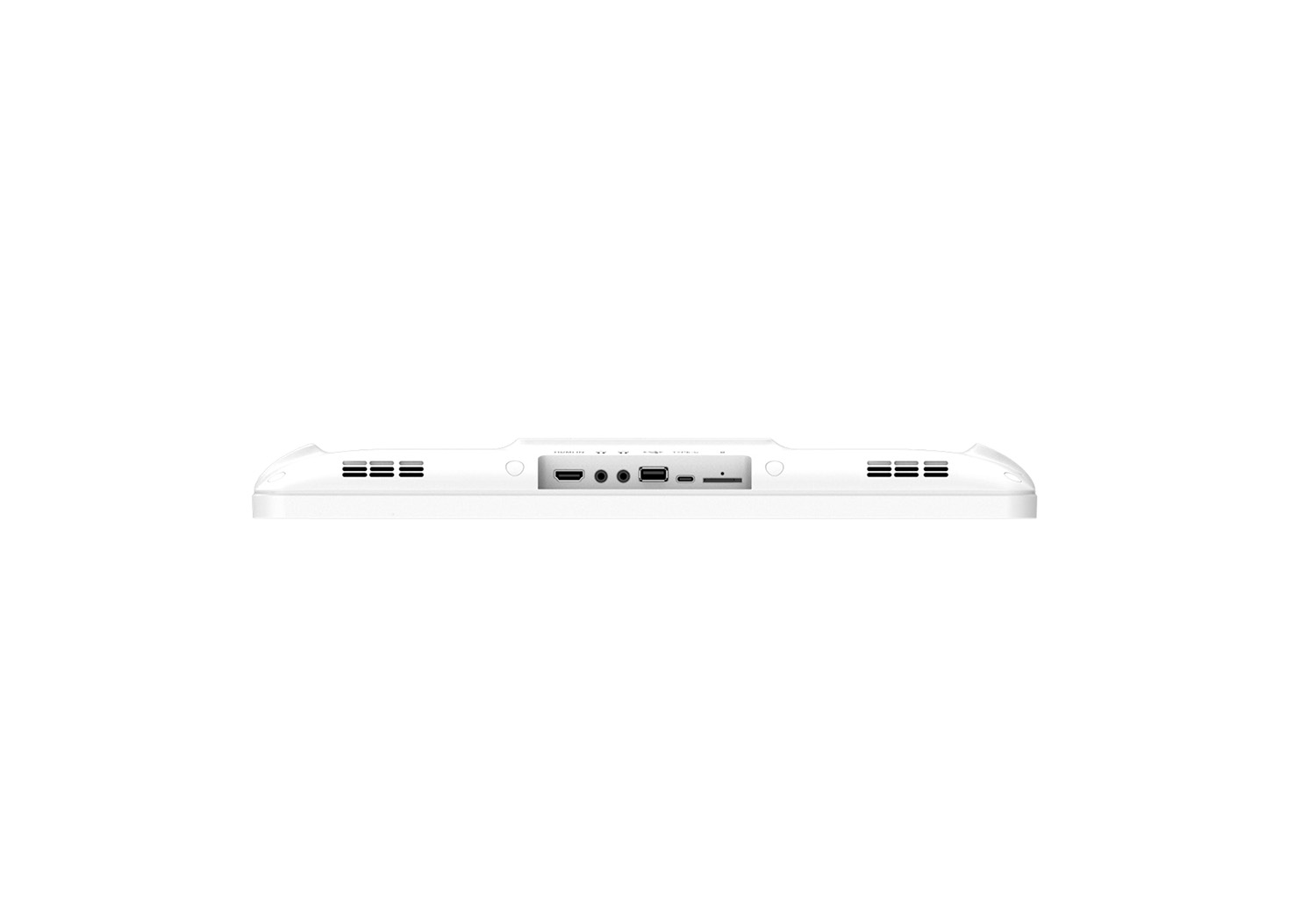

Terminal bottom I/O Ports	2 x Earphone Jack 1 x Reset 1 x USB3.0 1 x HDMI IN 1 x TYPE-C 1 x SIM Card Slot
Function Support	Support 802.11 a/b/g/n/ac Dual-band 2.4GHz & 5GHz Bluetooth 5.0 RFID G-sensor 4G (Optional)
Physical
Camera	Front: 13MP CMOS Camera, Support ATSC, DVB-T2, ISDB-T (optional)
Function Key	Power, Vol+, Vol-, Channel+, Channel-, Home, Return
Internal Speaker	2 x 8Ω/3W
Power Adapter	12V DC (9-36V)
Mounting	VESA 75 x 75 / 100 x 100 (mm)
Housing	Plastic

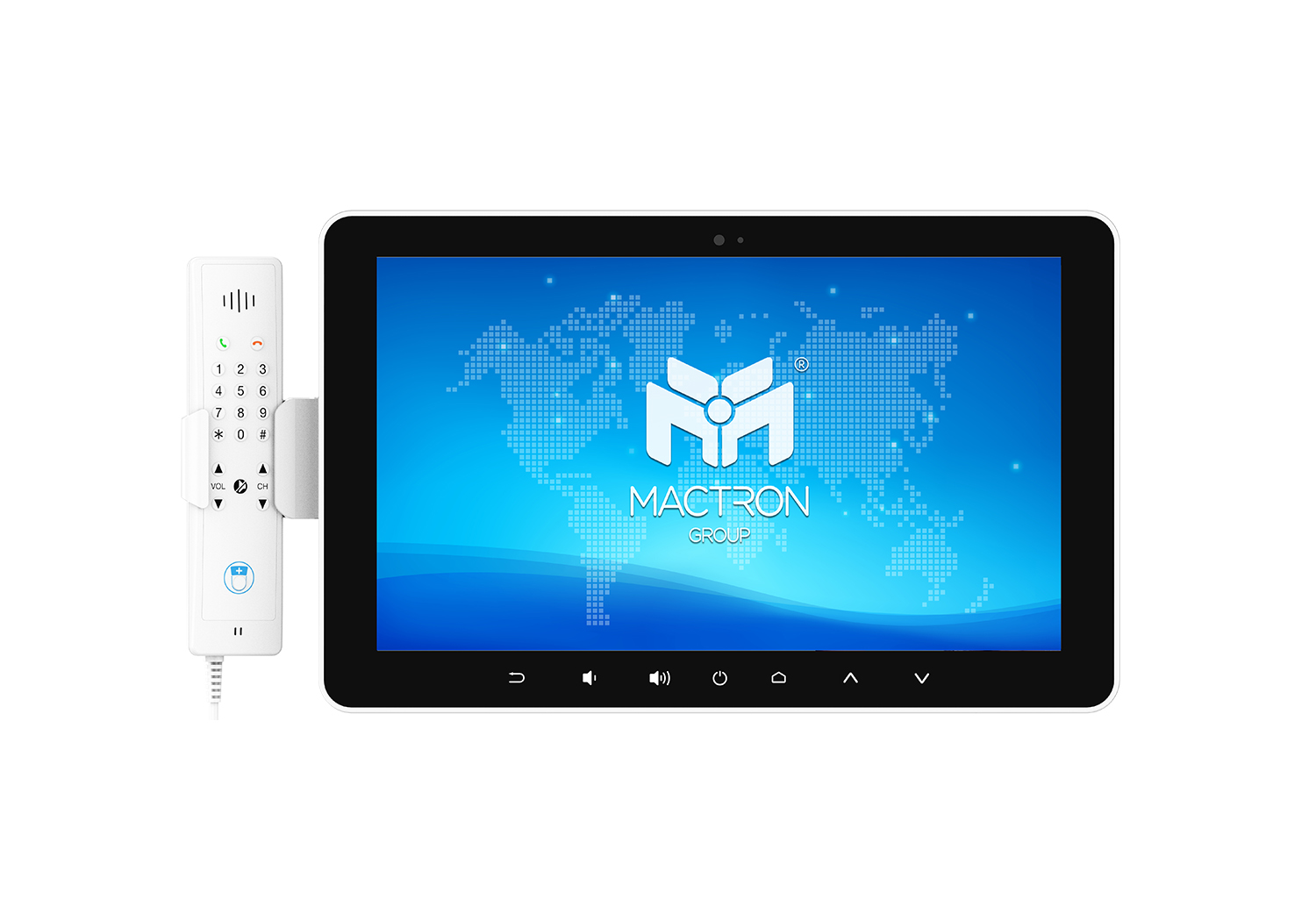

Standard Accessory	Power Adapter (ADA12D0) Handset (AHAND01)
Product Dimension	405(L) X254(W) x 41(H) mm
Product Weight	1.98 kg
Environment
Rugged Feature	Front IP65
Certification	CE, UKCA
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
Relative Humidity	80% RH non-condensing
