- 13.3-inch Windows System with Intel® Core i5-1235U Processor
- 10-point capacitive multi-touch panel with FHD Display
- Medical-Grade Antibacterial Housing
- Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GNSS
- Rich I/O Ports such as USB3.0, HDMI, RS-232, GbE LAN
- 1.2m drop resistant & MIL-STD-810G certified
Medical
MMS1337
MMS1337
13.3″ Medical Grade Windows Mobile Tablet PC
- 13.3-inch Windows System with Intel® Core i5-1235U Processor
- 10-point capacitive multi-touch panel with FHD Display
- Medical-Grade Antibacterial Housing
- Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GNSS
- Rich I/O Ports such as USB3.0, HDMI, RS-232, GbE LAN
- 1.2m drop resistant & MIL-STD-810G certified
Applications:
Medical & Healthcare, Daily Patient Management, Remote Mobile Medical Service, Medicine Management, Emergency Field
Quick Spec
| Display Size | 13.3" |
|---|---|
| Processor | Intel Core i5 1235U |
| RAM | LPDDR5 x 16GB |
| Operating System | Windows® 10 IoT Enterprise(LTSC), Windows® 11 IoT Enterprise(GAC) |
Datasheet
MMS1337
| Display | |
|---|---|
| Display Type | 13.3″ IPS LCD |
| Resolution | 1080 x 1920, 9:16 Aspect Ratio |
| Brightness | 450 nits |
| Touch Panel | 10-point Capacitive multi-touch screen |
| System | |
| CPU | Intel® Core™ i5-1235U Processor Intel® Core™ i7-1255U processor (Optional) |
| GPU | Intel® Iris® Xe Graphics |
| Memory | LPDDR5 x 16GB |
| Storage | 256GB/ (Optional 512GB) |
| Operating System | Windows® 10 IoT Enterprise(LTSC), Windows® 11 IoT Enterprise(GAC) |

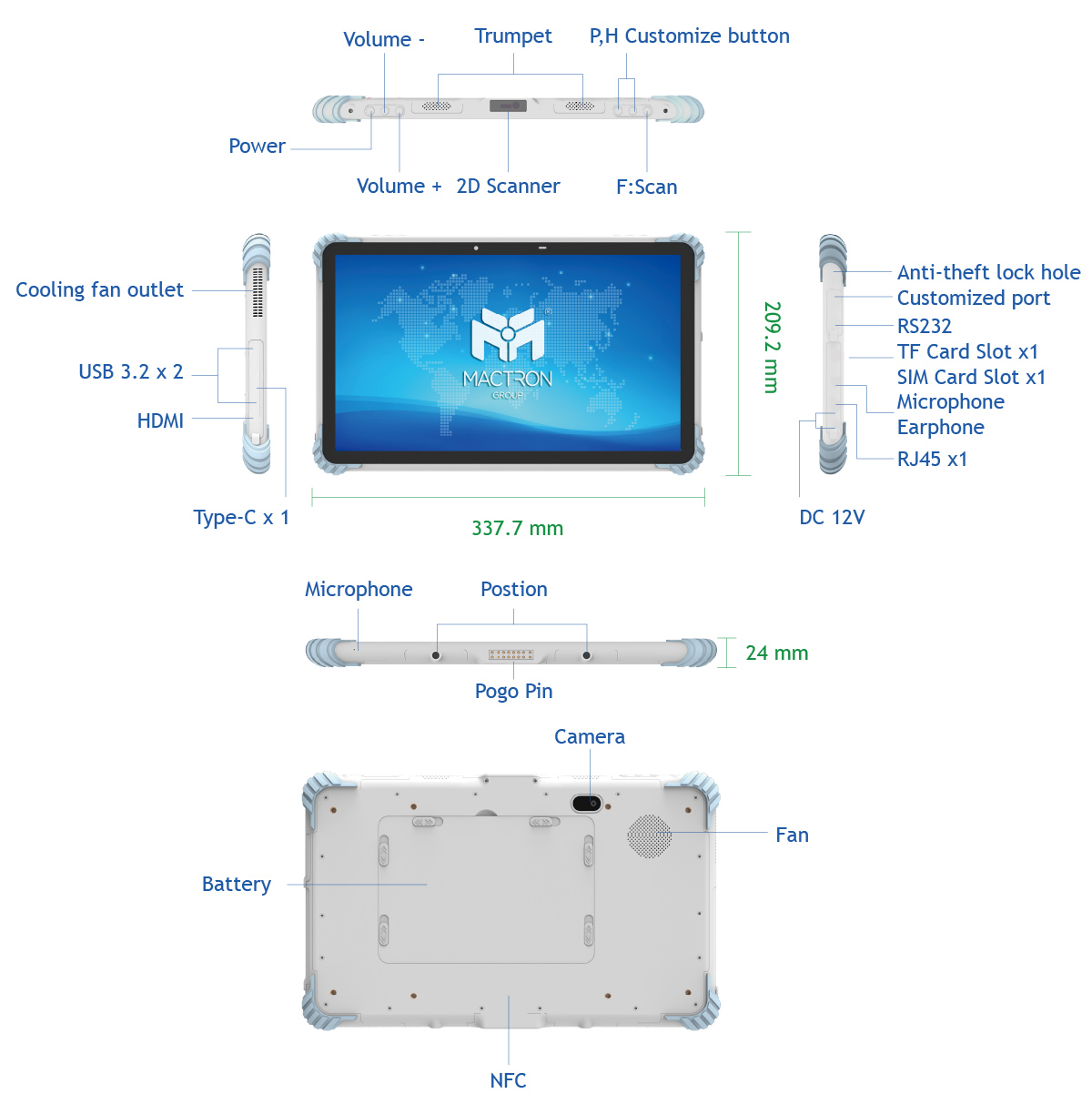

| I/O Ports | 1 x HDMI Type-A 2 x USB 3.2 Type A 1 x Type-C (Support fast charging) 1 x Aviation interface: customized interface & RS232 (RS232 not fully functional, only TX RX GND) Card slot: SIM card slot+TF card slot 1 x Headphone Jack (3.5mm standard headphone interface) 1 x GbE RJ45 1 x DC-In jack (4.0mm) 1 x Anti-theft lock hole 1 x 16-pin Pogo Pin |
| WiFi | Intel® Wi-Fi 6 AX201 (802.11 ax) |
| Bluetooth | Bluetooth® 5.2 |
| 4G/5G | 4G LTE |
| GPS | GPS, BDS, GLONASS |
| Data Collection | NFC Module (13.56 MHz, Distance: 1-3cm) Barcode Scanner Module |
| Physical | |
| Camera | 5.0 MP Front-Facing Camera 8.0 MP Rear Camera |
| Audio | 2 x 8Ω /0.8W |
| Color | White |
| Dimension | 337.7 mm (L) x 209.2 mm (W) x 24 mm (H) |
| Weight | 1450g |
| Button | 1 x Power 1 x Volume + 1 x Volume – 2 x User-definable Key (P&H) (Default No Functionality) ‘”F” for Barcode Scan |
| Sensors | Light sensor, Acceleration sensor, Gravity sensor |
| Battery | 7.6V/8000mAh |
| Power Adapter | USB Type-C Power Adapter (12V/3A) |
| Standard Accessory | 1 x Power Adapter 1 x Carry strap 1 x Wrist strap |
| Optional Accessory | Removable Battery: Li-Ion, 7.6V, 6000mAh |
| Packing List | |
| Accessories | 1 x Power Adapter 1 x Carry strap 1 x Wrist strap Screw |
| Product Dimension | 330 mm (L) x 205 mm (W) x 19.5 mm (H) |
| Product Weight | 1450g |
| Environment | |
| IP Rating | IP65 |
| Drop Test | 1.2m drop resistance |
| Certification | CE/ FCC/ MIL-STD-810G |
| Operating Temperature | -20°C ~ 55°C |
| Storage Temperature | -25°C ~ 80°C |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |
