MMS1221

12.2″ Medical Rugged Windows Mobile Tablet PC

Medical & Healthcare, Daily Patient Management, Remote Mobile Medical Service, Medicine Management, Emergency Field, etc.

Category: Medical

Datasheet

MMS1221

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
sales@dsl-industrialcomputing.co.uk

Display
Display Type	12.2″ IPS TFT LCD
Resolution	1920 x 1200
Aspect Ratio	16:10
Brightness	650 nit
Touch Panel	10 Points Projected Capacitive Touch
System
Processor	Intel^® Celeron^® N5100 Quad Core
GPU	Intel® UHD Graphics
Memory	LPDDR4 8 GB
Storage	128 GB

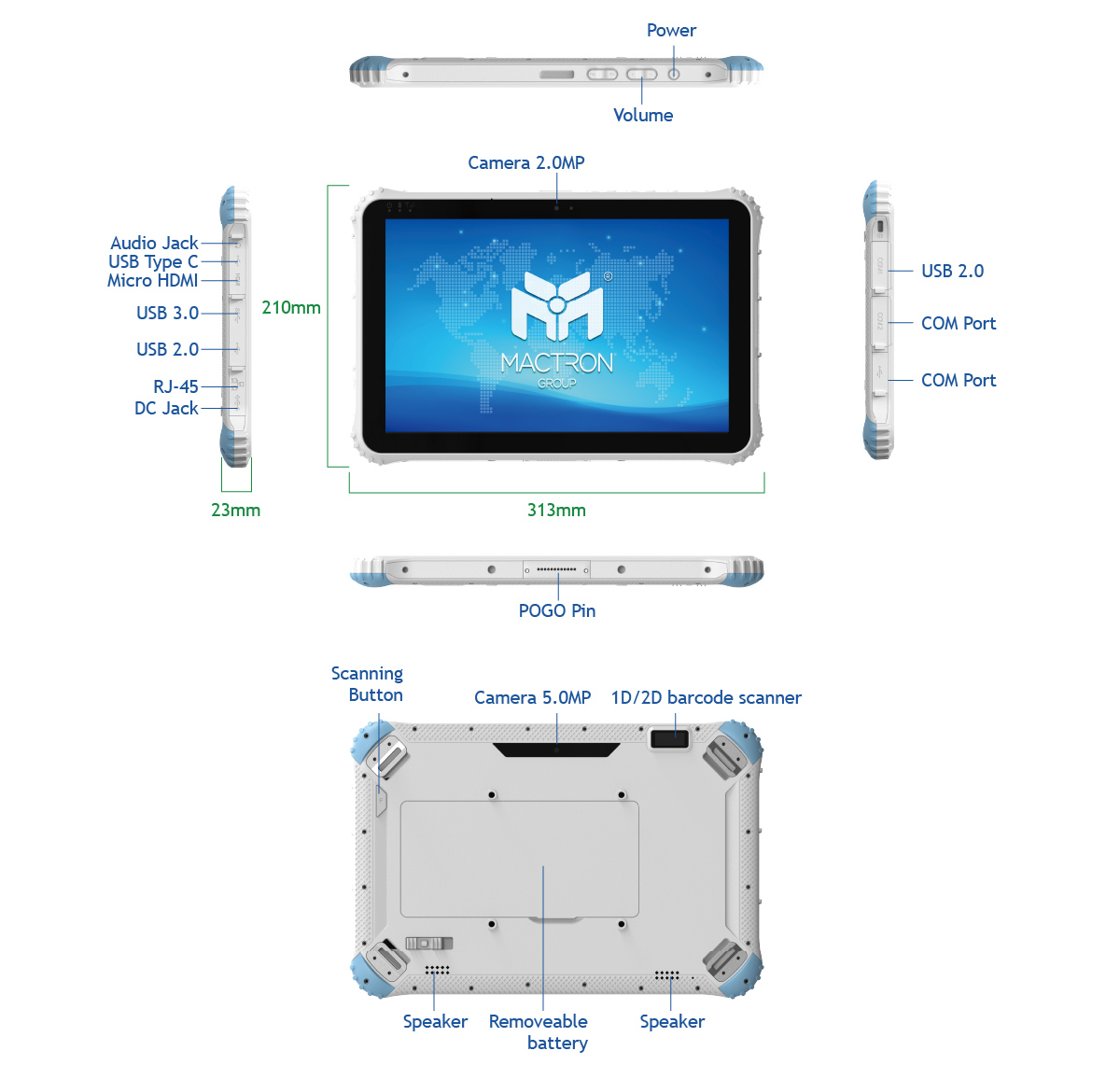

I/O Ports	1 x USB 2.0 Type A 2 x USB 3.0 Type A 1 x USB Type C 1 x LAN 1 x HDMI 1.4a Type C 1 x COM (RS232) 1 x COM (RS485) 1 x 3.5mm standard earphone jack 1 x TF slot (Max.128GB) (SDHC/SDXC) 1 x SIM slot 1 x DC jack 1 x 12pin POGO pin
Operating System	Windows 11
Physical
Camera	Front Camera : 5.0 MP Rear Camera : 8.0 MP
Speaker	2 x 0.8W
Color	White
Dimensions (WxHxD)	319.6 x 216 x 24.3 mm
Weight	1500 g
Button	1 x Power On/Off 1 x Volume + 1 x Volume – 1 x Scanning 1 x Custom
Sensor	G-sensor
Battery	1000mAh/7.4V (Built-in); 6300mAh/7.4V (Removable)
Using Time	9 hrs (Default 50% Volume, 200 nits, Play 1080 HD Video)
Power Adapter	19 V/3.42 A
Communication	WLAN – 802.11 a/b/g/n/ac, 2.4GHz/5.8GHz WWAN – 4G Bluetooth 5.0 GNSS – GPS, Glonass
Data Collection	NFC Module Barcode Scanner Module (Optional)
Standard Accessory	1 x Hand Strap 1 x Power Cable
Environment
IP Rating	IP65
Drop Test	1.22 m
Certification	CE/ FCC Part 15 Class B /MIL-STD-810G/ IEC 60601-1
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-30°C ~ 70°C
Relative Humidity	95% (non-condensing)
Warranty	2 Years
