WMA1565

15.6″ Smart Bedside Android Touch Panel PC

Radiology, Medical Cart, Bedside Terminal, HMI Controller.

Category: Medical

Datasheet

WMA1565

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
sales@dsl-industrialcomputing.co.uk

Display
Display Type	15.6” IPS LCD
Resolution	1920 x 1080
Brightness	250 nits
Touch Panel	10 Points Multiple PCAP touch
Contrast Ratio	800:1
View Angle(°)	85/85(L/R), 85/85(U/D)
System
CPU	Qualcomm ARM KryoTM260 processor, Octa-core 64bit
GPU	Adreno TM 610
Memory	4G DDR4 (default) / 8GB (optional)
Storage	64G UFS (default) / 128GB (optional)
OS Support	Android 13
Function Support	Support IEEE 802.11 a/b/g/n/ac 2.4/5GHz Bluetooth 5.0 4G (optional) Light Sensor Full-function Handset with remote control Combo smart card reader & Mifare RFID (optional) 1 x Reading Lamp
Camera	Front: 16MP CMOS Camera

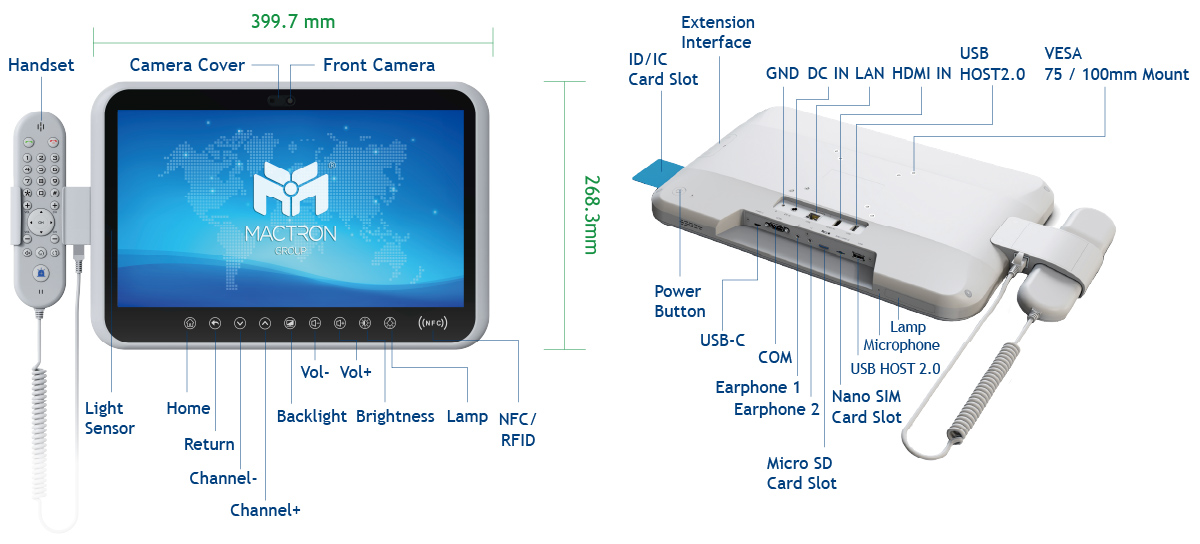

I/O Ports	2 x Earphone Jack 1 x Handset Jack 2 x USB HOST 2.0 1 x USB Type C 1 x Micro SD Card Slot 1 x Nano SIM Card Slot 1 x HDMI In 1 x RS232 1 x Internal Microphone 1 x RJ45 100M(PoE++, 25W, optional)
Function Key	Brightness, Home, Return, Channel-, Channel+, Backlight, Vol-, Vol+, Lamp
Physical
Internal Speaker	1 x 4Ω/3W
DC In	9-36V DC
Power Adapter	12V /3A
Mounting	VESA 75 x 75/100 x 100(mm)
Housing	Plastic
Packing List
Standard Accessory	Power Adapter Handset
Product Dimension	399.7 × 268.3 × 39 mm
Product Weight	2.3 kg
Environment
Rugged Feature	Front IP65
Certification	IEC 60601-1,EN 60601-1,CE,FCC, ISO 22196
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Relative Humidity	80% RH non-condensing
