AEX-2410

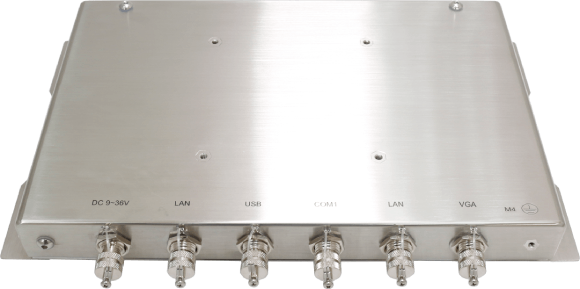

Fully IP66 ATEX compliant industrial PC housed in a compact, 316 grade stainless-steel enclosure. Powered by the Intel Celeron N2930 perfect for the less demanding applications

Categories: Industrial, Industrial PC, Industrial PCs

Quick Spec

Processor	Intel Celeron N2930
RAM	4GB – 8GB
IP Rating	Fully IP66
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Mounting Type	Flange (wall)/VESA

Datasheet

AEx-2410_ds.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

Intel Celeron Processor N2930
SUS316 Stainless Steel
Total IP66 Grade with M12 Waterproof Connector
Variety of IO applications
WLAN for Option
Wide range DC 9~36V Power Input
Support Panel Mount & VESA Mount
Fanless Design
ATEX Zone2, IECEx and C1D2 Certified

Specification

Processor	Intel Celeron N2930 CPU onboard
Memory	4GB DDR3L on board, 8GB option

I/O

USB	1 x M12 8pin for 2 x USB 2.0 with Metal Waterproof CAP
Serial/Parallel	1 x M12 8pin for COM1/RS-232/422/485 (Default RS-232) with Metal Waterproof CAP
LAN	1 x M12 8pin for LAN with Metal Waterproof CAP
Display Interface	1 x M12 12pin for VGA with Metal Waterproof CAP
Power	1 x M16 3pin for DC Power with Metal Waterproof CAP
Optional	1 x optional blank M12 connectors with waterproof cap for selecting one from the following options: 1 x M12 8pin for 1 x USB 3.0 1 x M12 8pin for 1 x RS-232 1 x M12 8pin for 2x USB2.0

Storage

1 x 2.5” SATA HDD or SSD space
1 x Internal SD Card slot on board

Expansion

On Board Expansion

1 x Mini PCIe Full size slot (For option WLAN/BT module)

Power

Power Input

DC 9~36V

Mechanical

Construction	316 Stainless Steel Chassis
Mounting	VESA Mount 100 x100 / Wall Mount
IP rating	Total IP66 6 sides

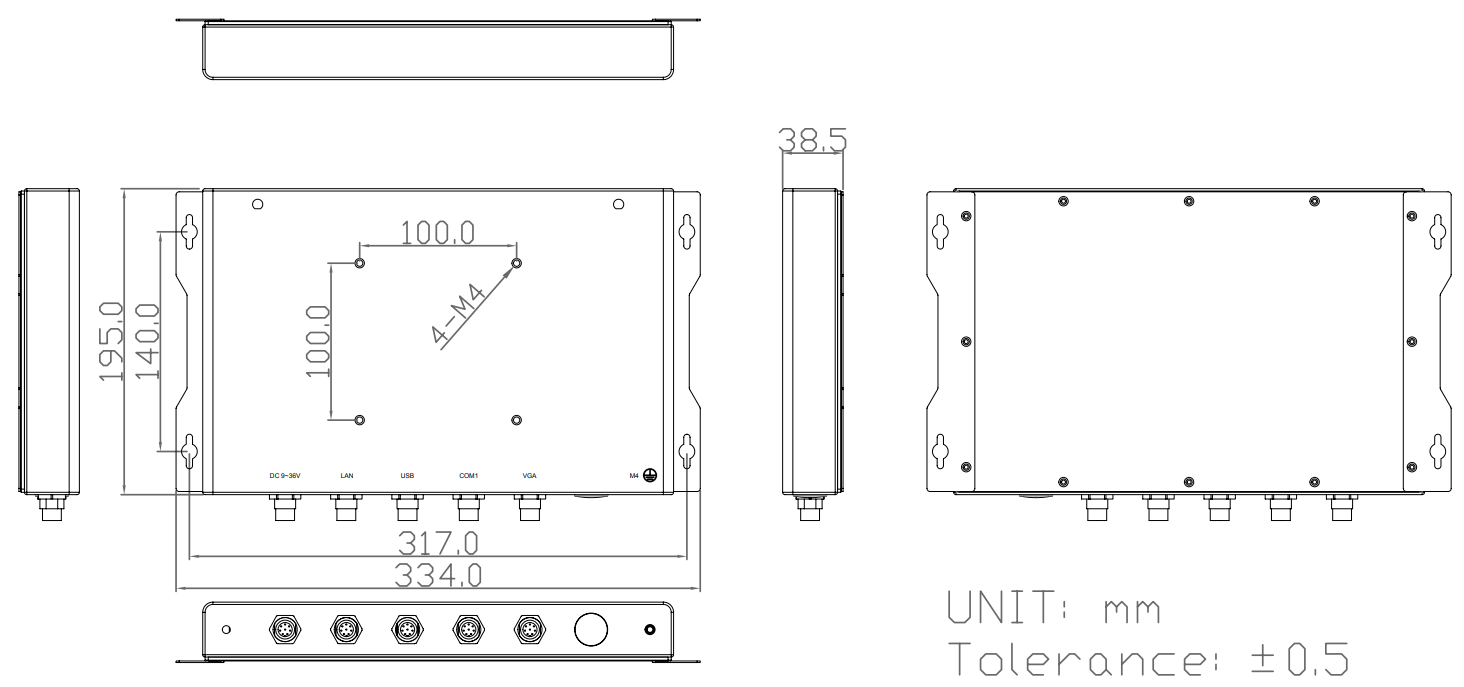

Dimension	334 x 195 x 38.5mm
Net Weight	4kg

Environmental

Operating Temperature	-20~60°C
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Linux, Ubuntu
