ACS-2311

The slim ACS-2311 Industrial PC is a budget friendly, fanless system powered by the Intel Celeron N2930 CPU. Perfect for wall box/cabinet installations due to the DIN rail mount option

Quick Spec

Processor	Intel Celeron N2930
RAM	4GB – 32GB
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Mounting Type	Flange (wall)/DIN Rail

Intel Celeron Processor N2930 1.83GHz
Fanless and extendable I/O design
1 x 204-pin SO-DIMM slot up to 8GB DDR3L 1333MHz
Wide range DC 9~36V power input
1 x 2.5” SATA2 HDD space

Specification

Processor	Intel Celeron Processor N2930 1.83GHz
Memory	1 x 204-pin SO-DIMM slot up to 8GB DDR3L 1333MHz

I/O

USB	2 x USB 3.0 type A, 4 x USB 2.0 type A
Serial/Parallel	1 x RS-232/422/485 DB-9, COM1, default RS-232 2 x RS-232 DB-9, COM2 and COM3
Audio	1 x Line-out
LAN	2 x GbE LAN RJ-45
Display Interface	1 x VGA, 1 x HDMI
Power	1 x 3-pin DC power input terminal, 1 x power button with light
Options (either one)	1 x RS-232 DB-9, COM3 1 x GPIO 8-bit digital I/O(4 x DI, 4 x DO)

Storage

1 x 2.5” SATA2 HDD space (easy accessible)

Expansion

Expansion Slot

1 x Mini-PCIe slot full size
1 x Mini-PCIe slot full size (shared with mSATA)

Power

Power Input

DC 9~36V

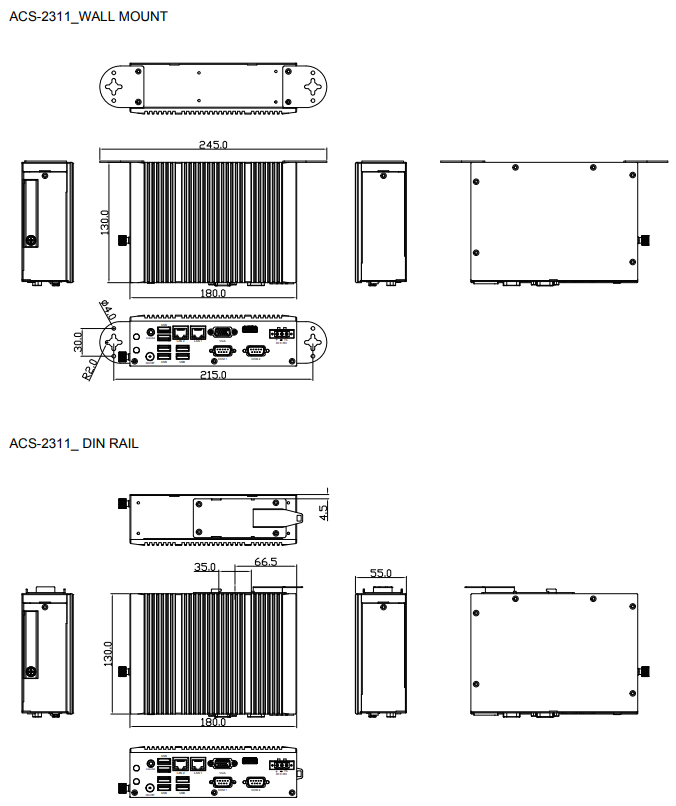

Mechanical

Construction	Plating titanium gray aluminum heatsink and black steel chassis
IP Rating	IP30
Mounting	Wall Mount, Din Rail for option
Dimension	180 x 130 x 55 mm
Net Weight	1.3kg
