ACS-2312

The expandable ACS-2312 Industrial PC is a budget friendly, fanless system powered by the Intel Celeron N2930 CPU. Perfect for installations where PCIe expansion cards are needed

Category:

Quick Spec

Processor

Intel Celeron N2930

RAM

4GB – 8GB

OS Support

Windows 10 Pro/IoT, Linux, Ubuntu

Mounting Type

Flange (wall)

Need Help? Contact Us


01462 374102

[email protected]
  • Intel Celeron N2930(1.83GHz) Processor
  • 2 x 204-pin DDR3L SO-DIMM slot up to 8GB
  • Easy Accessible Storage Design
  • Fanless Design
  • Multi-Expansion slot
  • Wide Range DC 9~36V Power Input

ACS-2312

Specification
Processor Intel Celeron Processor N2930 1.83GHz
Memory 2 x 204-pin DDR3L SO-DIMM slot up to 8GB
I/O
USB 4 x USB 3.0 type A
Serial/Parallel
  • 1 x RS-232/422/485 DB-9, COM1, default RS-232
  • 2 x RS-232 DB-9, COM2 and COM3
Audio
  • 1 x Line-out
  • 1 x Mic-in
LAN 2 x GbE LAN RJ-45
Display Interface 1 x VGA, 1 x HDMI
Power 1 x 3-pin DC power input terminal, 1 x 2-pin power switch
Rear I/O
  • 1 x RS-422/485 DB-9, COM3, default RS-422
  • 1 x RS-232/422/485 DB-9, COM4, default RS-232
  • 4 x USB 2.0 Type A
  • 1 x 8-bit GPIO (4 x DI, 4 x DO) Digital I/O, 1-5V, 1-GND
  • 1 x on/off power button
Storage
Storage 1 x 2.5″” SATA2 HDD bay for SATA2 HDD (Easy Accessible)
Expansion
Expansion Slot
  • 1 x Mini-PCIe slot full size
  • (USB2.0, LPC, SMBus Only, PCIe signal shared with riser expansion slot, selected by BIOS)
  • 2 x PCIe x1 slot via TB-526E12 Default
Power
Power Input DC 9~36V
Mechanical
Construction Plating titanium gray aluminum heatsink and black steel chassis
IP Rating IP20
Mounting Wall Mount

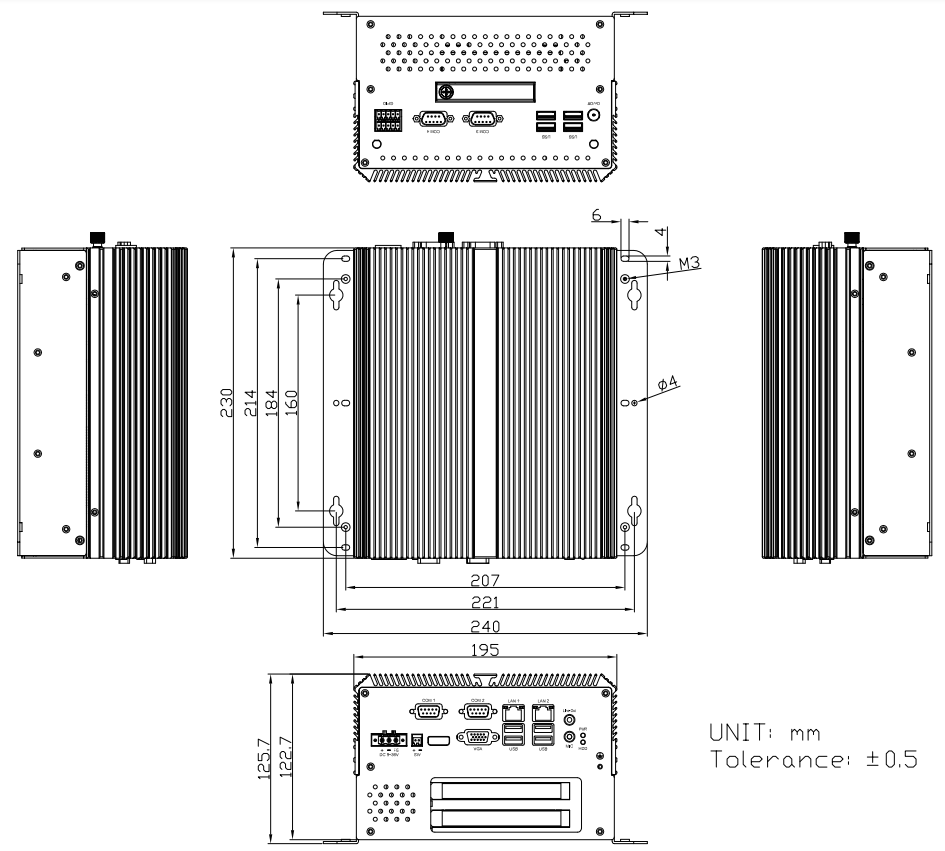

Dimension 230 x 195 x 125.7 mm
Net Weight 4.3kg
Environmental
Operating Temperature 0~50°C/ -20~60°C(option)
Certificate CE/FCC Class A
Operating System Support Windows 10 Pro/IoT, Linux, Ubuntu

ACS-2312_V1.4.pdf
