- Intel Celeron Processor N2930 1.83GHz
- Fanless and extendable I/O design
- 1 x 204-pin SO-DIMM slot up to 8GB DDR3L 1333MHz
- Wide range DC 9~36V power input
- Ultra Slim Design
- 1 x 2.5” SATA2 HDD Space
Industrial, Industrial PC, Industrial PCs
ACS-2310_V1.5.pdf
ACS-2310
The slim ACS-2310 Industrial PC is a budget friendly, fanless system powered by the Intel Celeron N2930 CPU. Perfect for installations where space is limited
Quick Spec
| Processor | Intel Celeron N2930 |
|---|---|
| RAM | 4GB – 32GB |
| OS Support | Windows 10 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Flange (wall) |
Datasheet
ACS-2310_V1.5.pdf
Specification
| Processor | Intel Celeron Processor N2930 1.83GHz |
| Memory | 1 x 204-pin SO-DIMM slot up to 8GB DDR3L 1333MHz |
I/O
| USB | 2 x USB 3.0 type A, 4 x USB 2.0 type A |
| Serial/Parallel |
|
| Audio | 1 x Line-out |
| LAN | 2 x GbE LAN RJ-45 |
| Display Interface | 1 x VGA, 1 x HDMI |
| Power | 1 x 3-pin DC power input terminal, 1 x power button with light |
Storage
| Storage | 1 x 2.5” SATA2 HDD space |
Expansion
| Expansion Slot |
|
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | Plating titanium gray aluminum heatsink and black steel chassis |
| IP Rating | IP30 |
| Mounting | Wall Mount |

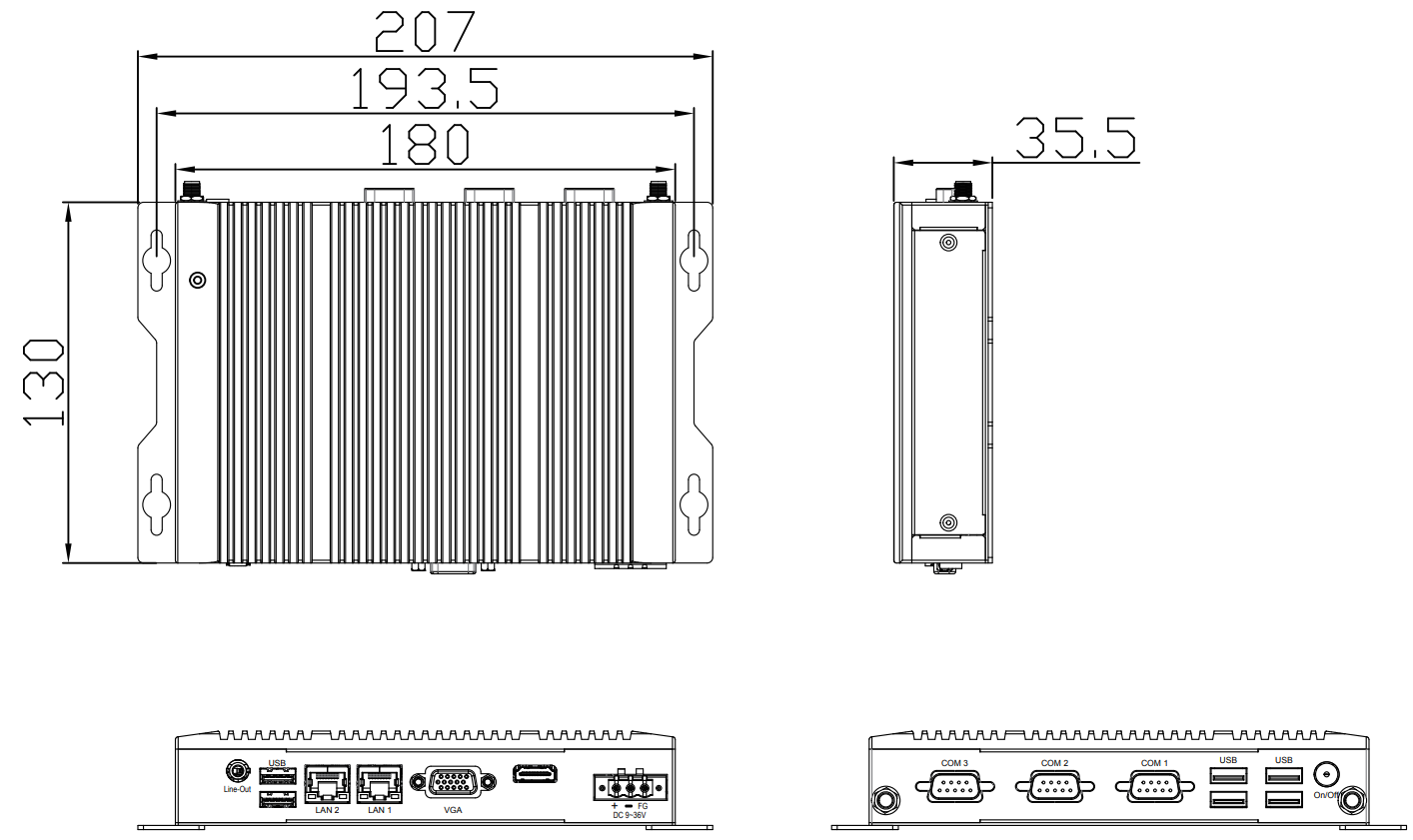

| Dimension | 207 x 130 x 35.5mm |
| Net Weight | 1kg |
Environmental
| Operating Temperature | 0~50°C/ -20~60°C(option) |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Linux, Ubuntu |
