WMP2157

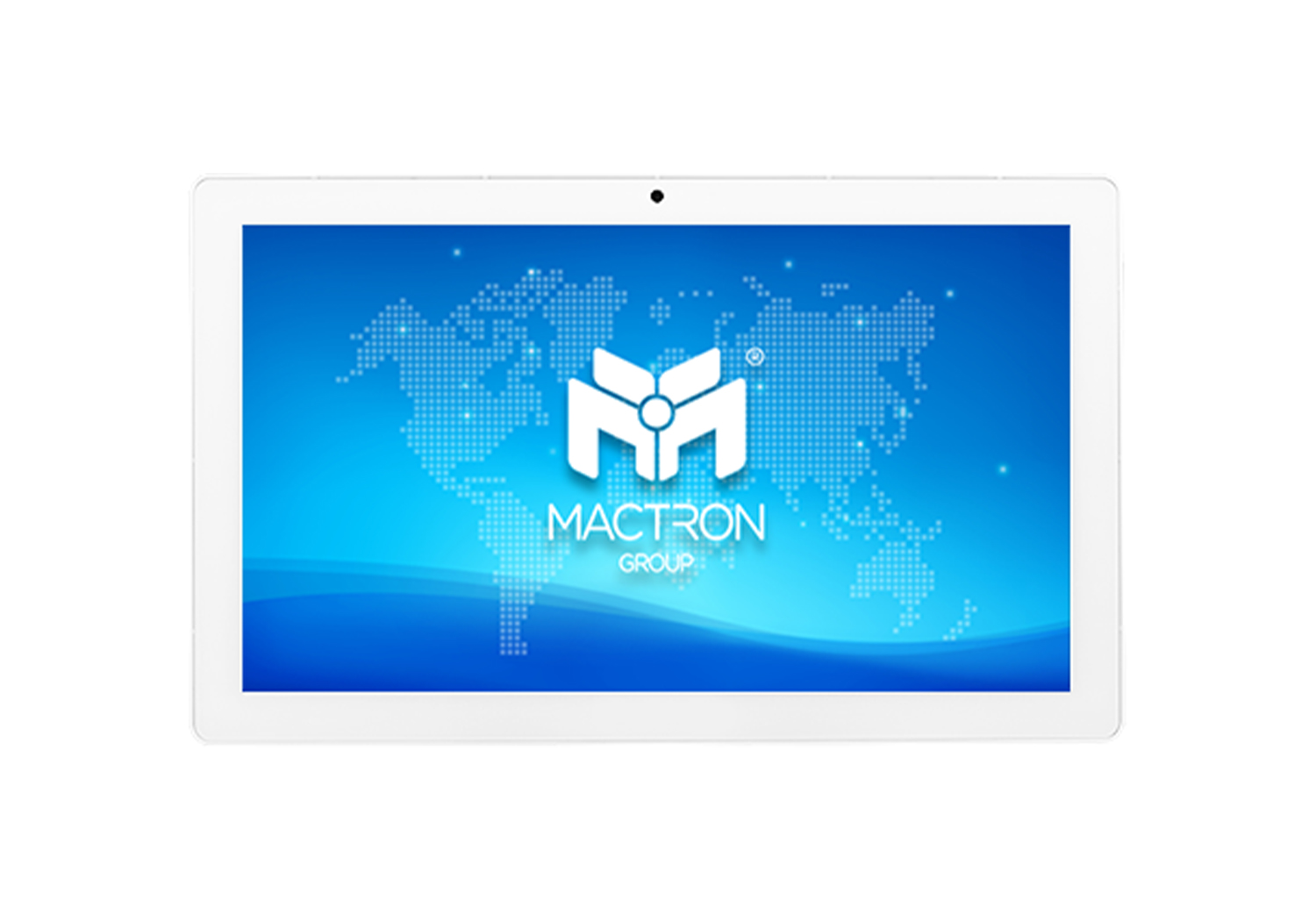

21.5″ Medical Premium Windows Touch Panel PC

21.5″ Windows System with Intel 13^th / 12^th / 8^th Core^TM i Processor
Fanless Aluminum Die Casting Housing and White Appearance Design
Magnetic IO Port Cover for Ease Maintenance
Fanless and Front Panel IP65 Design
Rich & Flexible I/O Port Design
IEC60601 Medical Certified

Applications:

Medical & Healthcare, Daily Patient Management, Remote Mobile Medical Service, Medicine Management, Emergency Field

Category: Medical

Quick Spec

Display Size	21.5"
Processor	Intel Core i5
RAM	1 x SO-DIMM, DDR4 8GB
Operating System	Windows 10 IoT LTSC, Windows 11, Linux

Datasheet

WMP2157

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
sales@dsl-industrialcomputing.co.uk

21.5″ Windows System with Intel 13^th / 12^th / 8^th
Core^TM i Processor
Fanless Aluminum Die Casting Housing and White Appearance Design
Magnetic IO Port Cover for Ease Maintenance
Fanless and Front Panel IP65 Design
Rich & Flexible I/O Port Design
IEC60601 Medical Certified

Display
Display Type	21.5” TFT LCD
Resolution	1920 x 1080
Aspect Ratio	16:9
Brightness	500 nits
Touch Panel	True-Flat 10-Points Projected Capacitive Touch
Viewing Angle	-89° ~ 89°(H) ; -89° ~ 89°(V)
Main System
CPU	Intel^® Core™ i5-8365UE Processor (Optional: i3-8145UE / Celeron^® 4305UE, MOQ required)	Intel^® Core™ i5-1245UE Processor (Optional: i7-1265UE / i3-1215UE / Celeron^® 7305E, MOQ required)	Intel^® Core™ i5-1335U Processor (Optional: i7-1355U / i3-1315U , MOQ required)
GPU	Intel^® UHD Graphics 620 for Core-I Processor	Intel^® Iris^® Xe Graphics eligible for Core-i5 & Core-i7 Processor
	Intel^® UHD Graphics 610 for Celeron Processor	Intel^® UHD Graphics for Core i3 & Celeron Processor	Intel^® UHD Graphics for i3 Processor
Memory	1 x SO-DIMM, DDR4 8GB, 2400 MHz (Max.32GB) 1 x SO-DIMM, DDR4, 2400 MHz (Max.32GB)	1 x SO-DIMM, DDR5 8GB, 4800 MHz (Max.32GB) 1 x SO-DIMM, DDR5, 4800 MHz (Max.32GB)	1 x SO-DIMM, DDR5 8GB, Up to 5200 MHz (Max.32GB) 1 x SO-DIMM, DDR5, Up to 5200 MHz (Max.32GB)
Storage	1 x M.2 2280 Slot, 256GB (Max.1TB) 1 x 2.5″ SSD SATA (Max.1TB)

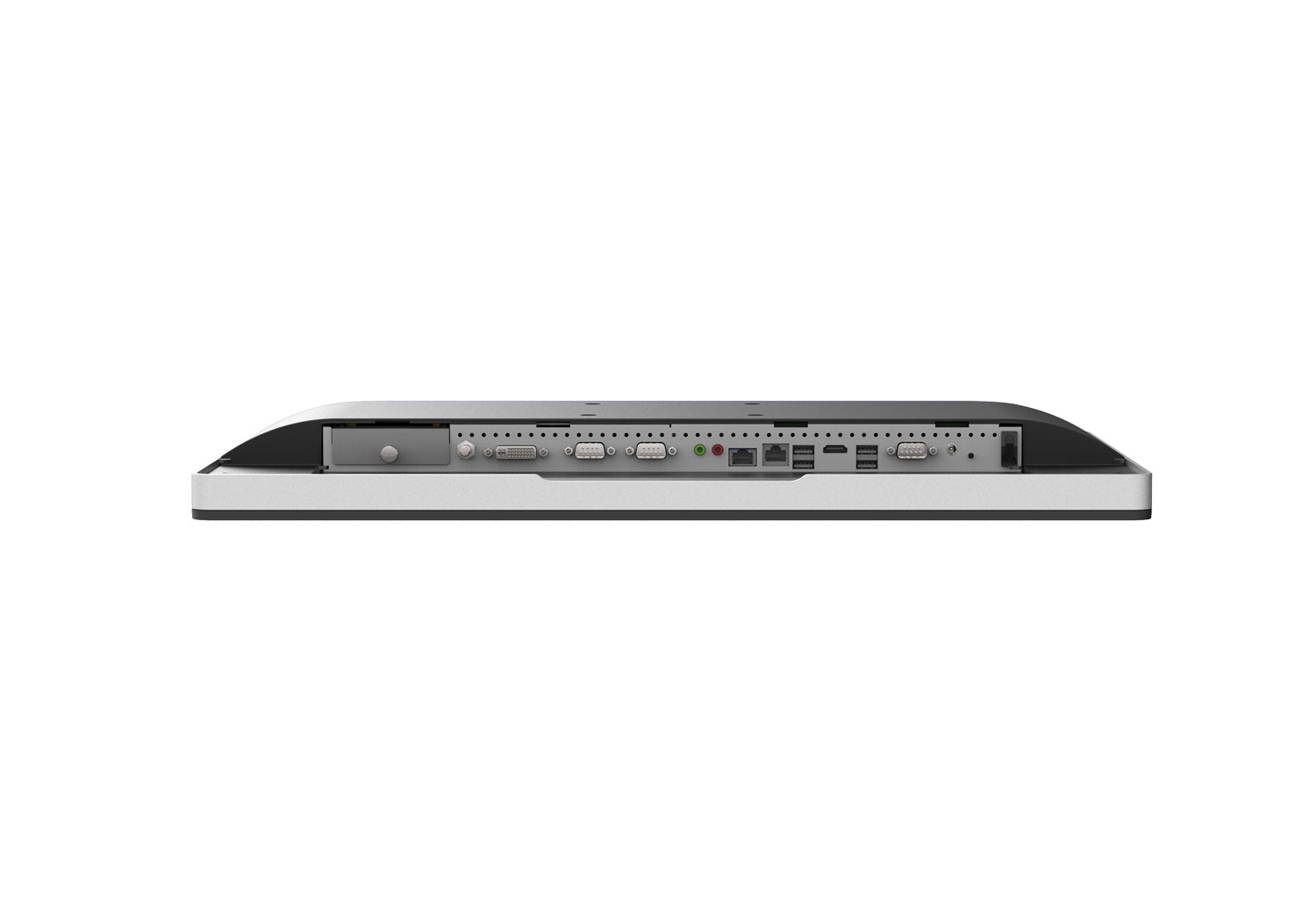

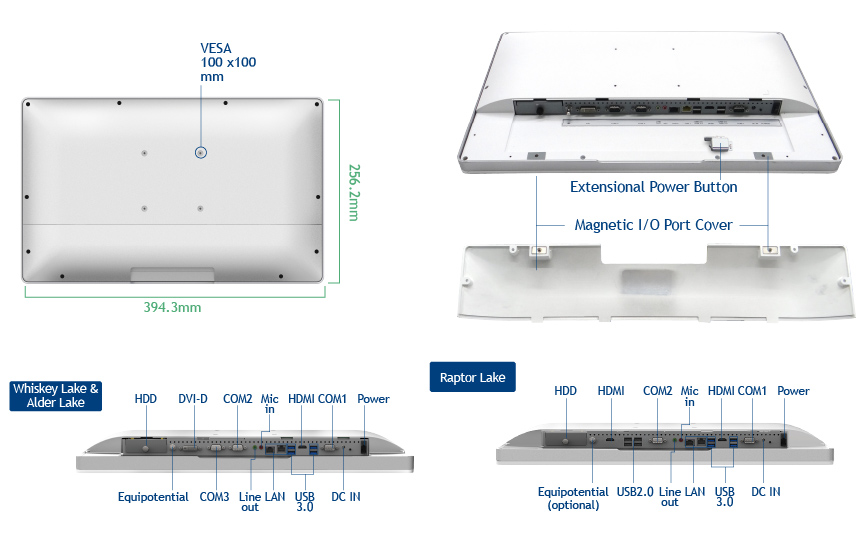

IO Ports
	4 x USB 3.0 (Type-A)		4x USB 3.2 Gen2 (Type A)
	1 x DB9 COM (RS232)		2 x DB9 COM (RS232)
	2 x DB9 COM (RS232 / RS422/ RS485)		4 x USB 2.0
	2 x LAN （1 x Intel^® I211, 1 x Intel^® I219LM）	2 x 2.5GbE LAN（1 x Intel^® I226-V, 1 x Intel^® I226-LM（Support Wake On LAN））
	31 x HDMI 2.0, 4096×2160@60Hz
	1 x DVI-I		1 x HDMI 2.0
	1 x Mic-in
	1 x Line-out
	1 x Power Jack support 9~36V DC-in
	1 x Power On/Off Button
	1 x Power switch for Power On/Off
Communication	WLAN : IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz (Internal Antenna) Bluetooth 4.2
Operating System	Windows 10 IoT LTSC, Windows 11, Linux
Physical
Camera	Front Camera : 2.0 MP
Audio	2 x 2W Speaker

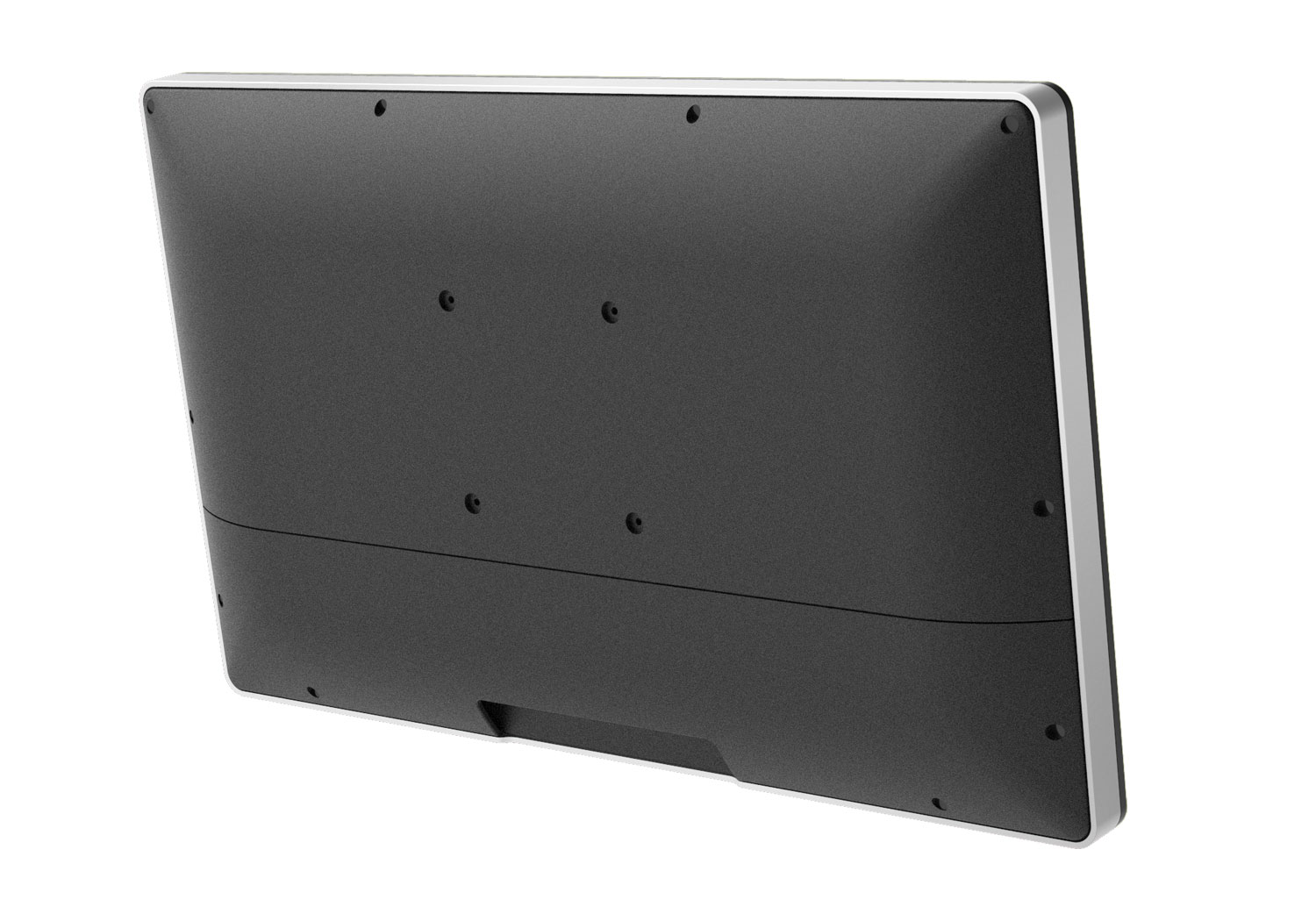

Mounting	VESA Mount 100 x 100 mm
Color	Black / White
Enclosure	Aluminum Die Casting
Cooling System	Fanless
Power Adapter	DC 19V/4.74A, 90W
TPM	TPM 2.0
Packing List
Dimensions (WxDxH)	543 x 334 x 49.9 mm
Weight	7.6 Kg
Box Dimension	670 x 180 x 480 mm
Box Weight	10.0 Kg
Standard Accessory	1 x 90W Power Adapter 4 x Rubber Stopper
Environment
IP Rating	Front IP65
Certification	CE, FCC Class B, CB, cTUVus, EU RF
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Relative Humidity	20% ~ 80% (non-condensing)
Warranty	2 Years
