TITAN-300

The slim and versatile TITAN-300 PC  is a compact industrial PC. The PC has a wide selection of display options including USB-C

Category:

Quick Spec

Processor

Intel Celeron N3350

RAM

4GB

OS Support

Windows 10 Pro/IoT, Linux, Ubuntu

Mounting Type

DIN Rail

Need Help? Contact Us


01462 374102

[email protected]
  • Intel Celeron N3350 Processor
  • 1 x DDR3L SO-DIMM, up to 8GB
  • 1 x Display Port 1.2 Support
  • 1 x USB Type-C ALT-mode Support
  • 2 x LAN, 2 x USB 3.1, 1 x USB 2.0
  • 2 x RS-232/422/485 DB9 (COM1/2)
  • 1 x mSATA and 1 x Micro SD Card for Storage
  • Mounting Design with DIN rail Kit and Wall Mount Kit
  • Wide Range DC 9~36V Power Input

TITAN-300

Specification
Processor Intel Celeron N3350 onboard
Memory 1 x DDR3L SO-DIMM slot, up to 8GB
Graphics Intel HD Graphics 500
I/O
USB
  • 1 x USB 2.0 Type A
  • 2 x USB 3.1 Gen.1 Type A
LAN 2 x GbE RJ45 (Intel i210/211)
Storage
Storage
  • 1 x mSATA (SATA3) slot
  • 1 x Micro SD Card slot
Display
Video 1 x DP 1.2 port
USB3 Type-C 1 x USB Type-C ALT Mode
Expansion
Expansion
  • 1 x Full-size Mini-PCIe with Micro-SIM slot and 1 x SMA connector for Wi-Fi/BT/LTE options via TB-591
  • 2 x RS-232/422/485 DB9 (COM1/2) via TB-591
Power
Power Button 1 x power button with LED light
Input Voltage DC 9~36V
Mechanical
Housing Aluminum Alloy heat sink and plastic bezel
Colour TANIUM GRAY heat sink and black housing
Mounting DIN rail and Wall Mount Kit

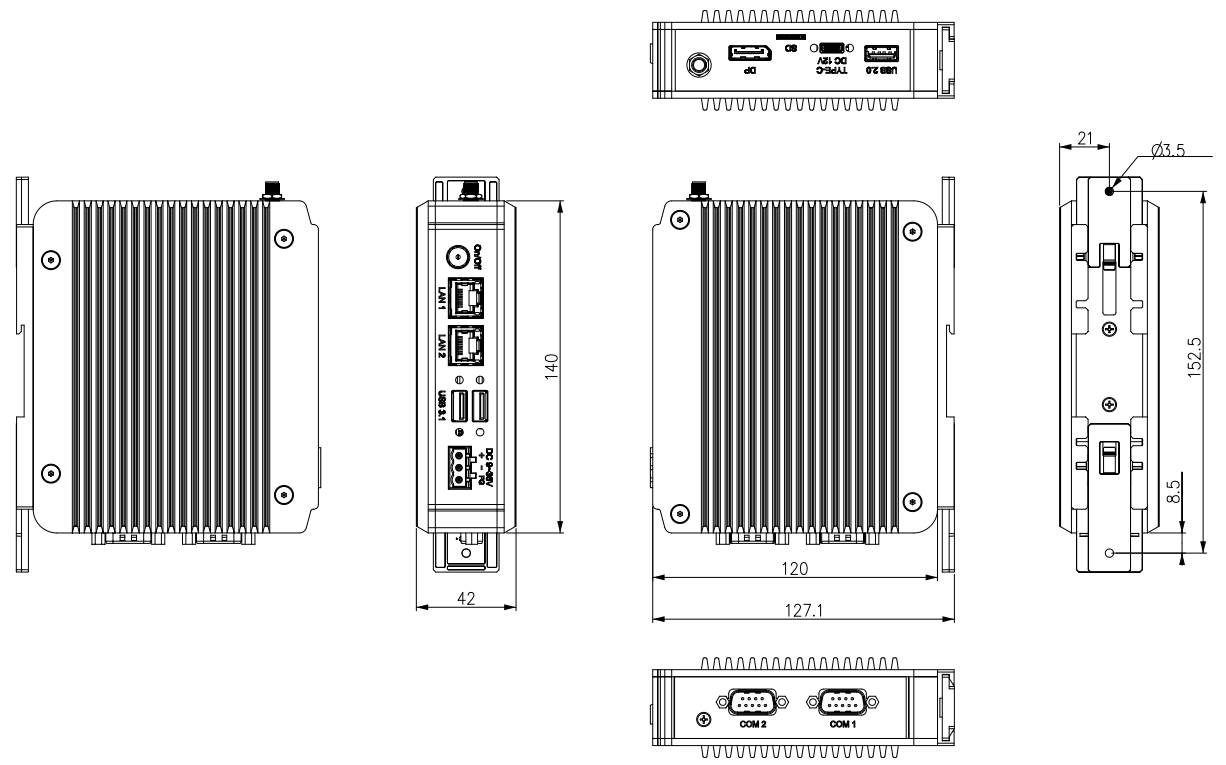

Dimension 140 x 120 x 42 mm
Net Weight 1.5kg
Environmental
Operating Temperature 0~50°C/ -20~60°C option
Certificate CE/FCC Class A
Operating System Support Windows 10 Pro/IoT, Linux, Ubuntu

TiTAN-300_V1.3.pdf
