TBOX-1 Series (i7) (1T35)

These compact, Industrial Embedded Box PCs feature the Intel Core Tiger Lake CPU Range and offer flexible desktop, wall, or DIN-rail mounting for seamless integration. Designed for reliability and performance, they’re ideal for demanding industrial environments.

Categories: Industrial, Industrial PC, Industrial PCs

Quick Spec

Processor	Intel 11th Gen. Core i7-1195G7, Quad-core processor
RAM	Up to 32Gb DDR4
SSD	Up to 512Gb M.2 2280
I/O Ports	USB 3.0 x 6, HDMI x 2, Audio
OS Support	Win10, Win11, Linux

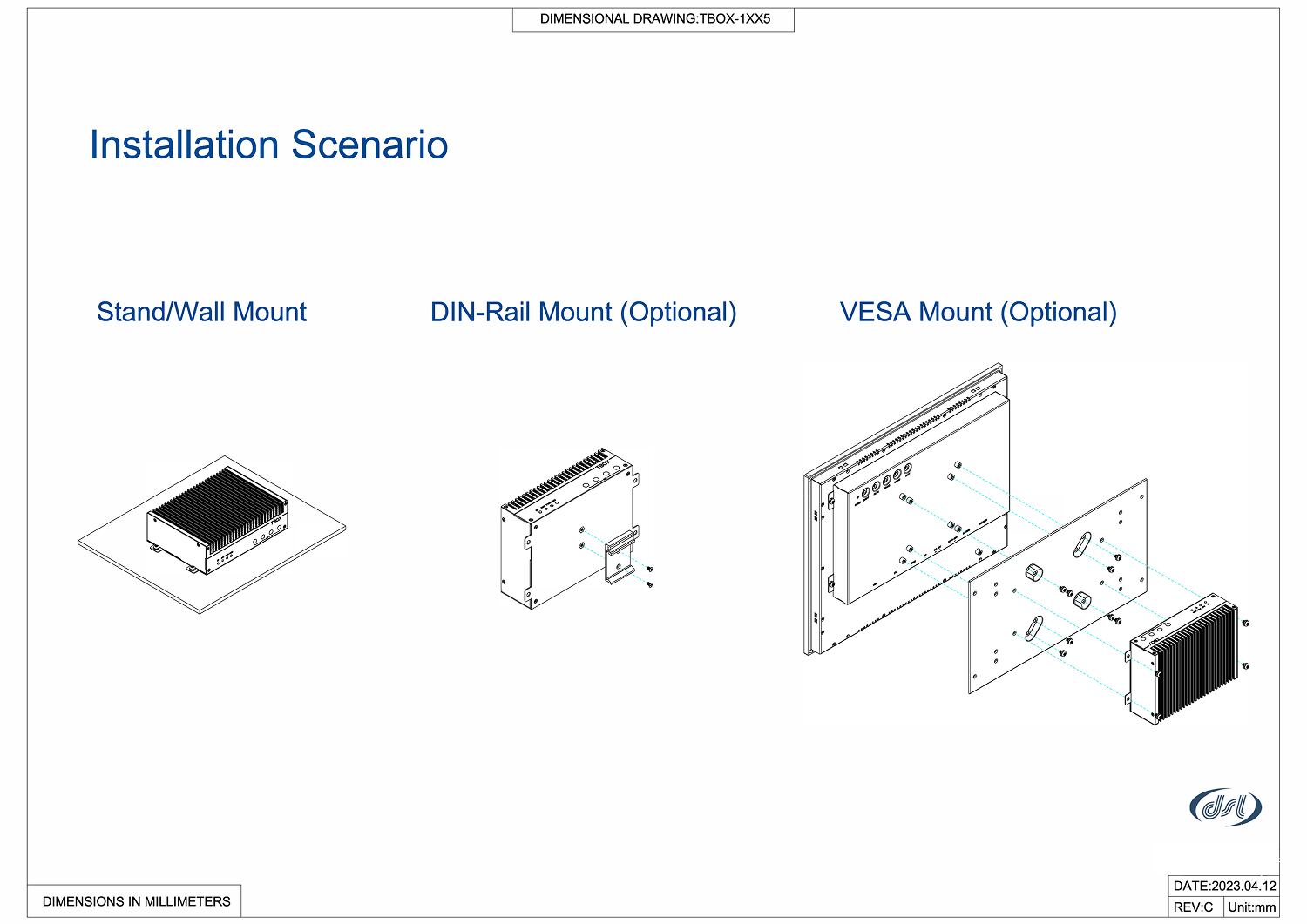

Mounting Type	Desktop, wall mount, optional with Din-rail mount

Datasheet

TBOX-1 Series (i7) (1T35)-Datasheet

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
sales@dsl-industrialcomputing.co.uk

The TBOX-1 Series Core i7 is an ultra-small, rugged fanless industrial Box PC built around an Intel 11th Gen Core i7-1195G7 quad-core processor, designed for reliable performance in space-constrained industrial environments. Connectivity includes six USB 3.0 ports, dual HDMI outputs, and audio, with an M.2 3052 B-Key and M.2 2230 E-Key slot providing flexible storage and wireless expansion options.

The fanless aluminium chassis ensures dependable low-maintenance operation across an industrial temperature range of -20°C to +60°C, and optional DIN-rail mounting allows straightforward integration into control cabinets alongside other industrial equipment.

0/5 (0 Reviews)

Rugged, Ultra-small, fanless designed box structure
Intel 11th Gen. Core i7-1195G7, Quad-core processor
Industrial -20 ~ + 60℃ operating range
1 M.2 3052 B-Key slot, and 1 M.2 2230 E-Key slot
6x USB 3.0, 2x HDMI, Audio
Optional support Din-Rail mount

FULL SPECIFICATIONS

System

CPU	Intel Core i7-1195G7, Quad-core processor
Memory	Up to 32GB SO-DIMM, DDR4-2666/2933/3200 Mhz
TPM	Intel PTT TMP2.0

I/O Port

USB	6x USB 3.0
Serial/Parallel	N/A
Audio	1x Mic-in/Line-out (2-in-1 Jack)
LAN	2x GLAN
Power Connector	DC Jack, lockable 5.5 x 2.5
Option	3G/4G/LTE/5G, and Wi-Fi/BT
Display Ports	2x HDMI

Storage

HDD	1x M.2 2280 M-Key slot (PCIe Gen-IV x4, NVMe) SSD

Expansion

On Board Expansion Bus

N/A

Display

Display Type	N/A
Max. Resolution	N/A

Touch Screen

Type	N/A
Light Transmission (%)	N/A

Power

Power Input

DC 12V

Mechanical

Construction	Aluminum alloy, anodizing and anti-scratch treatment
Mounting	Desktop, wall mount, optional with Din-rail mount
IP Rating	N/A
Net Weight	0.85 KG

Environmental

Operating Temperature	-20 ~ + 60 (℃)
Certificate	CE/FCC/ROHS
Operating System Support	Win10, Win11, Linux
