EHL-J6412

Fanless Box PC, equipped with the Elkhart Lake J6412 quad-core 2.0GHz CPU, ensures reliable and efficient processing.

Category: Industrial PCs

Quick Spec

Processor	Intel J6412 Quad Core
RAM	Upto 32GB
OS Support	Windows 10 and 11
Mounting Type	Wall Mount and VESA Mount

Datasheet

EHL J6412 Datasheet

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
sales@dsl-industrialcomputing.co.uk

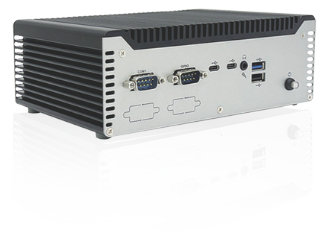

The EHL-J6412 is a fanless Box PC powered by an Intel Elkhart Lake J6412 quad-core 2.0GHz processor, designed for reliable and efficient operation in industrial automation, edge computing, and control applications. Dual Intel i225-V 2.5GbE ports provide high-speed network connectivity, while triple display support via dual HDMI 2.0 (up to 4096×2160@60Hz) and DisplayPort 1.4 enables demanding visualisation and monitoring setups.

Storage and expansion is handled via an M.2 M-key slot supporting NVMe SSD and an M.2 E-key slot for WLAN/BT, with a COM port and GPIO rounding out the I/O. The system operates across an industrial temperature range of -20°C to +60°C and supports Windows 10, Windows 11, and Linux, with wall and VESA mounting options for flexible installation.

0/5 (0 Reviews)

Intel® Elkhart Lake J6412 (Quad core 2.0GHz)
DDR4 3200MHz SO-DIMM, memory up to 32GB
HDMI 2.0 x2 (Max. 4096×2160@60Hz)
DP 1.4 x1 (Max. 4096×2160@60Hz)
Support Triple Displays
M.2 M-key x1 (2260/2280), PCIe Gen.3 x2/SATA interface support NVMe SSD
M.2 E-key x1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
Intel® i225-V 2.5GbE RJ45 x2
COM x1 (RS232/485/422)/ GPIO x1
Operating Temperature -20°C to +60°C

Specification

Processor	Intel® Elkhart Lake J6412 Processor (Quad core 2.0GHz)
Memory	DDR4 3200MHz SO-DIMM, memory up to 32GB
BIOS	AMI BIOS
Disk Support	M.2 M-key x1 (2260/2280), PCIe Gen.3 x2/SATA interface support NVMe SSD
Expansion	M.2 E-key x 1 (2230), USB2.0/PCIe x1 interface (CNVi supported) WLAN/BT
Display	Intel® HD Graphics, shared memory, HDMI 2.0 x2 (Max. 4096×2160@60Hz), DP 1.4 x1 (Max. 4096×2160@60Hz), Support Triple Displays
Ethernet	Intel® i225-V 2.5GbE x2
Audio	Dual channel HD Audio Realtek ALC888S

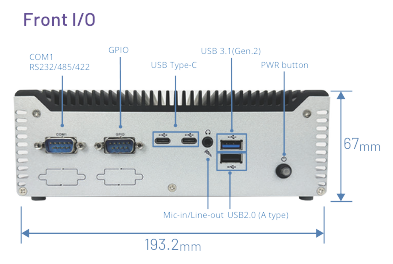

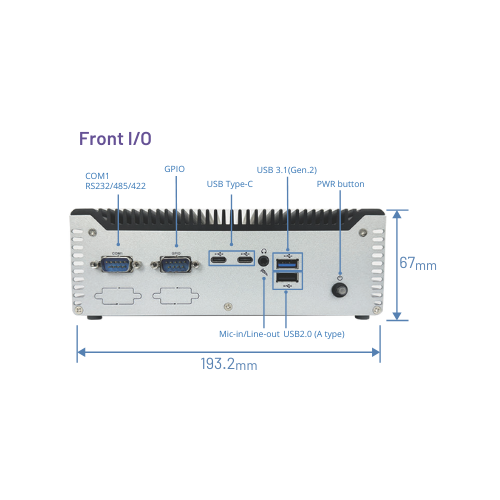

Front I/O	COM x1 (RS232/485/422) / GPIO x1, USB Type-C x2 / USB3.1 (Gen2) Type-A x1 / USB2.0 Type-A x1, Line-out/Mic-in combo x1 / Power button

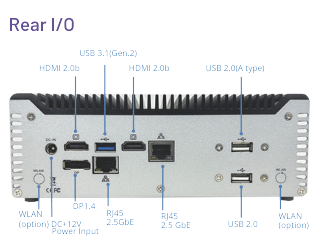

Rear I/O	HDMI x2 / DP x1, RJ45 x2 / USB 3.1 (Gen2) x1 / USB 2.0 x2, DC +12V Input
OS support	Windows 10, Windows 11 (64-bit), Linux

Mechanical & Environment

Power Requirement	DC +12V Power adapter only (2 .5ø)
Power adapter	+12V3.34A (40W)
Operating Temperature	-20~+60°C
Storage Temperature	-40~+85°C
Net Weight	1.7 kgs
Dimensions (W x D x H)	193.2 x 108.8 x 67mm
Certifications	CE, UKCA, FCC, VCCI

Order information

EBOX-EHL-6412	Intel Elkhart Lake J6412 Embedded computer
POWER-40W-EHL	AC-DC power adapter DC12V@3.34A (AC 100~240V Input)
POWERCABLE (G)(A)(EN)(AU)	Power cord US/EU/UK/AU&NZ types
Optional item	VESA Rack
