AVS-313

This Industrial Machine Vision PC is a budget friendly system powered via the Intel J1900 processor with 1 x LAN port, 2 x PoE ports and plenty of Digital I/O connect up multiple monitoring sensors.

Quick Spec

Processor	Intel Celeron J1900
RAM	4GB – 8GB
OS Support	Windows 10 IoT
Mounting Type	Flange (wall)

Intel Celeron J1900 CPU
1 x DDR3L SO-DIMM 1333MHz
1 x 2.5” SATA2 HDD space
2 x PoE ports with intel i210AT controller
Wide Range DC 9~36V Power Input
Fanless Design

System

CPU	Onboard Intel Celeron J1900 Processor
Memory	1 x 204-pin SO-DIMM DDR3L 1333MHz, up to 8GB

I/O Port

USB	1 x USB 3.0 type A 3 x USB 2.0 type A 2 x USB 2.0 type A (internal)
Serial/Parallel	1 x RS232, DB9 (COM3, via TB-579IL)
Audio	1 x Audio Line Out
LAN	1 x GbE LAN RJ-45 by intel i210AT(i211AT) controller
Digital I/O	8 x DI, 8 x DO, 2 x 10Pin Phoenix Connector, isolation (GPIO1, via TB-579IL) 8 x DI, 8 x DO, 2 x 10Pin Phoenix Connector, isolation (GPIO2, via TB-579IL)
PoE	2 x Gigabit IEEE 802.3af/at (15.4W/25W) PoE port by RJ-45 with intel i210AT controller
Lighting Control	4 x Lighting control , 1 x 8 Pin Phoenix Connector, CH0/CH1/CH2/CH3 (via TB-579IL)
Trigger	4 x Trigger input, 1 x 8 Pin Phoenix Connector, isolation (via TB-579IL)

Display

Controller	Integrated Intel HD Graphics 688 / 854 MHz(J1900)
HDMI	1 x HDMI up to 1920 x 1200

Storage

HDD	1 x 2.5″” SATA2 HDD/SSD bay 1 x mSATA

Expansion

Expansion slot

1 x Mini-PCIe Slot

Power

Power Input

DC 9~36V

Mechanical

Environmental

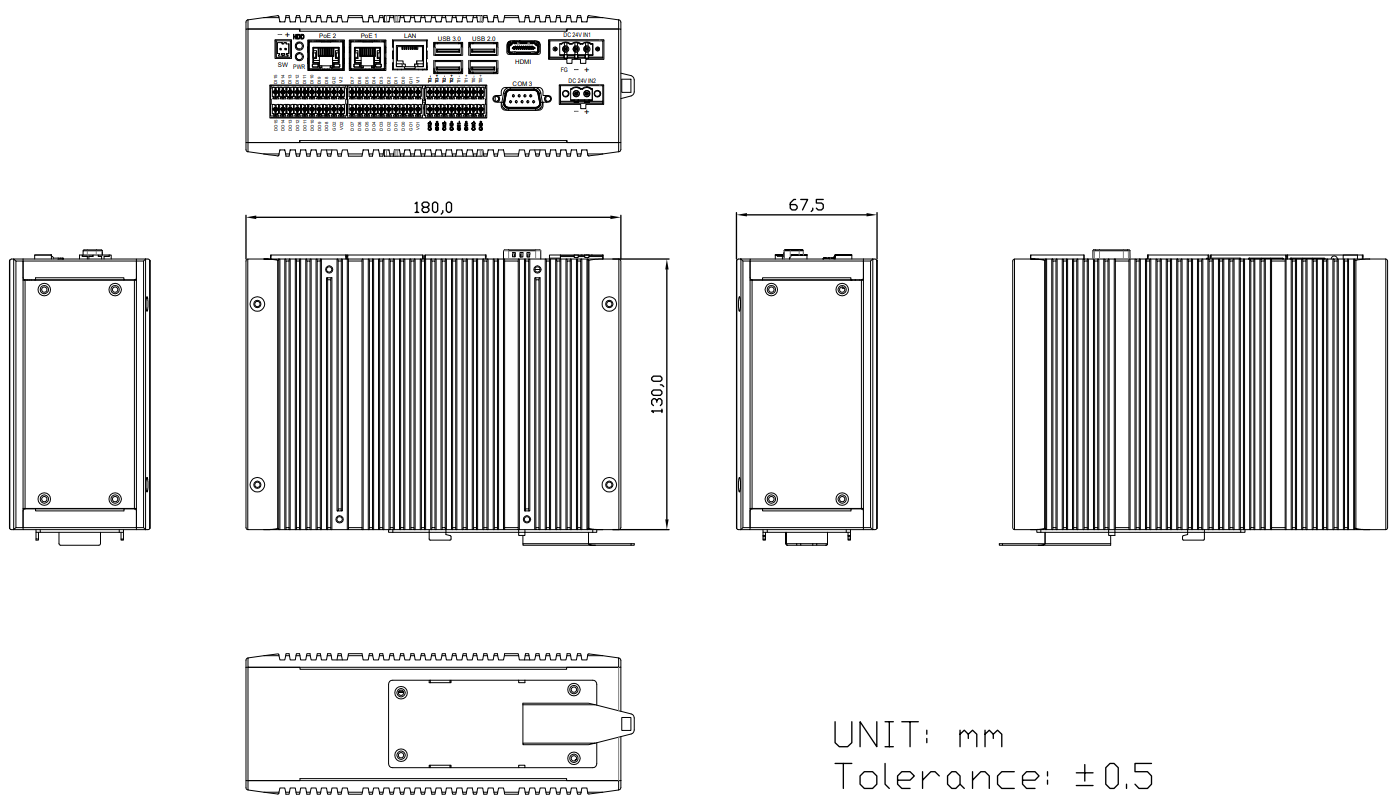

Dimensions	180 x 130 x 67.5 mm
Gross Weight	2.15kg

Operating Temperature	-20~70°C
Certificate	CE/FCC Class A
Operating System Support	Windows 7, Windows 10 IoT”
