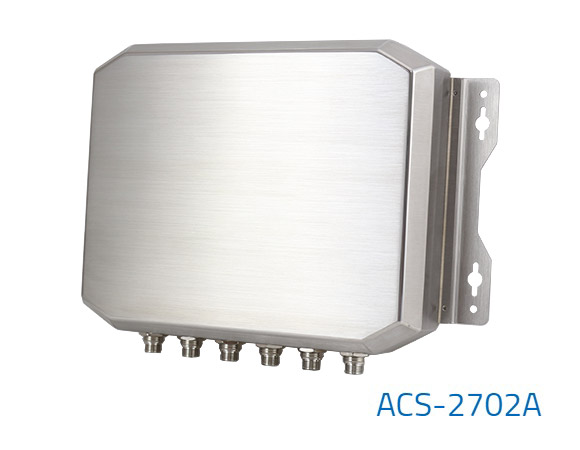

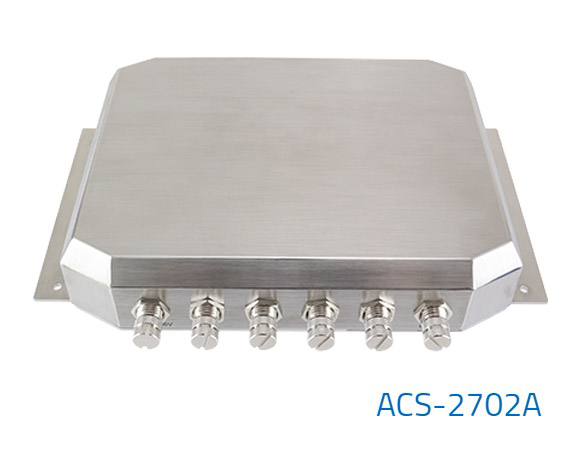

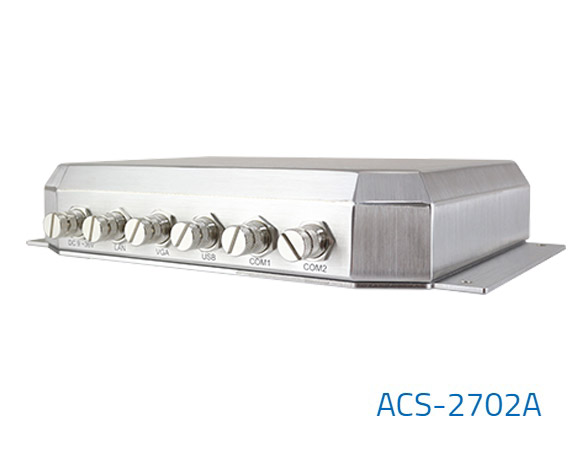

ACS-2702A

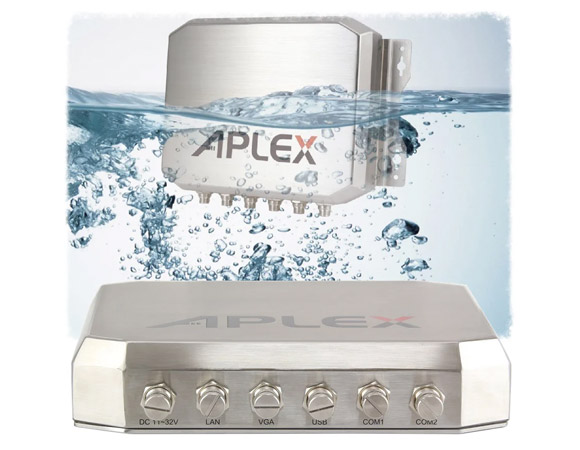

A fully IP67 waterproof Industrial PC housed in a compact stainless steel enclosure protected against the effect of temporary submersion of up to 1M for 30 minutes. Utilising M12 connections for the I/O

Quick Spec

Processor

Intel Celeron N2930

RAM

4GB

IP Rating

Fully IP67

OS Support

Windows 10 Pro/IoT, Linux, Ubuntu

Mounting Type

Flange (wall)

Need Help? Contact Us


01462 374102

[email protected]
  • Fanless design
  • Intel Celeron N2930
  • Onboard 4GB DDR3L 1600MHz
  • Wide Range 9~36V DC Power Input
  • IP67 Certified and IP69K Compliant
  • 1 x 2.5” SATA II HDD Space

ACS-2702A

Specification
Processor 11th Gen. Intel Core i5-1145G7E (4C, 1.5GHz, up to 4.1GHz, TDP-up 28W) CPU onboard
Memory 2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz
TPM TPM 2.0
I/O
USB 4 x USB 3.0 Type A
Serial/Parallel 1 x DB-9 connector, including:

  • 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1)
  • 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable
Audio 1 x Line-out
LAN 1 x 1GbE, 1 x 2.5GbE LAN RJ-45
Display Interface 1 x DP/HDMI
Power
  • 1 x 3-pin Terminal Block Connector
  • 1 x 2-pin Power Switch Connector
Storage
Storage 1 x M.2 M-Key 2280 (Support PCIe/SATA3)
Expansion
On Board Expansion
  • 1 x Mini-PCIe slot (full size)
  • 1 x M.2 E-key for Wi-Fi/Bluetooth Module
  • 1 x Nano SIM slot
Power
Power Input DC 9~36V
Mechanical
Construction Aluminum Chassis
Mounting Panel Mount, VESA 100×100

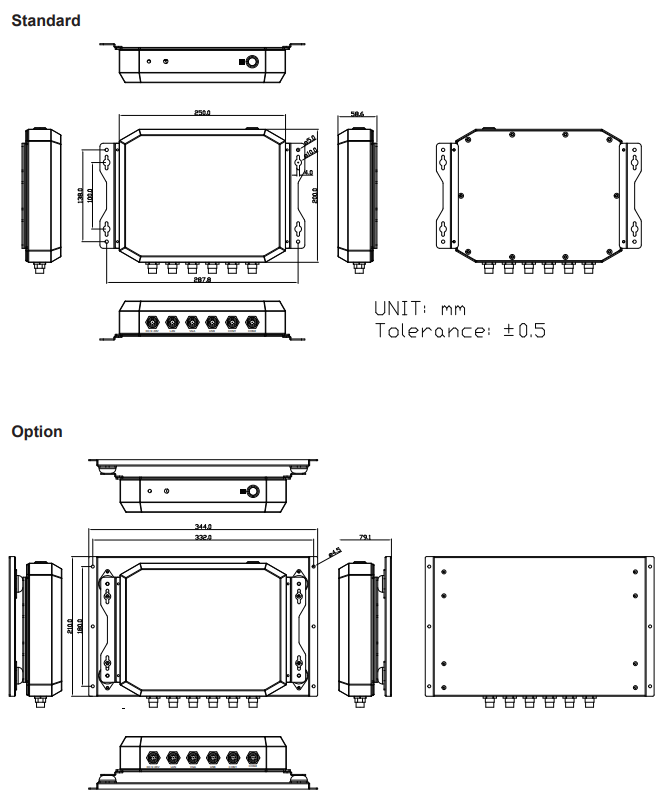

Dimension 252.7 x 158.7 x 36 mm (without wall mount bracket)
Net Weight TBD
Environmental
Operating Temperature -20~60°C
Certificate CE/FCC Class A
Operating System Support Windows 10 Pro/IoT, Linux, Ubuntu

ACS-2702A_V1.0.pdf
