- 6th Gen. Intel Core i3 6100U CPU built-in
- Fanless Design
- 1 x 260-pin DDR4 SO-DIMM up to 16GB 2133MHz FSB
- Wide range DC 9~36V power input
- 1 x 2.5” SATA3 HDD space
Industrial PC
ACS-2320A_V1.0.pdf
ACS-2320A
The ACS-2320A Industrial PC is a fanless system powered by the 6th gen Intel i3-6100U CPU. Perfect for installations where slightly higher performance is required
Quick Spec
| Processor | Intel Core i3 6100U |
|---|---|
| RAM | 4GB – 16GB |
| OS Support | Windows 10 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Flange (wall) |
Datasheet
ACS-2320A_V1.0.pdf
Specification
| Processor | 6th Gen. Intel CoreTM i3-6100U 2.30GHz CPU onboard |
| Memory | 1 x 260-pin DDR4 SO-DIMM up to 16GB 2133MHz FSB |
I/O
| USB | 2 x USB 3.0 type A, 4 x USB 2.0 type A |
| Serial/Parallel |
|
| Audio | 1 x Line-out |
| LAN | 2 x GbE LAN RJ-45 |
| Display Interface | 1 x VGA, 1 x HDMI |
| Power | 1 x 3-pin DC power input terminal, 1 x power button |
Storage
| Storage | 1 x 2.5” SATA3 HDD bay (easy accessible) |
Expansion
| Expansion Slot | 1 x Mini-PCIe slot full size |
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | Plating titanium gray aluminum heatsink and black steel chassis |
| IP Rating | IP30 |
| Mounting | Wall Mount |

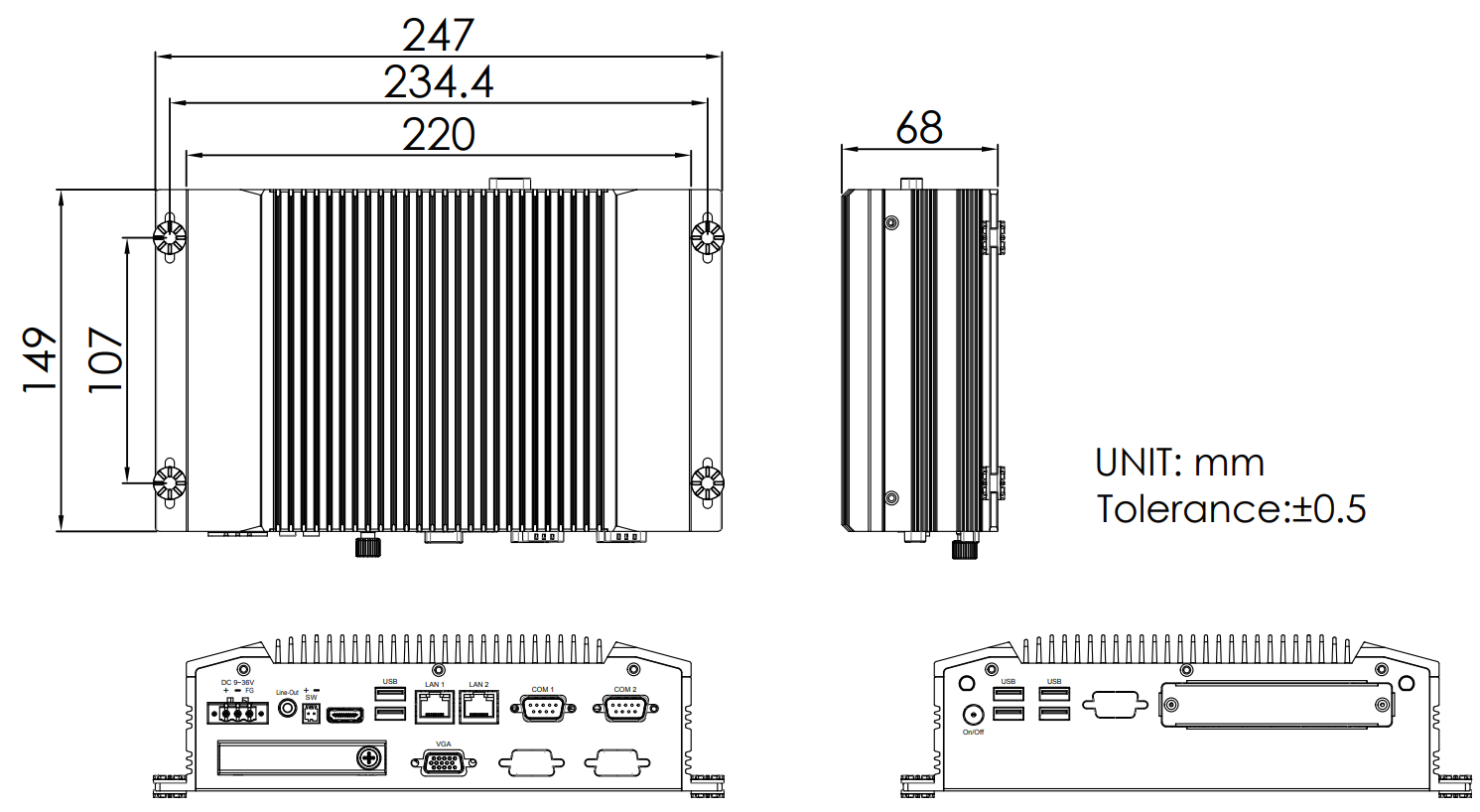

| Dimension | 247 x 149 x 68 mm |
| Net Weight | 2.5kg |
Environmental
| Operating Temperature | 0~50°C/ -20~60°C(option) |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Linux, Ubuntu |

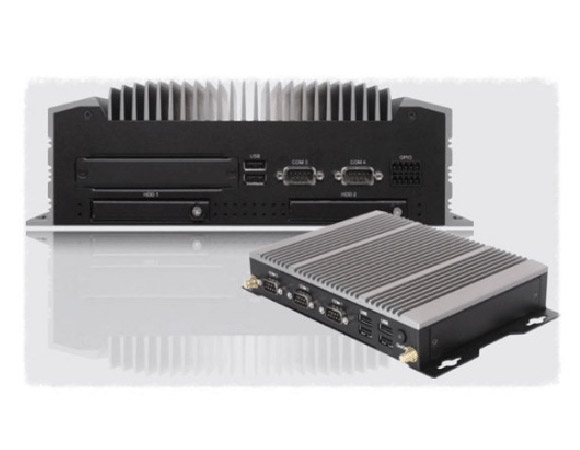

Evaluation Sample
