- Intel Elkhart Lake Processor
- 1 x 260-pin SO-DIMM up to 32GB DDR4
- Support 2.5GbE LAN
- Support 2 x Expansion Bus
- Wide Range DC 9~36V Input
- Wide Range Operation Temperature -20~70˚C
Industrial PC
ACS-2310A_V1.1.pdf
ACS-2310A
The slim ACS-2310A Industrial PC is a budget friendly, fanless system powered by the Intel Celeron J6412 CPU and utilising DDR4 RAM. Perfect for installations where space is limited
Quick Spec
| Processor | Intel Celeron J6412 |
|---|---|
| RAM | 4GB – 32GB |
| OS Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Flange (wall)/VESA |
Datasheet
ACS-2310A_V1.1.pdf
Specification
| Processor | Intel Celeron J6412 |
| Memory | 1 x 260-pin SO-DIMM up to 32GB DDR4 |

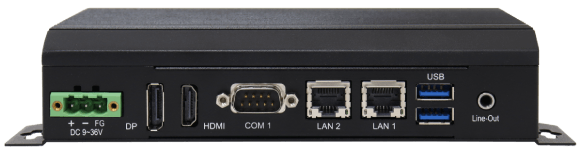

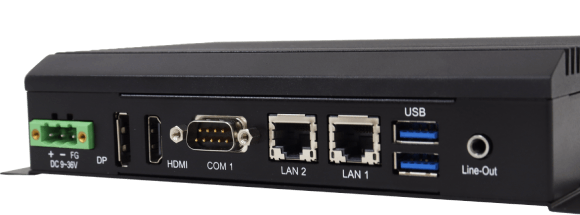

I/O
| USB | 2 x USB 3.2 Gen1 type A |
| Serial/Parallel | 1 x RS-232/422/485, DB-9 (default RS-232) |
| Audio | 1 x Line-out |
| LAN |
|
| Display Interface | 1 x HDMI, 1 x DP |
| Power | 1 x 3-pin DC power input terminal block, 1 x power button |
Storage
| HDD |
|
Expansion
| On Board Expansion Bus |
|
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | Aluminum Heatsink and Steel Chassis |
| Mounting |
|

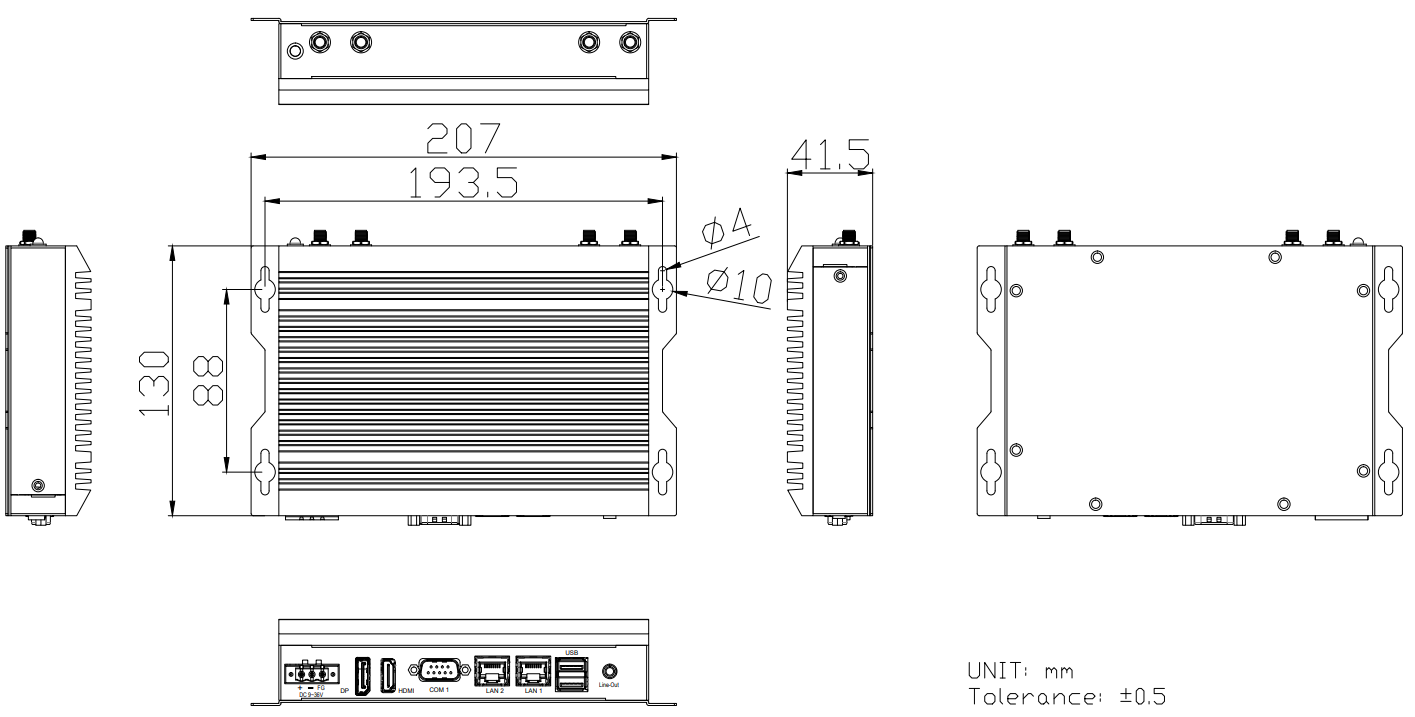

| Dimension | 207 x 130 x 41.5 mm |
| Net Weight | 1kg |
Environmental
| Operating Temperature | 0~50˚C (optional WT1 -20~60˚C/ WT2 -20~70˚C) |
| Certificate | CE/FCC Class A, RoHs |
| Operating System Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
