- 24” Industrial Compact Size Panel PC
- Stainless-Steel Bezel
- Fully Enclosed Touch Screen with Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Intel Celeron J6412 CPU built-in
- Up to 32GB RAM
- Fully IP66/IP69K Compliant Panel
Fully IP rated Panel PCs, Industrial, Panel PCs
ViTAM-824BPRH_V1.2.pdf
ViTAM-824B/P
These 24″ fully-enclosed, stainless-steel, IP66/IP69K rated panel PCs enable high pressure steam jet cleaning. Employing the Intel Celeron J6412 CPU, with vandal-proof 7H hardened glass, these are perfect for the food and beverage industry.
Quick Spec
| Display Size | 24" |
|---|---|
| Processor | Intel Celeron J6412 |
| RAM | 4GB – 32GB |
| IP Rating | Fully IP66/IP69K |
| Touchscreen | Projected Capacitive, Resistive |
| OS Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
| Mounting Type | VESA/YOKE |
Datasheet
ViTAM-824BPRH_V1.2.pdf
System
| CPU | Onboard Intel Celeron J6412 Processor |
| Memory | Onboard 4GB DDR3L SDRAM |
| TPM | TPM 2.0 |
I/O Port
| USB | 1 x M12 8-pin for USB 2.0 with waterproof cover and chain |
| Serial/Parallel | 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain |
| LAN | 1 x M12 8-pin for LAN with waterproof cover and chain |
| Power Connector |
|
| Option |
|
Storage
| HDD | 1 x 2.5″ SATA3 HDD |
| M.2 | 1 x M.2 B-Key(SATA 3), Support 2242 at default |
Expansion
| Expansion slot |
|
| RFID Module | RFID module design on the front side(optional) |
| Display | based on standard display, high brightness option see datasheet |
| Display Type | 23.8″ TFT-LCD |
| Max. Resolution | 1920 x 1080 |
Touch Screen
| Type | Projected Capacitive / Resistive / Glass |
| Light Transmission (%) | Resistive 80% PCAP 90% |
Power
| Power Input | DC 9~36V |

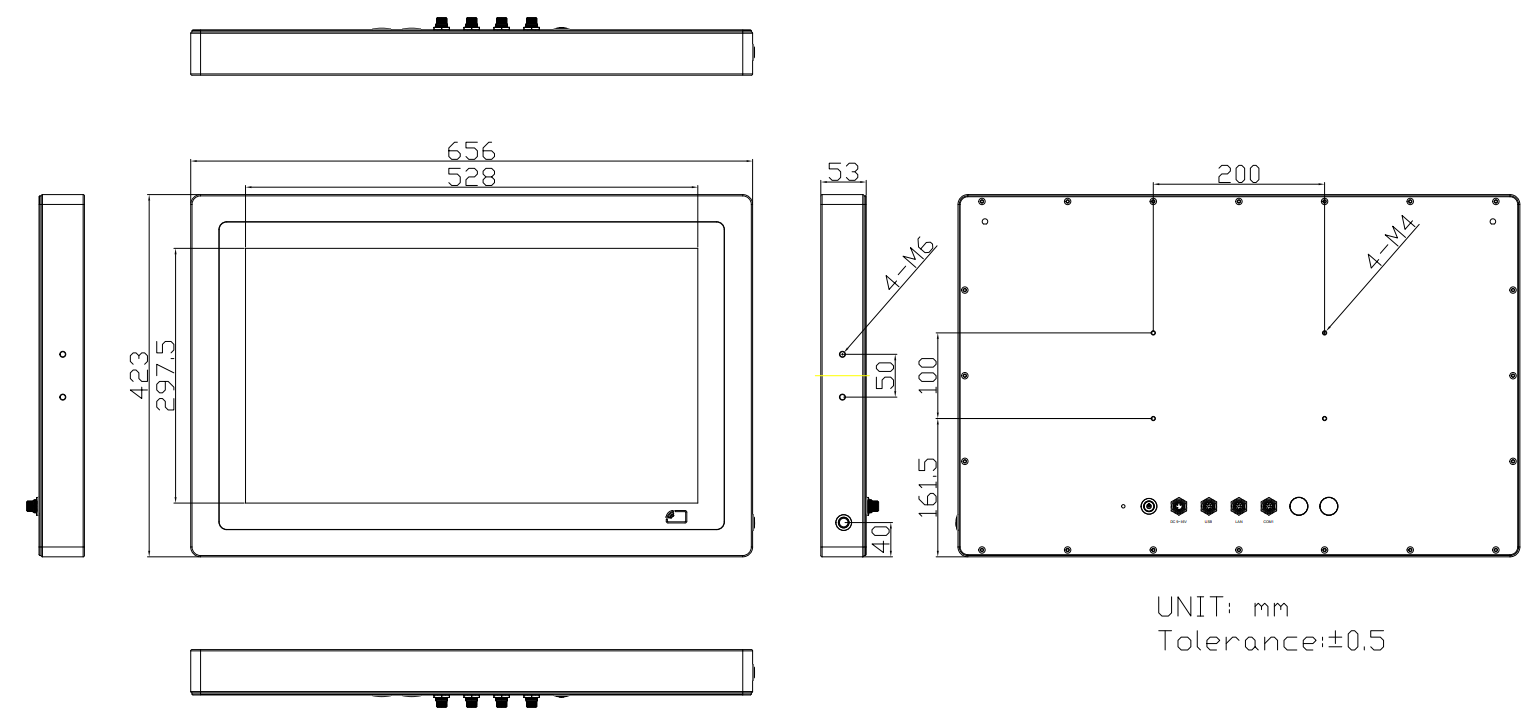

Mechanical
| Construction | 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional) |
| Mounting | VESA Mount 75 x 75, YOKE mount option |
| IP Rating | Front Panel IP66/IP69K |
| Net Weight | 12.5kg |
Environmental
| Operating Temperature | 0~50°C option |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu |
