- 21.5” Industrial Compact Size Panel PC
- Flat Front Panel Touch Screen and Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Intel Core i3 6100TE CPU built-in
- Up to 32GB RAM
- IP66 Compliant Front Panel
Front IP rated Panel PCs, Industrial, Panel PCs
ViPAC-921PRGH_V1.3.pdf
ViPAC-921

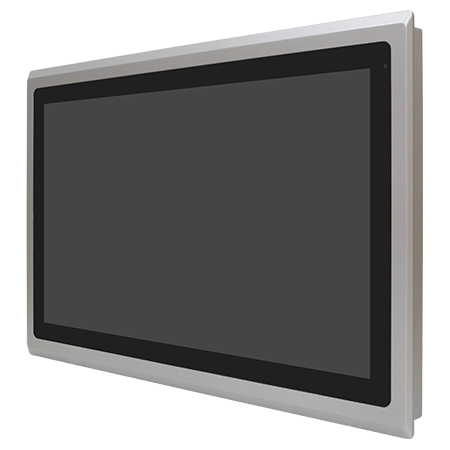

These 21.5″ versatile, front IP66 panel PCs can be panel mounted for a sleek built-in feel. Employing the Intel Core i3 6100TE, these are perfect for industrial environments.
Quick Spec
| Display Size | 21.5" |
|---|---|
| Processor | Intel Core i3 6100TE |
| RAM | 4GB – 32GB |
| IP Rating | Front IP66 |
| Touchscreen | Projected Capacitive, Resistive |
| OS Support | Windows 10 Pro/IoT, Linux, Ubuntu |
| Mounting Type | Panel |
Datasheet
ViPAC-921PRGH_V1.3.pdf
System
| CPU | Onboard Intel Core i3 6100TE Processor |
| Memory | 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM |
I/O Port
| USB | 4 x USB 3.0 type A |
| Serial/Parallel |
|
| Audio | 1 x Line-out/Mic-in |
| LAN | 2 x GbE LAN RJ-45 |
| DP |
|
| Power Connector |
|
| Option |
|
Storage
| HDD | 1 x 2.5″ SATA HDD Space (Easy Accessible Storage Design) |
Expansion
| Expansion slot |
|
| Display | based on standard display, high brightness option see datasheet |
| Display Type | 21.5″ TFT-LCD |
| Max. Resolution | 1920 x 1080 |
Touch Screen
| Type | Projected Capacitive / Resistive |
| Light Transmission (%) |
|
Power
| Power Input | DC 9~36V |
Mechanical
| Construction | Aluminium die-cast front bezel |
| Mounting | Panel Mount |
| IP Rating | IP66 Compliant Front Bezel |
| Net Weight | 8.7kg |
Environmental
| Operating Temperature | 0~50°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Linux, Ubuntu |
