OTTER-15

These 15″ lightweight rack mounted displays are available in both resistive and PCAP touch. Ideal for industrial enviroments where 19″ racks are required

Quick Spec

Display Size

15''

IP Rating

Front IP65

Touchscreen

Projected Capacitive, Resistive

Mounting Type

Rack Mount/VESA

5yr-warranty

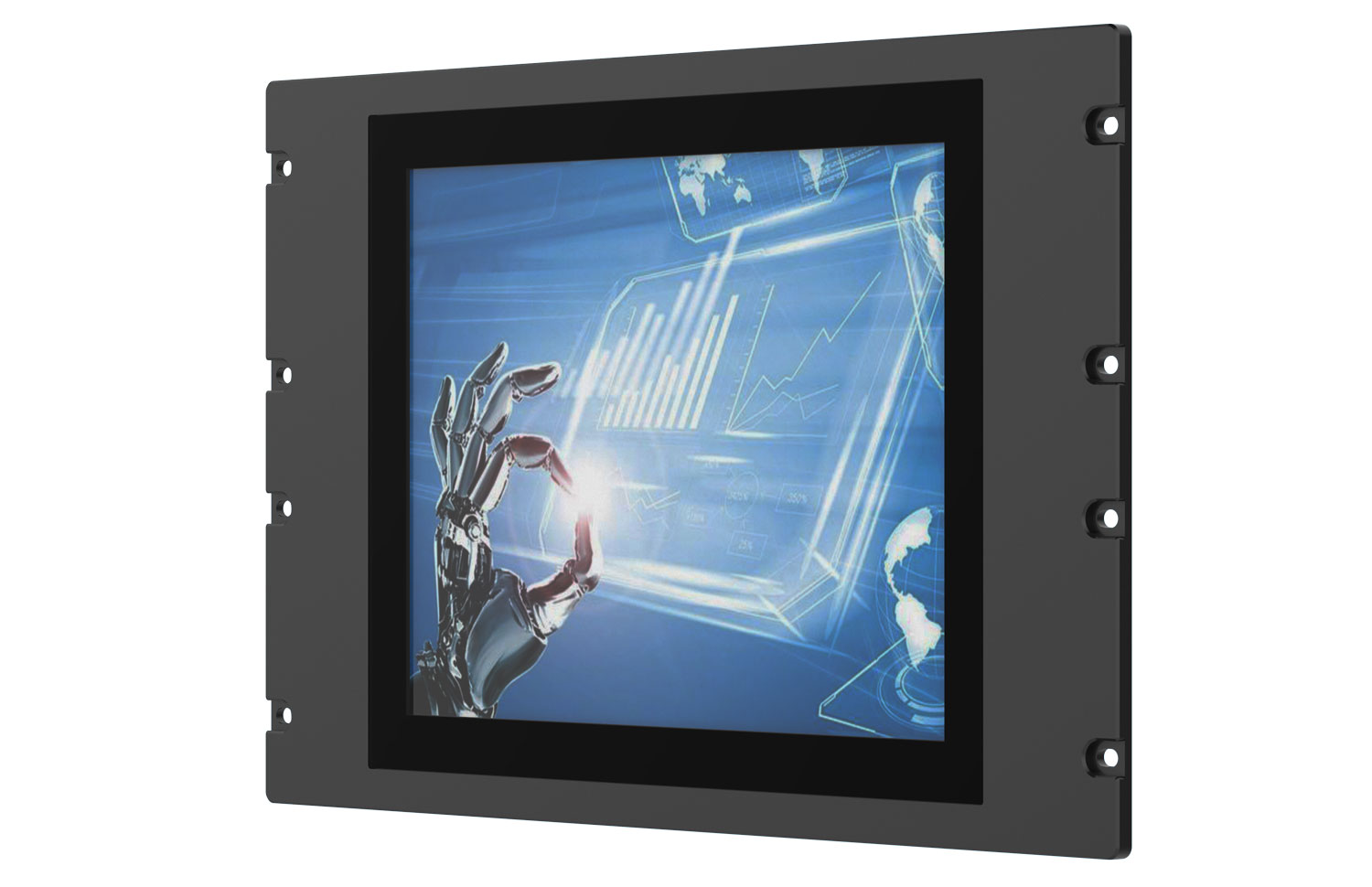

The OTTER-15 is a 15″ rack-mount industrial display designed for deployment in 19″” rack installations across a wide range of industrial environments. Available in both resistive and projected capacitive touch configurations, it can be tailored to the input requirements of the application – whether glove-friendly operation or precise multi-touch interaction.

The front IP65-rated panel provides robust protection against dust and water ingress, ensuring reliable long-term performance in demanding settings. A 12V DC power input and VESA mounting compatibility complement the standard 19″” rack-mount form factor, making the OTTER-15 a straightforward and dependable display solution for control rooms, operator stations, and industrial rack enclosures.

0/5 (0 Reviews)
  • 15” Industrial Compact Size Industrial Display
  • Standard 19″ Rackmount
  • Flat Front Panel Touch Screen and Fanless Design
  • DC 12v Power Input
  • IP65 Compliant Front Panel

15

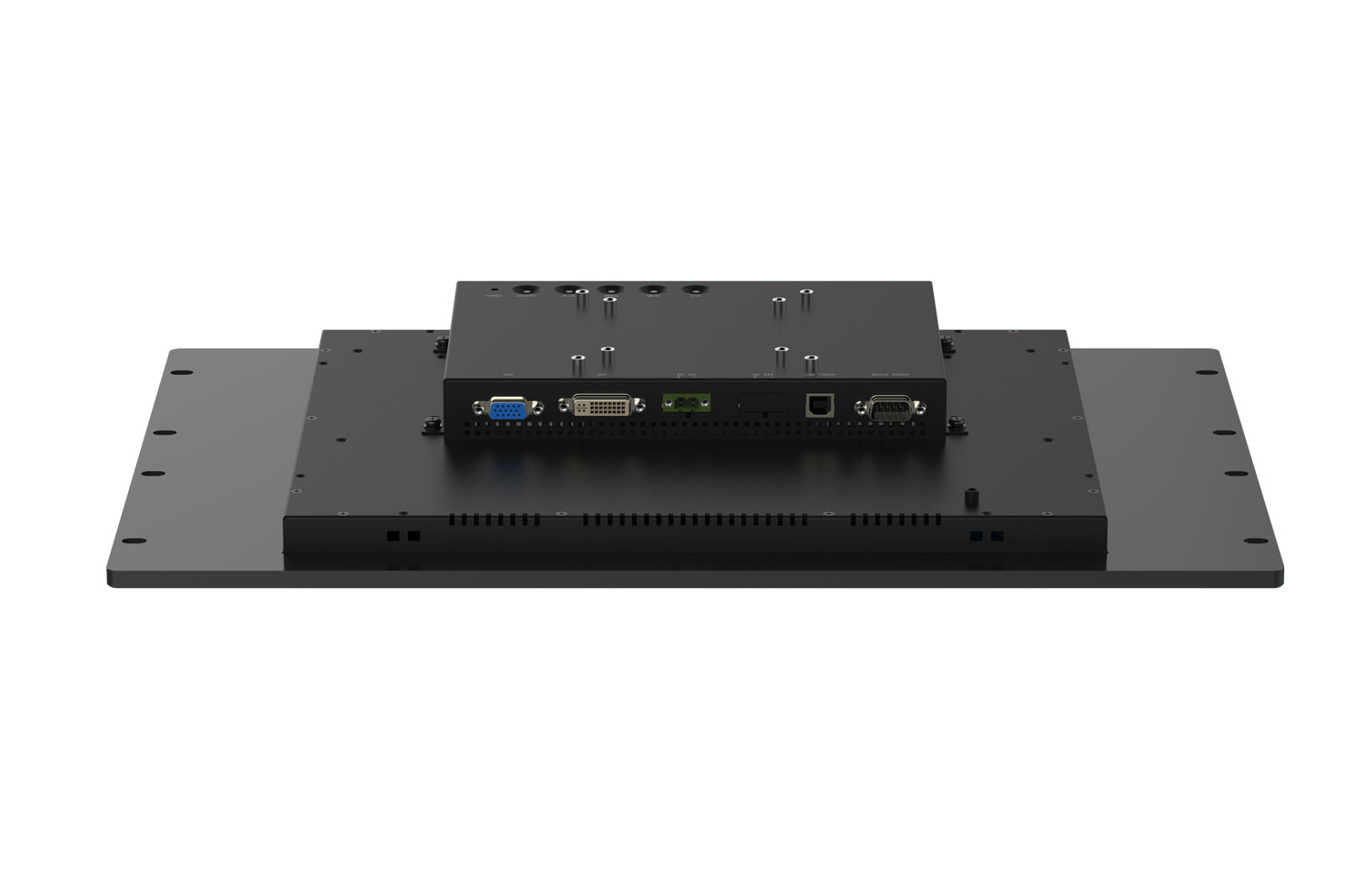

I/O Port
VGA 1 x VGA
DVI 1 x DVI-D
Power 1 x 12v DC (9~36V power input optional)
Others
  • 1 x USB type B for touch control
  • Optional I/O:
  • 1 x RS-232 DB-9 for touch control
Display – based on standard display, high brightness option see datasheet
Display Type 15″ TFT-LCD
Max. Resolution 1024 x 768
Touch Screen
Type Projected Capacitive / Resistive
Interface
  • USB default (Resistive/Projected Capacitive Touch)
  • RS-232 Option (Resistive Touch)
Power
Power Input DC 9V

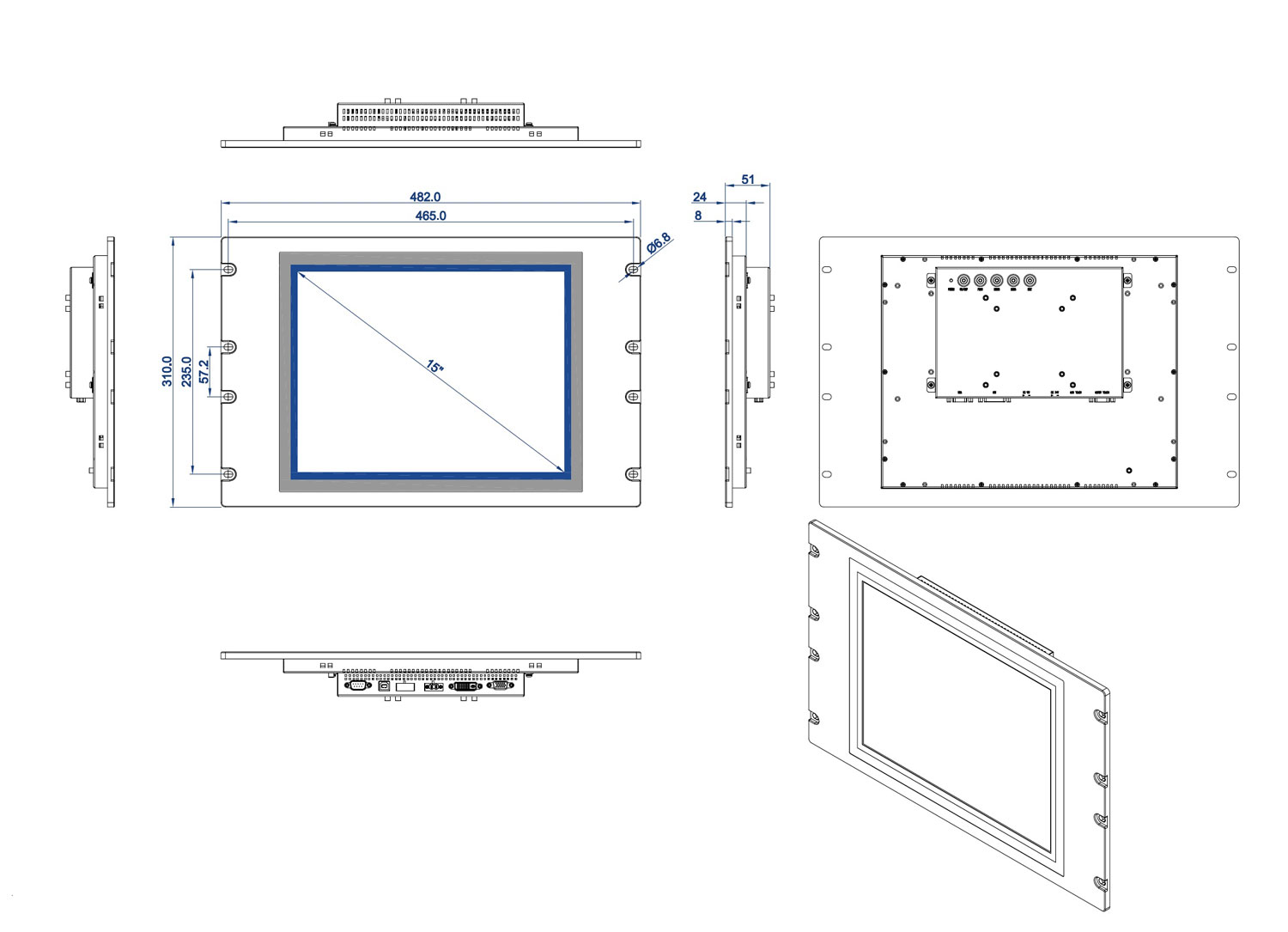

Mechanical
Construction Aluminium Magnesium Alloy

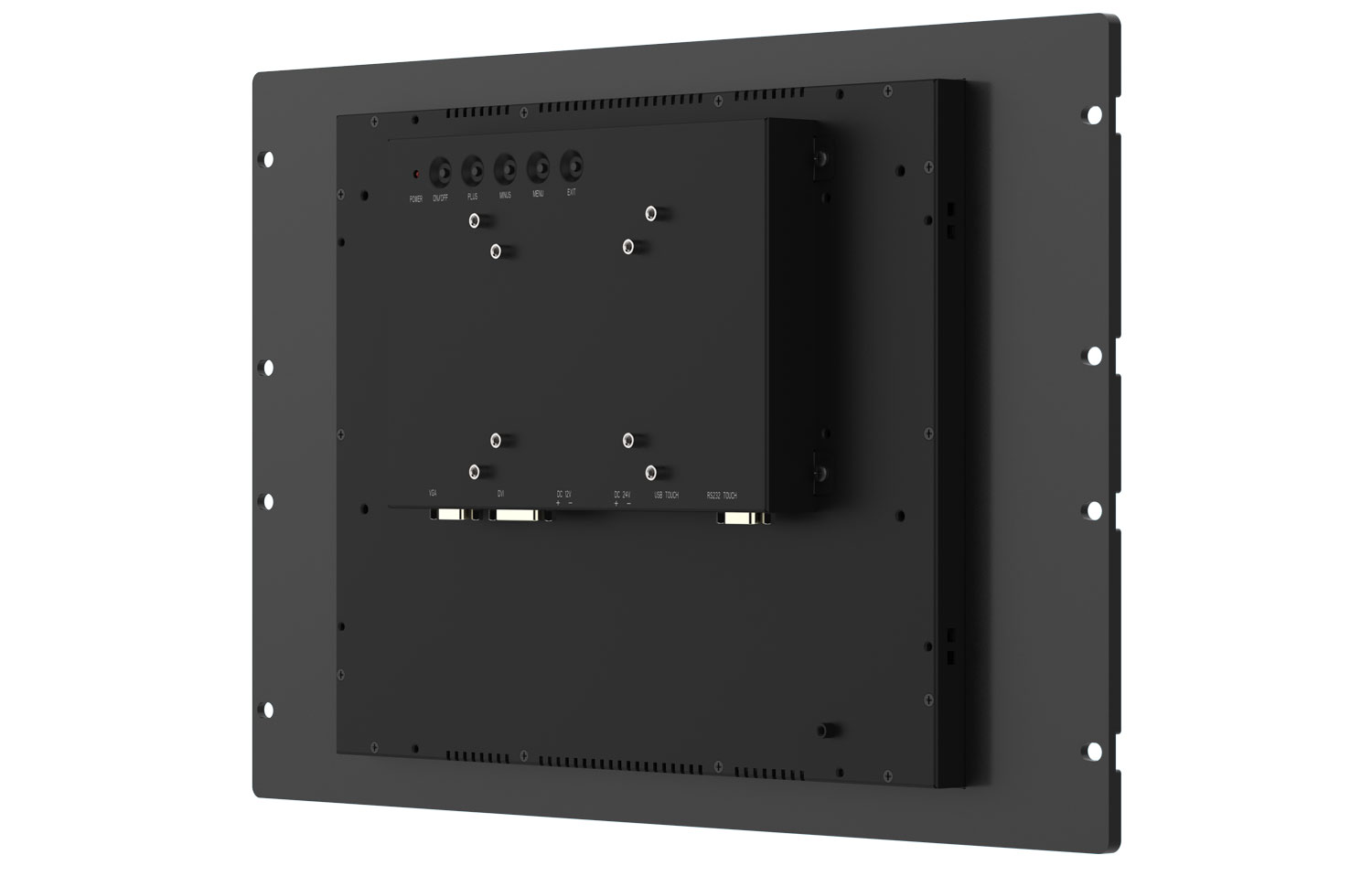

Mounting 19″ Rack Mount (7U Height), VESA Mount 100 x 100
IP Rating IP65 Compliant Front Bezel
Net Weight 3.5kg
Environmental
Operating Temperature -20~70°C
Certificate CE/FCC Class A
