- High strength 304 stainless steel, optional 316 type
- Wide 15.6” TFT LCD Display, WLED Backlit,FHD 1920 x 1080
- Intel Elkhart Lake J6412 processor, Quad-core 2.0Ghz

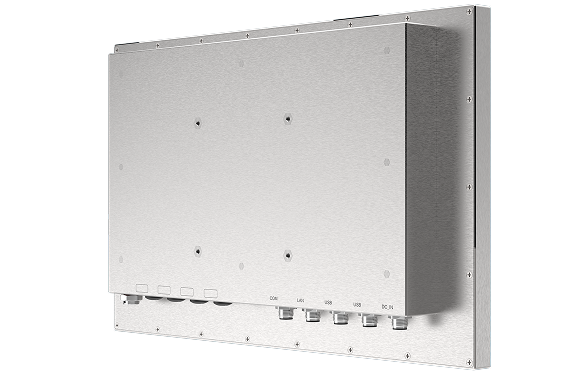

- M12 water-proof connector, 1 GbE, 2 USB, 1 COM, 1 DC-IN
- Flexible I/O expansion (Max. to 4), support GbE, USB, COM
- Fanless & slim design, air vent valve design
Fully IP rated Panel PCs, Industrial, Panel PCs
KRATOS-15.6P Datasheet
KRATOS
These fully enclosed stainless-steel panel PCs feature IP66/IP69K protection for reliable operation in high-pressure washdown and steam-cleaning environments. Equipped with a 15.6″ FHD TFT LCD and projective capacitive touchscreen, they deliver robust, hygienic performance ideal for food and beverage and other industrial applications.
Quick Spec
| Display Size | 15.6" |
|---|---|
| Processor | Intel Elkhart Lake J6412 processor, Quad-core 2.0Ghz |
| RAM | Up to 32GB SO-DIMM, Support DDR4 2666/2933/320 |
| SSD | Up to 512Gb M.2 2280 |
| OS Support | Win10, Win11, Linux, Ubuntu |

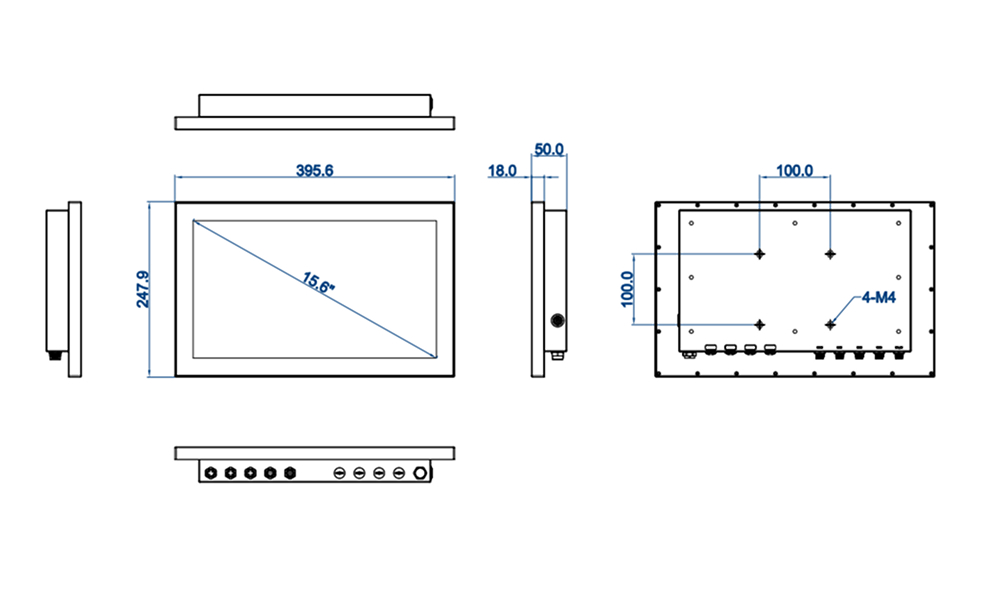

| Mounting Type | VESA 100 |
Datasheet
KRATOS-15.6P Datasheet
FULL SPECIFICATIONS
System
| CPU | Intel Elkhart Lake Celeron J6412, Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W |
| Memory | Up to 32GB SO-DIMM, Support DDR4 2666/2933/320 |
| TPM | Intel PTT TPM 2.0 |
I/O Port
| USB | 2x USB |
| Serial/Parallel | N/A |
| Audio | N/A |
| LAN | 1x RJ45 |
| Power Connector | 1 DC-IN |
| Option | N/A |
| Display Ports | N/A |
Storage
| HDD | Up to 512GB M.2 2280 M-key (PCIe x2 Gen.III, NVMe) SSD |
| Option | N/A |
Expansion
| Onboard Expansion bus | N/A |
Display
| Display Type | 15.6” TFT LCD Display |
| Max. Resolution | 1920 x 1080 (WXGA) |
Touch Screen
| Type | Projective capacitive touchscreen |
| Light Transmission (%) | N/A |
Power
| Power Input | DC 12V (Optional wide voltage DC 9~36V) |
Mechanical
| Construction | 304 stainless steel material, optional 316 stainless steel material |
| Mounting | VESA 100 |
| IP Rating | Full IP66 & IP69K |
| Net Weight | 5.6KG |
Environmental
| Operating Temperature | -20 ~ + 60 (℃) |
| Certificate | CE/FCC/ROHS |
| Operating System Support | Win10, Win11, Linux, Ubuntu |
