Front IP rated Panel PCs, Industrial, Panel PCs

Komodo-R/P-23.8-i3

These 23.8″ lightweight, front IP65 panel PCs employ the Intel i3-1115G4 CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

Categories: Front IP rated Panel PCs, Industrial, Panel PCs

Quick Spec

Display Size	23.8
Processor	Intel Core i3 1115G4
RAM	4GB – 64GB
IP Rating	Front IP65
Touchscreen	Resistive/Projected Capacitive
OS Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu
Mounting Type	Panel/VESA

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

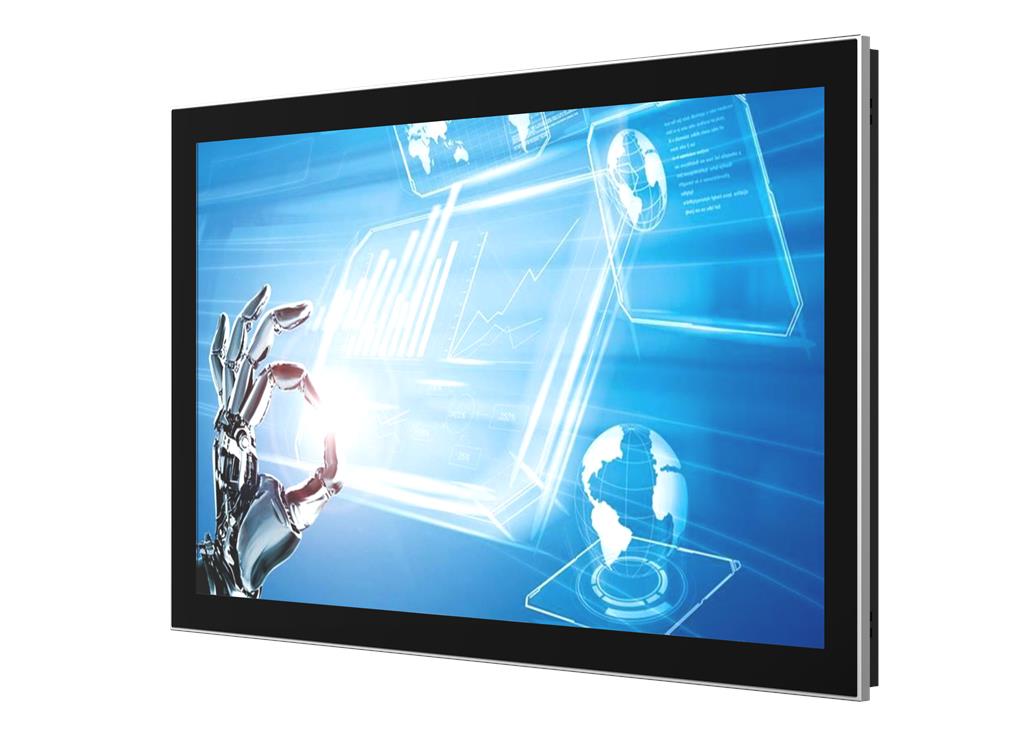

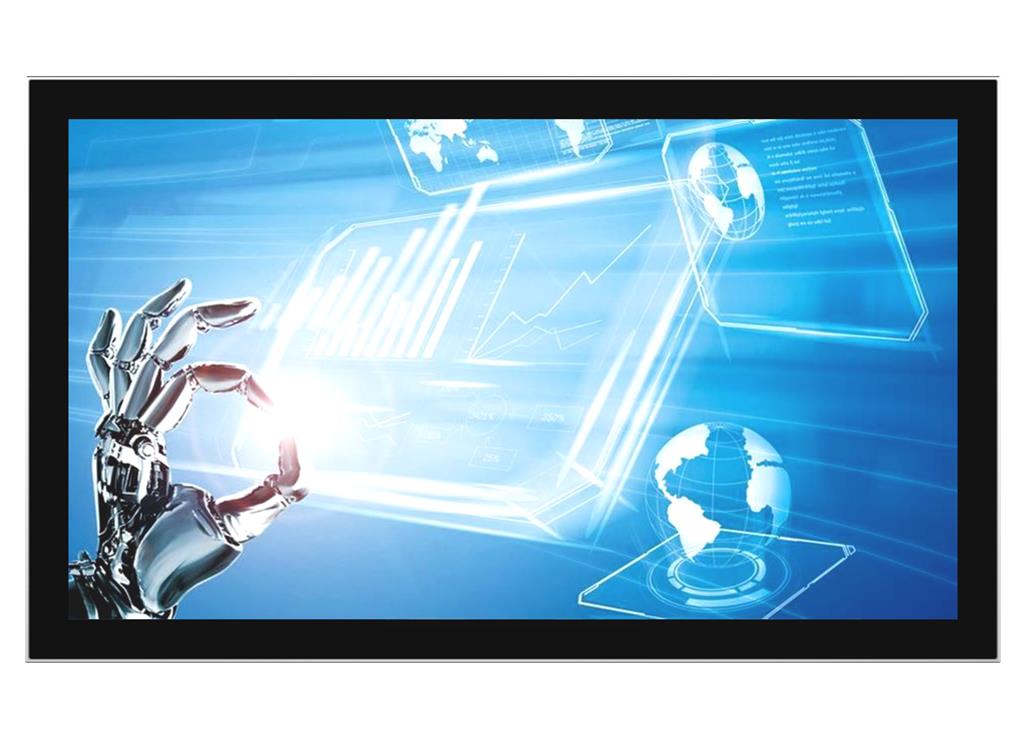

23.8” Industrial Compact Size Panel PC
Flat Front Panel Touch Screen and Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Core i3-1115G4 CPU built-in
Up to 64GB RAM
IP65 Compliant Front Panel

System

CPU	Onboard Intel i3-1115G4 Processor
Memory	Memory – Up to 64GB
TPM	TPM 2.0

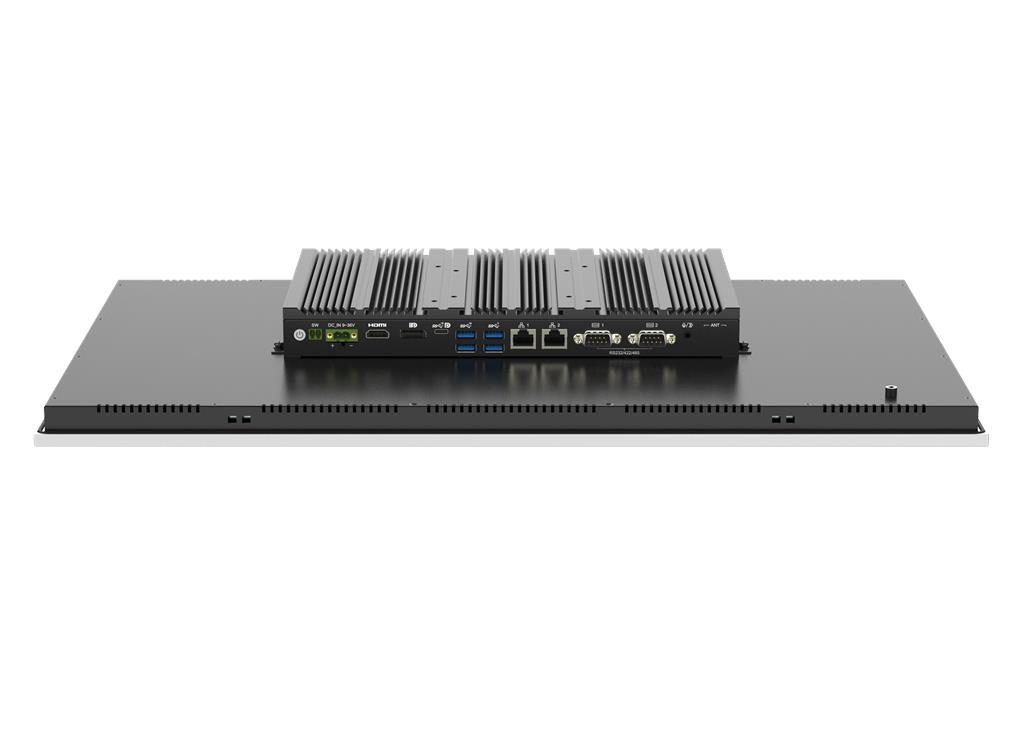

I/O Port

USB	2 x USB 3.1 type A, 2 x USB 3.0 type A
Serial/Parallel	2 x DB-9 RS-232/422/485, COM1 (default RS-232)
Audio	1 x Audio Line Out. 1 x Audio Mic In
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 3-pin for DC power input terminal 1 x 2-pin connector for power on/off button
Option	WiFi, Bluetooth, 4G/LTE, 5G

Storage

HDD	1 x m.2 2280 1 x 2.5″ SATA3 HDD bay for SATA HDD

Expansion

Onboard Expansion bus

1 x Internal Mini-PCIe slot full size

Display – based on standard display, high brightness option see datasheet

Display Type	23.8″ TFT-LCD
Max. Resolution	1920 x 1080

Touch Screen

Type	Projected Capacitive
Light Transmission (%)	Projected Capacitive Touch: 90%

Power

Power Input

DC 9~36V

Mechanical

Construction	Aluminium-magnesium alloy
Mounting	Panel Mount, VESA Mount 75/100
IP Rating	IP65 Compliant Front Bezel
Net Weight	7.6kg

Environmental

Operating Temperature	-0~50°C
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu
