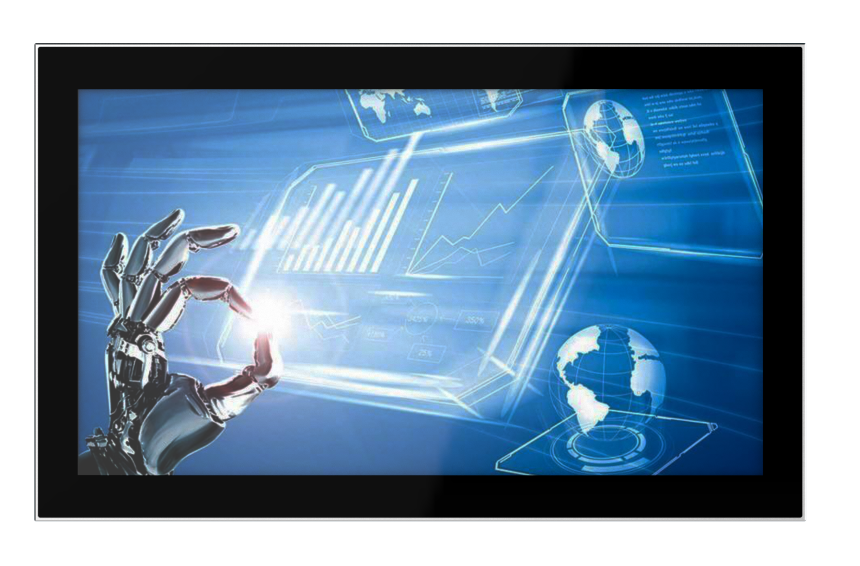

- Widescreen 18.5” industrial touchscreen display
- Intel 11th gen Celeron i3/i5/i7 processor
- Up to 32GB RAM
- Fanless & slim design
- Front IP65 protection

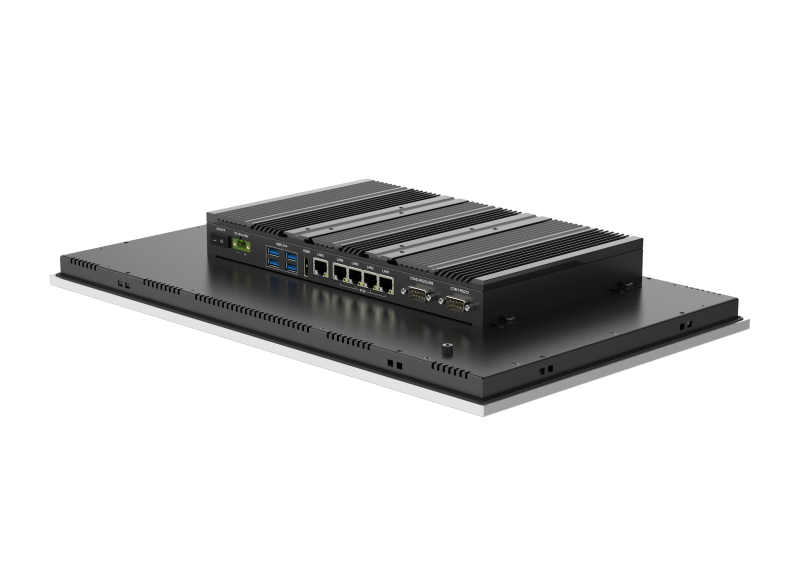

- 5 LAN ports (4 support PoE), 4 USB 3.0, 2 COM, 1 HDMI
- DC 9~36V wide ranging power input with over-current, over-voltage and polarity protection
Front IP rated Panel PCs, Industrial
Komodo Plus-185
Komodo Plus-185
The 18.5″, front IP65 panel PCs are equipped with the Intel 11th gen Celeron processor and 5 LAN ports. They support both panel and VESA mounting options, boasting a sleek and modern design. Perfectly suited for demanding industrial settings.
Quick Spec
| Display Size | 18.5'' |
|---|---|
| IP Rating | Front IP65 |
| CPU | i3/i5/i7 11th gen |
| Touchscreen | Projected Capacitive |
| Mounting Type | Panel Mount / VESA |
| LAN | 5 LAN ports (4 support PoE) |
Datasheet
Komodo Plus-185
Hardware & System
| BIOS | SPI AMI EEI BIOS |
| CPU | Intel 11th Gen. Tiger Lake UP3 Celeron 6305E, Core i3-1115G4, Core i5-1135G7, Core i7-1165G7 |
| Memory | SO-DIMM, DDR4, max. up to 32GB |
| Storage | 1* M.2 2280 M-key+ 1* 2.5” SATA 3.0 |
| Graphic | Intel UHD Graphics or Intel Iris Xe Graphics |
| Network | 5* Intel I211AT (Optional 3G/4G/Wi-Fi) |
| Expansion | 1* Full size Mini-PCIe slot |
| Watch dog | 0~256 seconds programmable |
| OS | Win10, Win11, Linux |

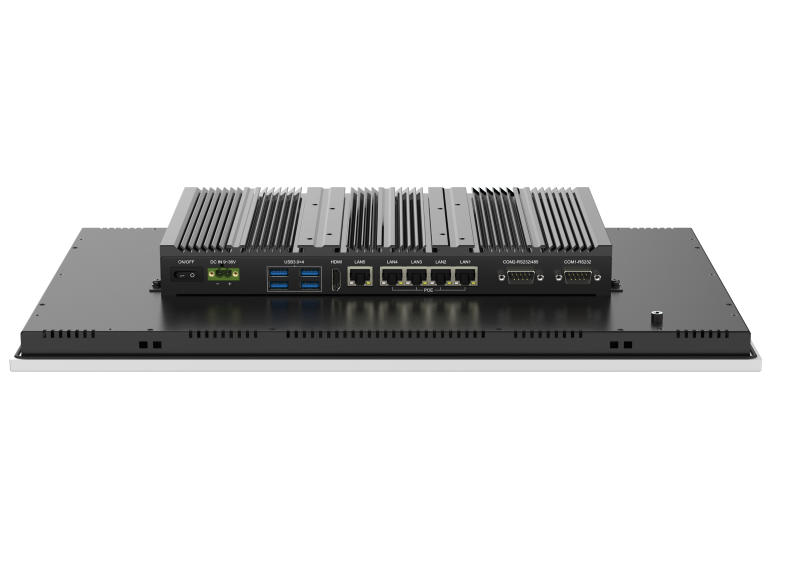

IO interface
| COM | 2 * RS232 (Optional 1* RS485) |
| Ethernet | 5* RJ45, 10/100/1000 Mbps, 4* Support PoE 802.3 AF (Single port max. up to 15.4W, total less than 45W) |
| USB | 4x USB3.0 |
| Display | 1x HDMI |
| Power | 1x 2 pins, phenix terminal |
LCD Display
| Size/Type | 18.5” TFT LCD |
| Resolution | 1366 * 768 (WXGA) / 1920 x 1080 (HD) |
| Brightness | 250 nits / 350 nits (HD) |
| Backlit & MTBF | LED backlit & 50 000 hours |
| Display area | 409.8 * 230.4 mm |
| View angle | 85/85/80/80 or 85/85/85/85 (HD) |
Touchscreen
| Type | Projective capacitive touchscreen |
| Touch points | Multi points touch, max. up to 10 points |
| Durability | >100 000 000 times |
| Surface hardness | Mohs 6H |
| Special treatment | Anti-fingerprint (AF) |
Structure
| Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
| Mount method | Panel mount, VESA 75/100 |

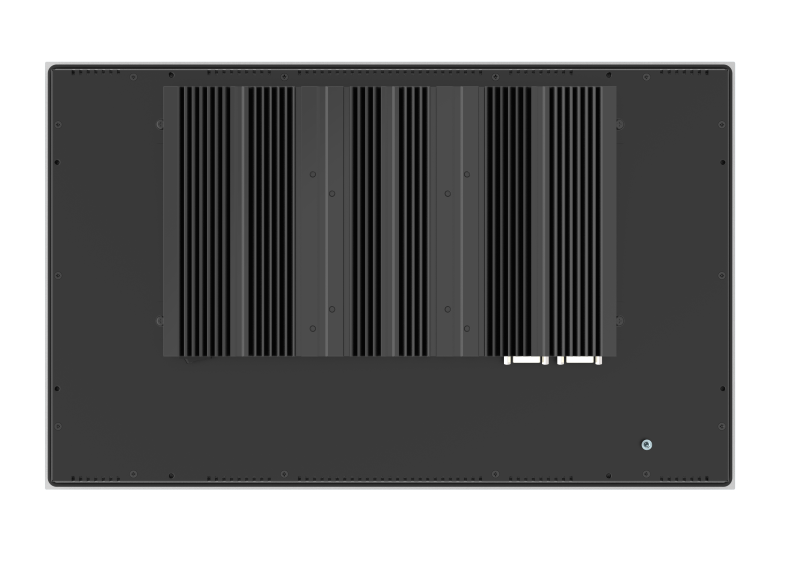

| Cooling system | Large area finned heat sink |
| Overall dimension | 462.4 * 296.6 * 57.5 (mm) |
| Cut-out dimension | 451 * 276 (mm) |
| Net weight | 5.6 KG |
| IP protection | Front Panel IP65 |
Power & Environmental
| Operating temp. | 0～+50℃ / -20～+60℃ (HD) |
| Storage temp. | 20～+60℃ / -30～+70℃ (HD) |
| Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
| Shock | 10G/Peak (11 ms) |
| Power input | DC 9~36V |
| Power consumption | Around 40W |
| EMC | CE/FCC Class A |
