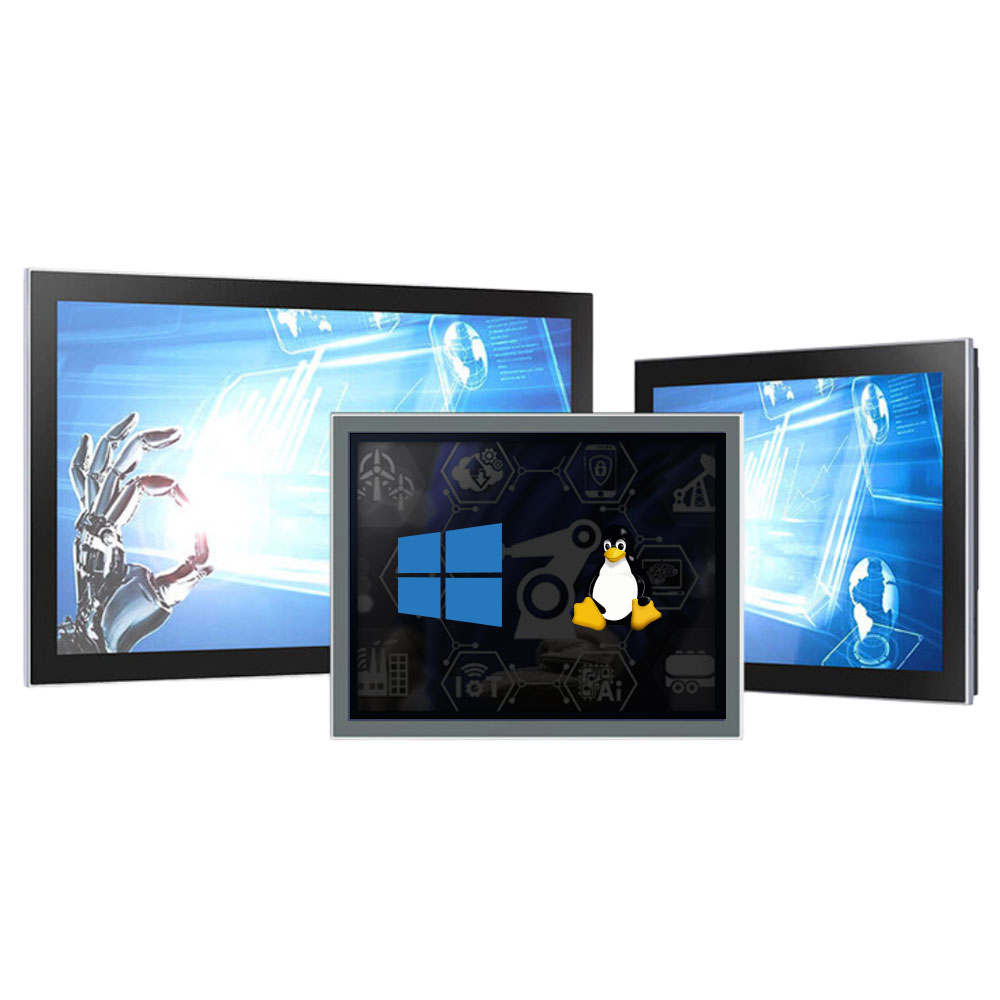

Komodo Panel PC


These lightweight aluminium, front IP65 Panel PCs can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

SKU: N/A Category:

Need Help? Contact Us

01462 374102

[email protected]
  • 15″ – 23.8″
  • Intel Core i3/i5/i7
  • Front IP65
  • Panel/VESA

Resolution/Aspect Ratio & Environment

The Komodo Panel PC range is available in a wide range of aspect ratios and resolutions to support the needs of new 16:9/16:10 and historic 4:3 applications. From 15”-23.8” screen sizes, with varying different resolutions up to 1920 x 1080, we have something to suit every need. Constructed from aluminium-magnesium alloy, these slim, front IP65 rated systems are fanless, making them perfect for industrial environments. The Komodo range is manufactured to the highest standards, with a focus on reliability and longevity. All systems are supplied with an AC/DC PSU but support 9-36v DC power input if a supply is already present.

I/O & Mounting

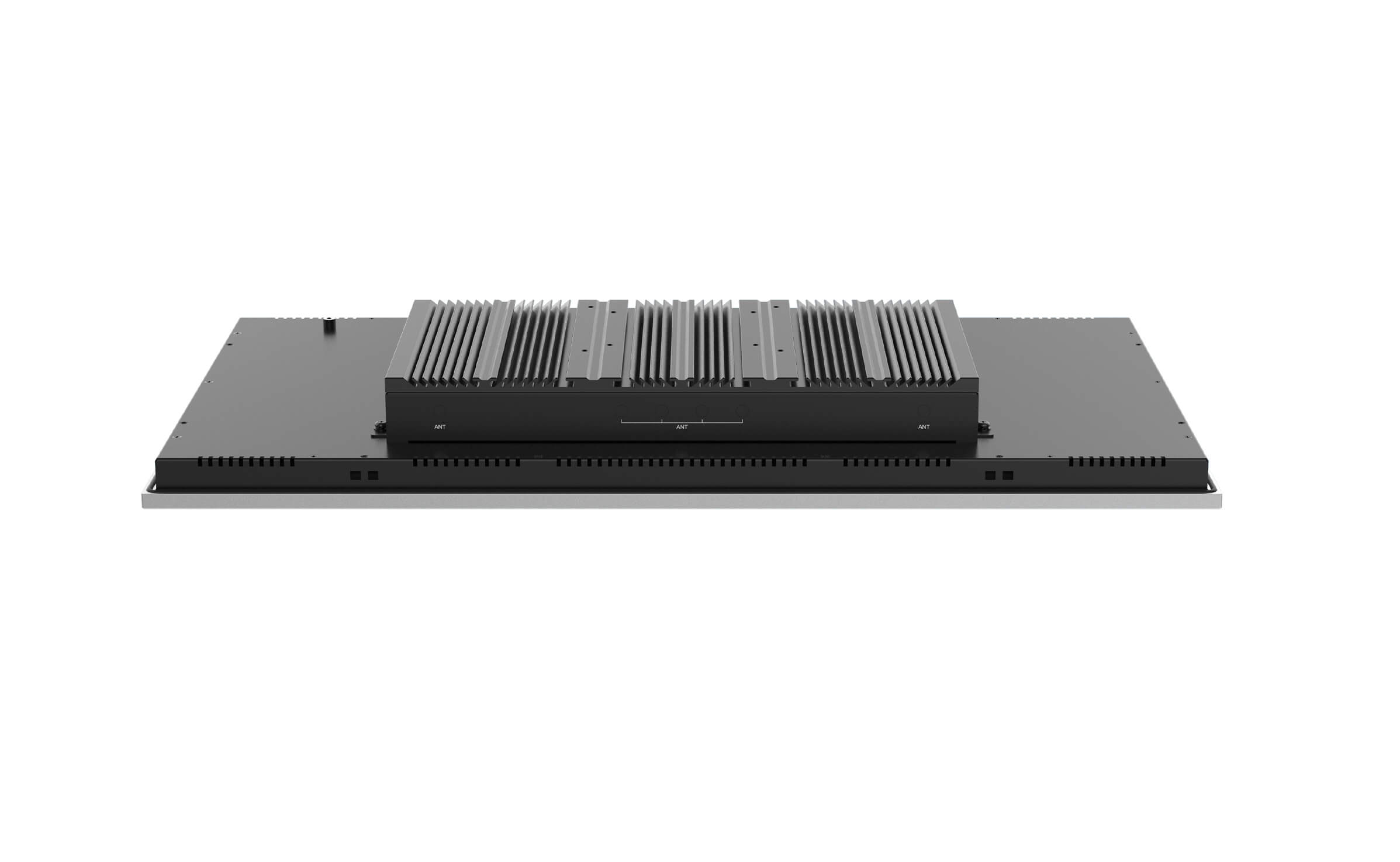

All sizes feature down facing USB, LAN, and serial connections at the back of the unit, as well as a display out port (DP/HDMI) for dual screen support. Located on the I/O panel, there will also be a 2-pin connector to add a power button if required. The Komodo Panel PC is compatible with both panel and VESA mounting to allow for seamless integration in any environment. Supplied with mounting lugs for easy panel mount installation, and a rubber gasket to ensure the front IP65 rating is retained.

High Performance

The Komodo is powered by 11th Generation Core i3/i5/i7 processors of the ‘Tiger Lake’ series, designed to provide the latest performance levels to your industrial application with the optimum power balance. The integrated Intel Iris Xe Graphics built with innovative GPU architecture are able to optimize image and video handling capabilities.

It supports TPM2.0 (PTT2.0) and  therefore Windows 11 series Operating systems, with 2x M.2 high speed and 1x Mini-PCIe expansional modules to supports WiFI/BT, 3G/4G, and 5G cellular connectivity.
