Komodo 2-R-21.5 The Komodo 2-R-21.5 Resistive Panel PC is a wide-format industrial computing platform built from a modular, fanless aluminium-magnesium alloy chassis, designed for reliable long-term deployment in demanding industrial environments. The 21.5″” Full HD 1920×1080 TFT LCD display with LED backlighting delivers sharp, clear visuals across supervisory control, process monitoring, and operator interface applications where screen real estate matters.
The resistive touchscreen ensures dependable input in environments where operators wear PPE or where liquids and surface contamination are a regular concern. The IP66-rated front panel provides robust protection against dust and water ingress, making the unit well-suited to food processing, chemical handling, heavy manufacturing, and similarly harsh settings.

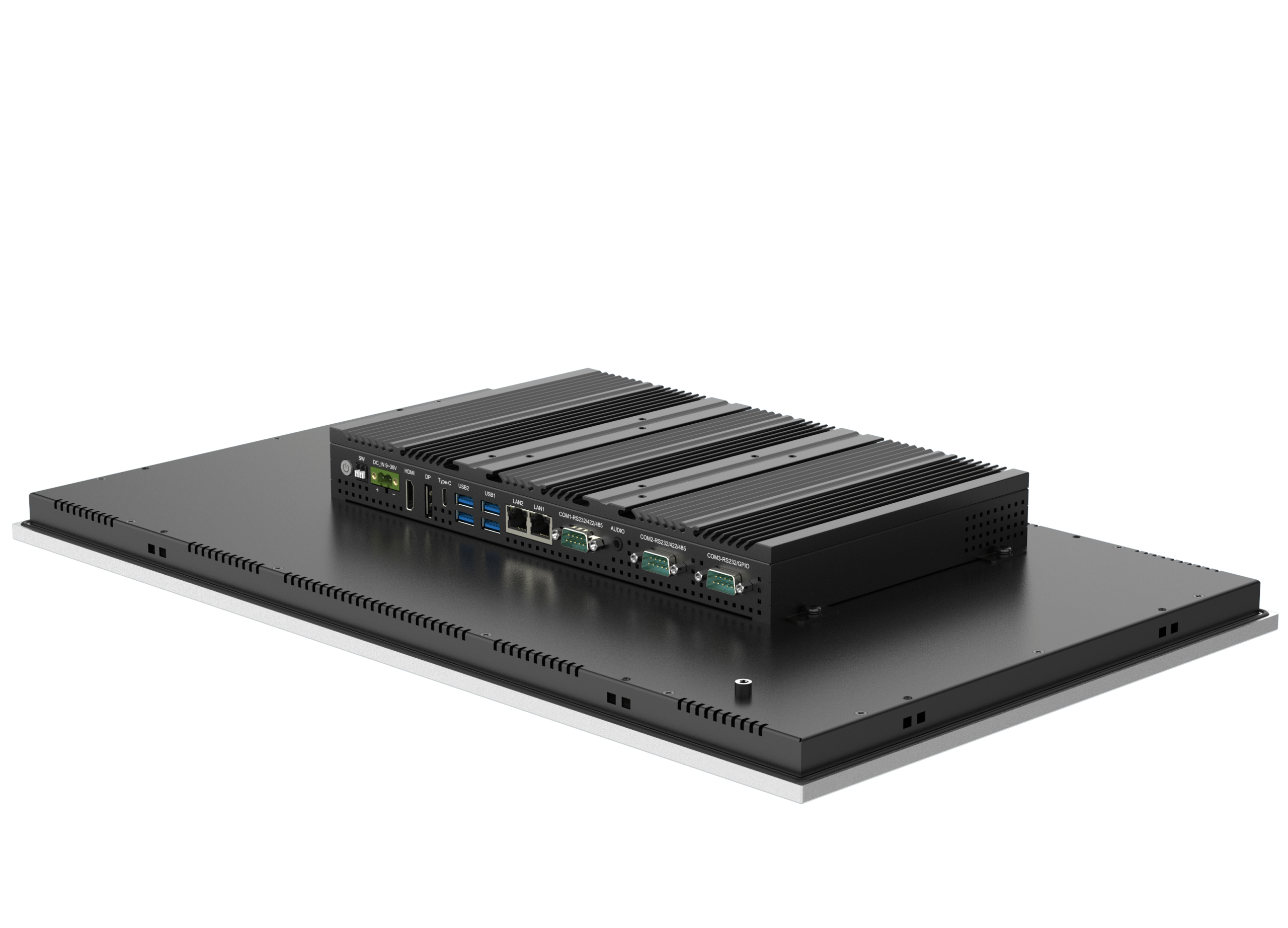

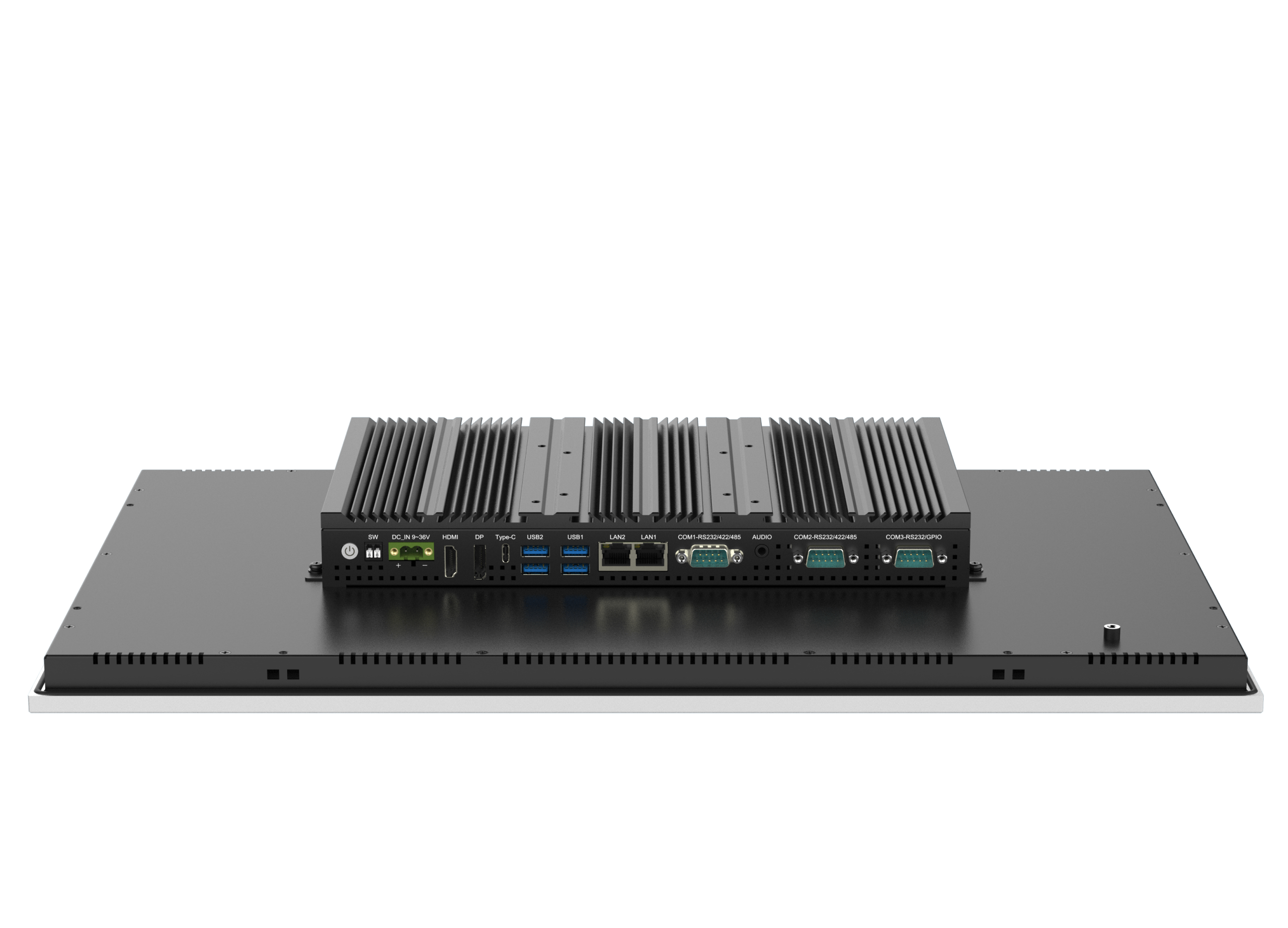

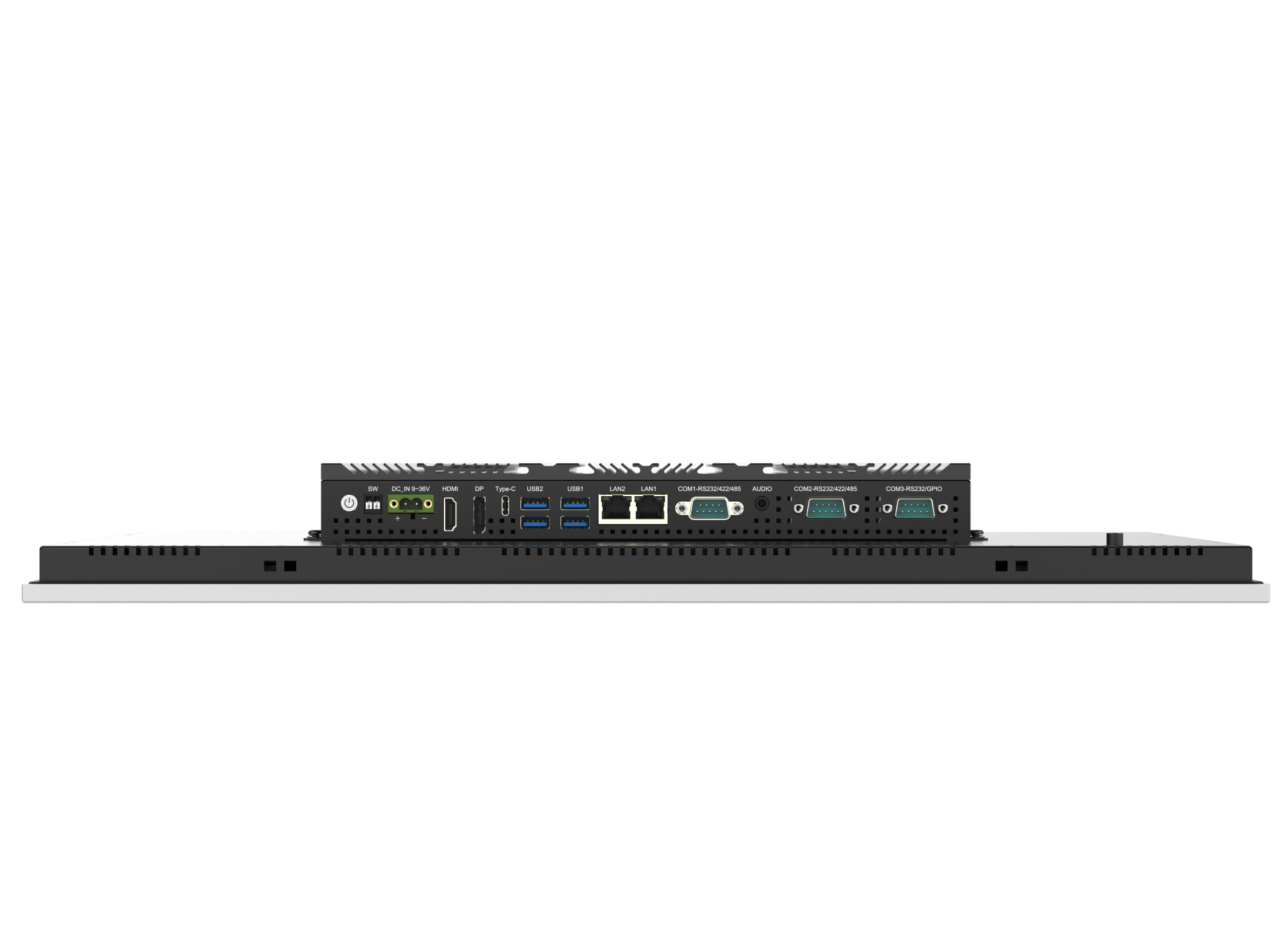

Powered by Intel® 12th Generation Alder Lake-U processors – available in Core i3, i5, or i7 configurations – the system handles demanding automation workloads, edge computing, and real-time data processing with ease. Connectivity includes dual RJ45, two USB 3.1, two USB 3.0, two COM ports, HDMI, DisplayPort, audio, and a USB Type-C port supporting both USB 3.1 and DP 1.4a. A wide 9-36V DC terminal input, Intel PTT TPM 2.0, and Windows 11 support are standard, with optional M.2 and Mini-PCIe expansion slots available for additional flexibility. Panel and VESA 75/100 mounting options allow straightforward integration into control cabinets and operator stations.
