GILA-10.1

These 10.1″ lightweight aluminium, front IP65 panel PCs employ the Intel J6412 and can be panel or VESA mounted for a sleek built-in feel. Perfect for indoor industrial environments.

Categories: Front IP rated Panel PCs, Industrial, Panel PCs

Quick Spec

Display Size	10.1"
Processor	Intel Celeron J6412
RAM	4GB – 32GB
IP Rating	Front IP65
Touchscreen	Resistive/Projected Capacitive
OS Support	Windows 10 – Windows 11
Mounting Type	Panel/VESA

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

10.1″ Industrial Compact Size Panel PC
Upto 32Gb RAM
Flat Front Panel Touch Screen and Fanless Design
Intel Celeron J6412
Front IP65 Compliant Bezel
Supports Windows 10-11

System

CPU	Intel Celeron J6412
Memory	up to 32GB DDR4 3200MHz DDR4

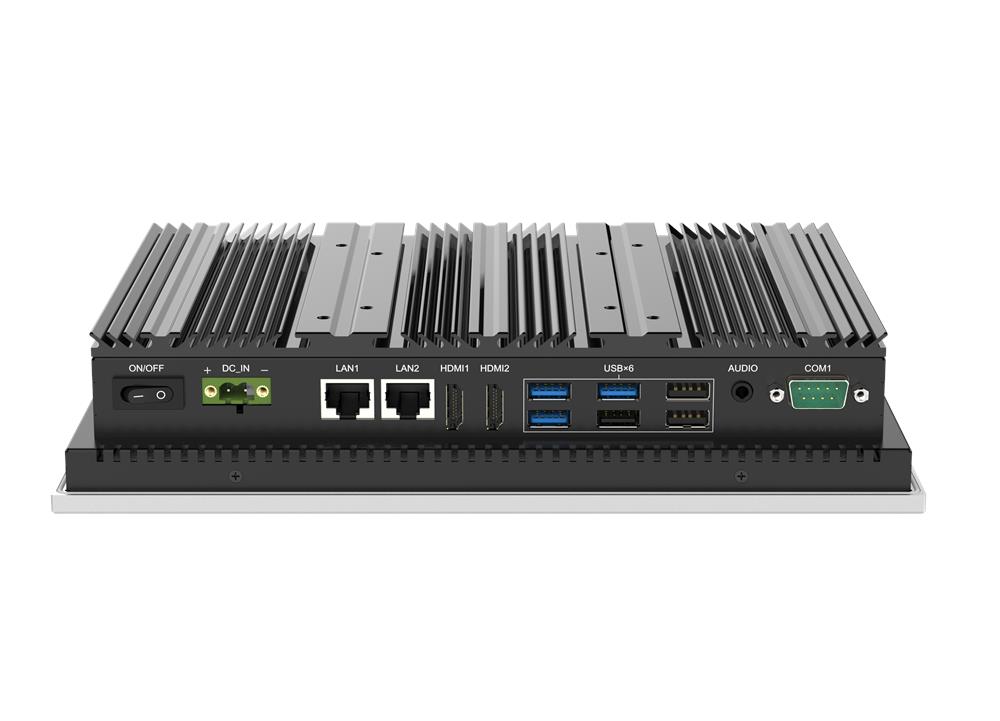

I/O Port

USB	3x USB 3.0, 2 x USB 2.0 type A
Serial/Parallel	1 x DB-9 RS-232/422/485, COM1 (default RS-232)
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 2-pin for DC power input terminal

Storage

1 x M.2 2280 M Key

Display – based on standard display, high brightness option see datasheet

Display Type	10.1″ TFT-LCD
Max. Resolution	1280 x 800

Touch Screen

Type	Projected Capacitive / Resistive

Power

Power Input

DC 12 (Optional 9~36V)

Mechanical

Construction	Magnesium-Aluminum Alloy

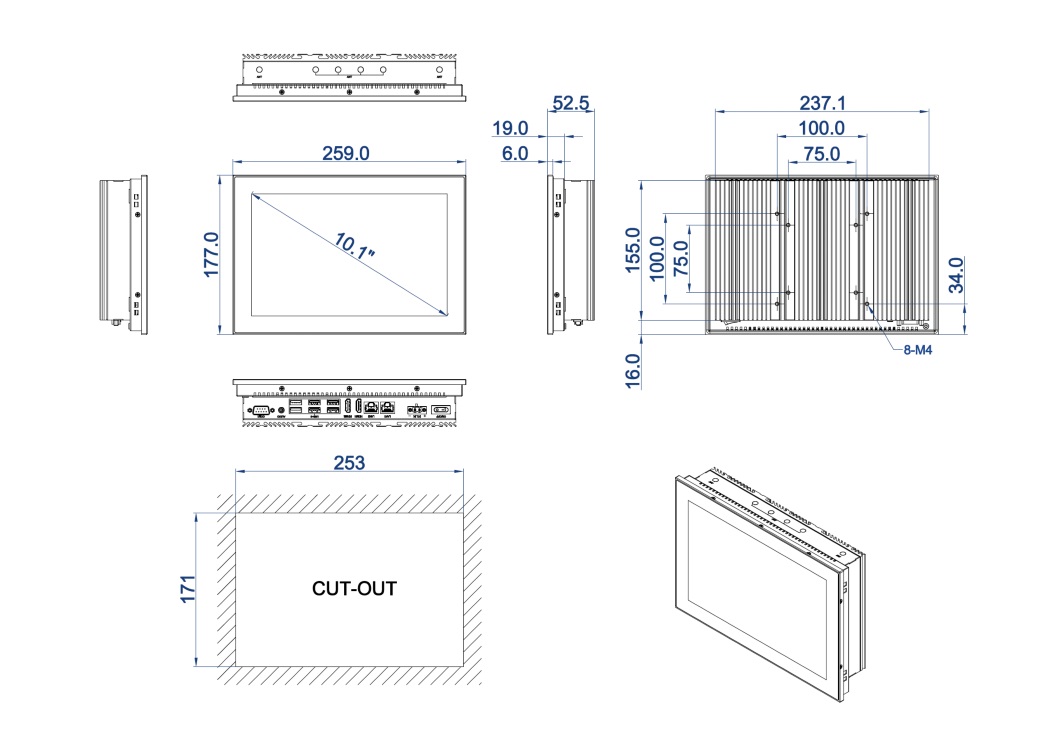

Mounting	Panel Mount, VESA Mount 75 x 75/100 x 100
IP Rating	IP65 Compliant Front Bezel
Net Weight	3kg

Environmental

Operating Temperature	-20°C~70°C
Certificate	CE/FCC Class A
Operating System Support	Windows 10-11, Linux
