Front IP rated Panel PCs, Industrial, Panel PCs

FABS-819B/P

These 19″ lightweight stainless-steel, front IP66/IP69K panel PCs employ the Intel Celeron J6412 CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for the food and beverage industry.

Categories: Front IP rated Panel PCs, Industrial, Panel PCs

Quick Spec

Display Size	19"
Processor	Intel Celeron J6412
RAM	4GB – 8GB
IP Rating	Front IP66/IP69K
Touchscreen	Projected Capacitive
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Mounting Type	Panel/VESA

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

19” Industrial Compact Size Panel PC
Stainless-Steel Bezel
Flat Front Panel Touch Screen and Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Celeron J6412 CPU built-in
Up to 8GB RAM
IP66/IP69K Compliant Front Panel

System

CPU	Onboard Intel Celeron J6412 Processor
Memory	Onboard 4GB DDR3L SDRAM

I/O Port

USB	2 x USB 3.0 type A
Serial/Parallel	1 x DB-9 RS-232/422/485, COM1 (default RS-232) 1 x RS-232 DB-9 (COM2)
Audio	1 x Audio Line Out
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 3-pin for DC power input terminal 1 x 2-pin connector for power on/off button

Storage

HDD	1 x 2.5″ SATA3 HDD bay for SATA HDD (Easy Accessible)
Others	1 x internal SD slot onboard

Expansion

Expansion slot	1 x Internal Mini-PCIe slot full size
Display	based on standard display, high brightness option see datasheet
Display Type	19″ TFT-LCD
Max. Resolution	1280 x 1024

Touch Screen

Type	Projected Capacitive / Glass
Light Transmission (%)	over 90%

Power

Power Input

DC 9~36V

Mechanical

Construction	304 Stainless steel front bezel (316 option) Aluminium die-cast chassis

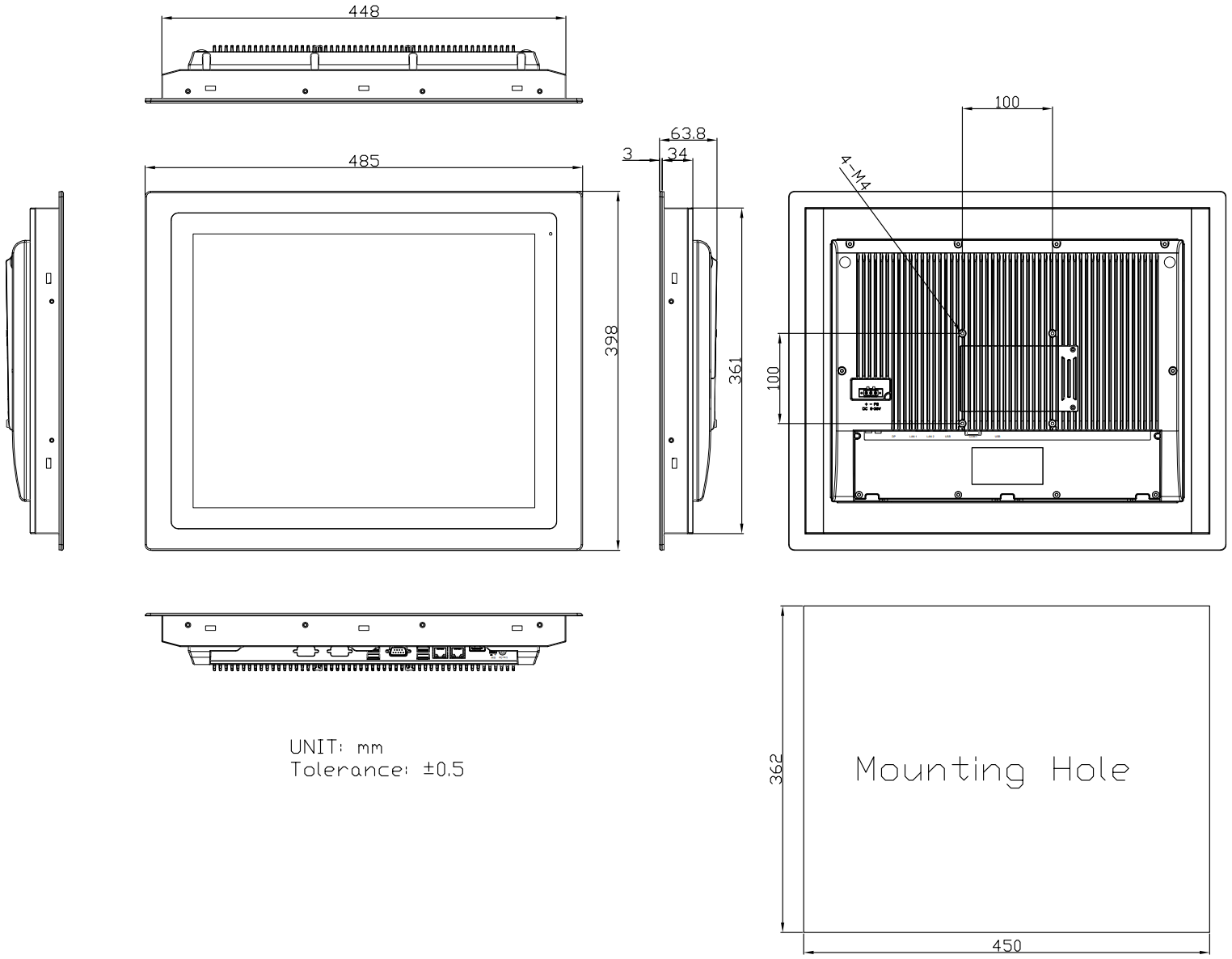

Mounting	Panel Mount, VESA Mount 100 x 100
IP Rating	Front Panel IP66/IP69K
Net Weight	7.7kg

Environmental

Operating Temperature	0~50°C/-20~60°C (option)
Certificate	CE/FCC Class A/EN 1672-2
Operating System Support	Windows 10 Pro/IoT, Linux, Ubuntu

Mounting-a-Panel-PC.pdf
