- 16:9 Ratio with 15.6” True-Flat PCAP touch
- Cortex-A17 RK3288 Quad-core Processor
- Antibacterial Plastics
- Fanless & Front Panel IP65
- Support Wide-Range Voltage DC power input
- Support Handset for the Service Call
Medical
CarePress 21.5 Datasheet

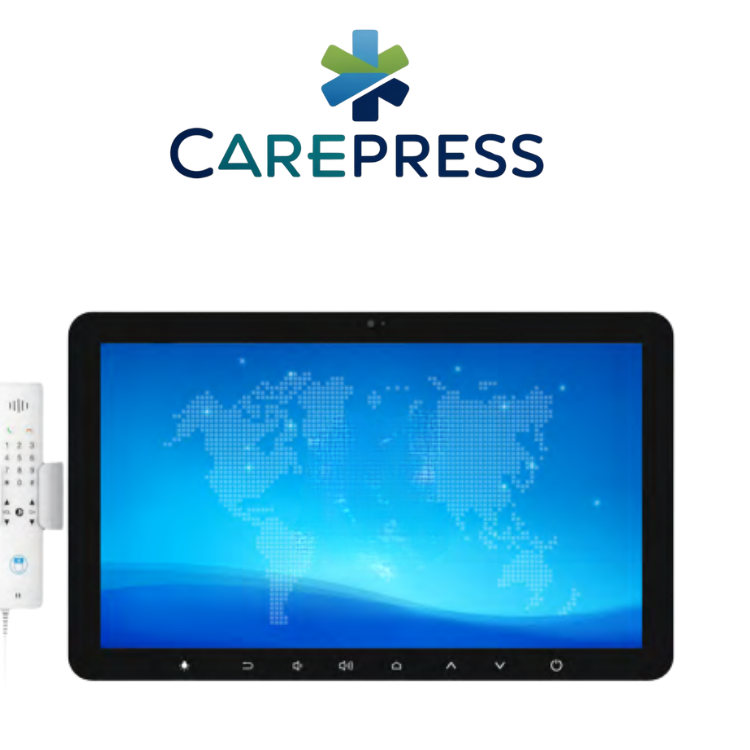

CarePress 21.5
21.5″ Smart Bedside Android Touch Panel PC
Quick Spec
| Display Size | 21.5" |
|---|---|
| Processor | Cortex-A17 RK3288 Quad-core Processor |
| RAM | 4GB LPDDR4 |
| Operating System | Android 12 |
Datasheet
CarePress 21.5 Datasheet
540(L) X330(W) x 48(H) mm
| Display | |
|---|---|
| Display Type | 21.5” TFT LCD |
| Resolution | 1920 × 1080 |
| Brightness | 350 nits |
| Touch Panel | 10 Points Multiple PCAP touch |
| Aspect Ratio | 16:9 |
| Main System | |
| CPU | Rockchip3399, Quad-Core A53, up to 1.4GHz |
| GPU | Mali-T860MP4 |
| Memory | 4GB LPDDR4 |
| Storage | 64GB eMMC (32GB, 128GB optional) |
| OS Support | Android 12 |
| Terminal back I/O Ports | 1 × DC-In 1 × Mini USB (OTG) 1 × RJ-45 (Support PoE Function) 1 × RJ11 |
| Terminal bottom I/O Ports | 2 × Earphone Jack 1 × Reset 1 × USB2.0 |
| Function Support | IEEE 802.11 b/g/n/ac, Dual-band 2.4GHz & 5GHz Bluetooth 4.0 RFID |
| Physical | |
| Camera | Front: 13MP CMOS Camera Support ATSC, DVB-T2, ISDB-T (optional) |
| Function Key | Power, Vol+, Vol-, Channel+, Channel-, Home, Return |
| Internal Speaker | 2 × 8Ω / 3W |
| Power Adapter | 12V DC (9~36V) |
| Mounting | VESA 75 × 75 / 100 × 100 (mm) |
| Housing | Plastic |
| Standard Accessory | Power Adapter (ADA12D0) Handset (AHAND01) |
| Product Dimension | 540(L) × 330(W) × 48(H) mm |
| Product Weight | 4.8 kg |
| Environment | |
| Rugged Feature | Front IP65 |
| Certification | CE, FCC, RCM, CSA |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 80% RH non-condensing |
