- 23.8″ Full HD 10 Points PCAP Touch
- Socket Raptor Lake-PS Intel® Core™ 5 Processor 120UL
- Medical LED Reading Light Bar

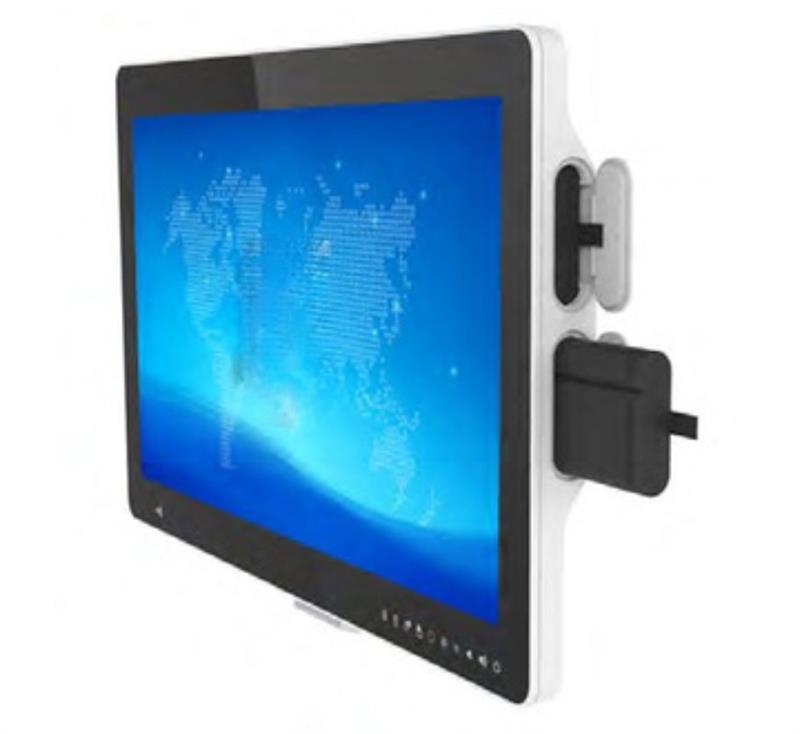

- Support 2 x 6800mAh Hot Swappable Batteries
- Built-in NFC RFID Module
- Optional Barcode, Privacy Screen & Charging Bay
Medical
CareCharge Datasheet

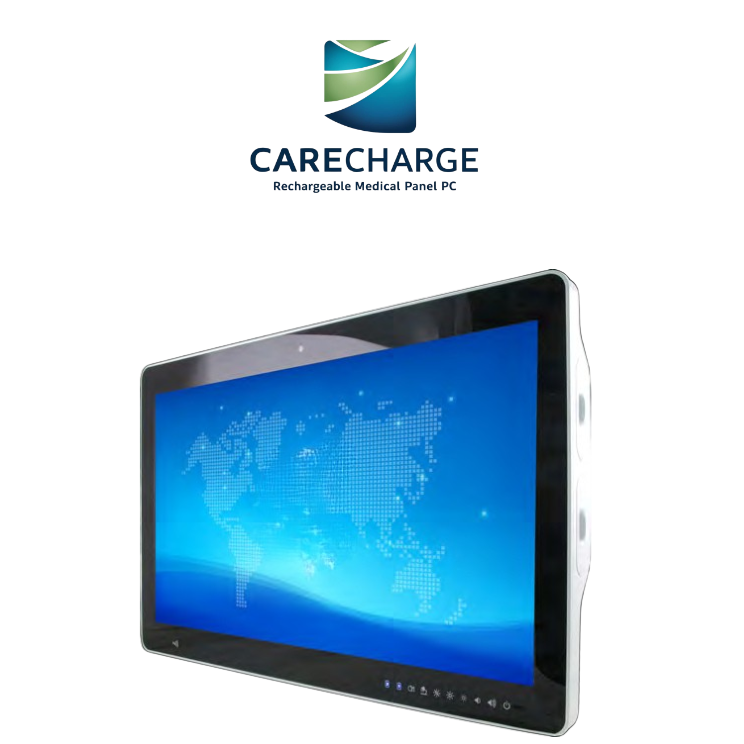

CareCharge
Rechargeable Medical panel PC 23.8″
Quick Spec
| Display Size | 23.8" |
|---|---|
| Processor | Intel® Core™ 5 processor 120UL |
| RAM | 1 x 262-pin DDR5 4800MHz SO-DIMM 8GB |
| Operating System | Win10 / Win11/ Linux |
Datasheet
CareCharge Datasheet
592 x 382 x 49.5 mm
| Display | |
|---|---|
| Display Type | 23.8” TFT LCD |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Touch Panel | 10 Points Projected Capacitive Touch |
| Viewing Angle | -89° ~ 89°(H) ; -89° ~ 89°(V) |
| Contrast Ratio | 3000:1 |
| Main System | |
| Processor | Intel® Core™ 5 processor 120UL Intel® Core™ 7 processor 160UL (optional) |
| GPU | Intel® Graphics |
| Memory | 1 x 262-pin DDR5 4800MHz SO-DIMM 8GB |
| Storage | 1 x M.2 Key M 2280 (PCI-e x4) 256GB SSD |
| Expansion Card | 1 x M.2 Key B 3042/3052/2280 with 1 x PCIe x 2 & 1 x USB 3.0/2.0 signal for Capture (Optional) 1 x M.2 Key E 2230 support WiFi module 1 x M.2 Key M (PCI-e x4 only) for storage |
| I/O Ports | 2 x LAN (2 x I226LM 2.5 Gigabit Ethernet) 1 x USB2.0 3 x USB3.2 Gen2x1 (10Gbp/s) 1 x USB Type C (Output for USB 3.1 & Display, 5V/3A 15W, No power receiving function) 1 x DC-In |
| Operating System | Win10 / Win11 / Linux |
| Physical | |
| Camera | 5MP Front Camera with Auto-Focus |
| Speaker | 2 x 2W |
| Mounting | VESA Mount 75 x 75 mm & 100 x 100 mm |
| Color | White |
| Dimensions (WxHxD) | 592 x 382 x 49.5 mm |
| Weight | 6.9 kg |
| Enclosure | Plastic with Anti-Microbial |
| Button | 1 x Power On/Off 2 x Vol + & Vol – 2 x Brightness + & Brightness – 1 x Blacklight Icon 1 x Reading Light Icon 1 x Touch Screen Icon 2 x Battery Status Icon |
| Battery | 2 x 14.4 V / 6800mAh Hot Swappable Li-ion Battery |
| Using Time | 6 Hours |
| Power Mode | ATX |
| Power Adapter | Medical Grade DC 24V/1.5A, 36W |
| Communication | Intel Wi-Fi 6E AX210 Bluetooth 5.0 Wake-on-LAN |
| Security | Watchdog |
| Data Collection | Barcode Scanner (Optional) |
| Standard Accessory | 1 x Power Adapter |
| Environment | |
| IP Rating | Front IP65 |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
| Shock Test | With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| Certification | CE, FCC, CB, UL60601-1 |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 60°C (14°F ~ 140°F) |
| Relative Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Warranty | 2 Years |
