Panel PCs

CAIMAN-10.1

These 10.1″ lightweight aluminium, front IP65 panel PCs employ the ARM Rockchip RK3568 and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

Category: Panel PCs

Quick Spec

Display Size	10.1"
Processor	ARM Rockchip RK3568
RAM	2GB – 8GB
IP Rating	Front IP65
Touchscreen	Resistive/Projected Capacitive
OS Support	Android 11
Mounting Type	VESA/Panel

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

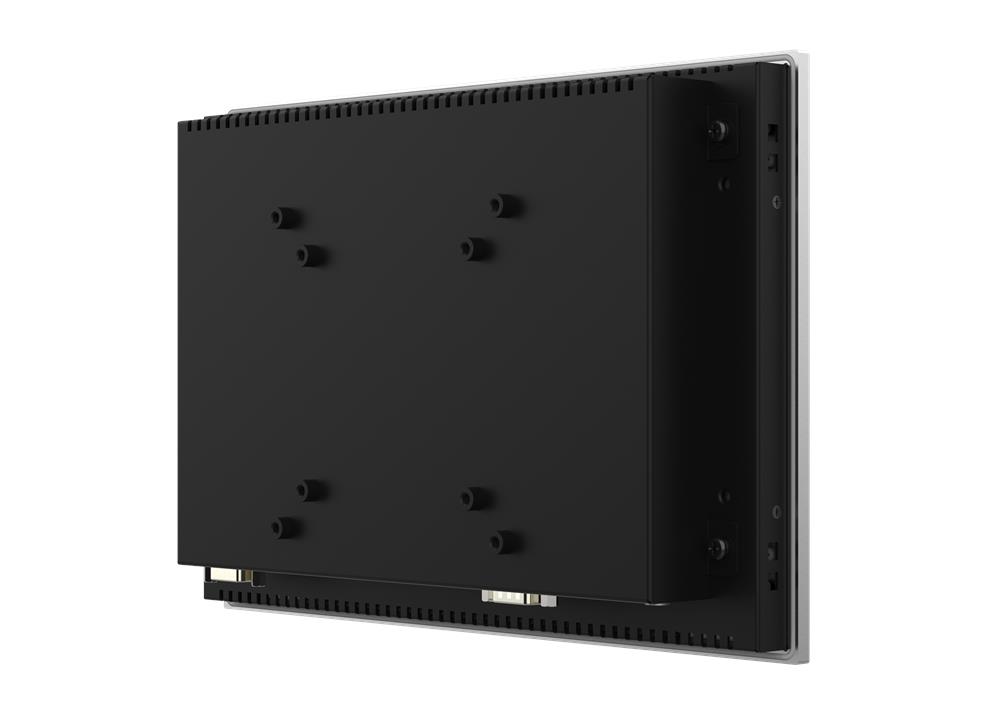

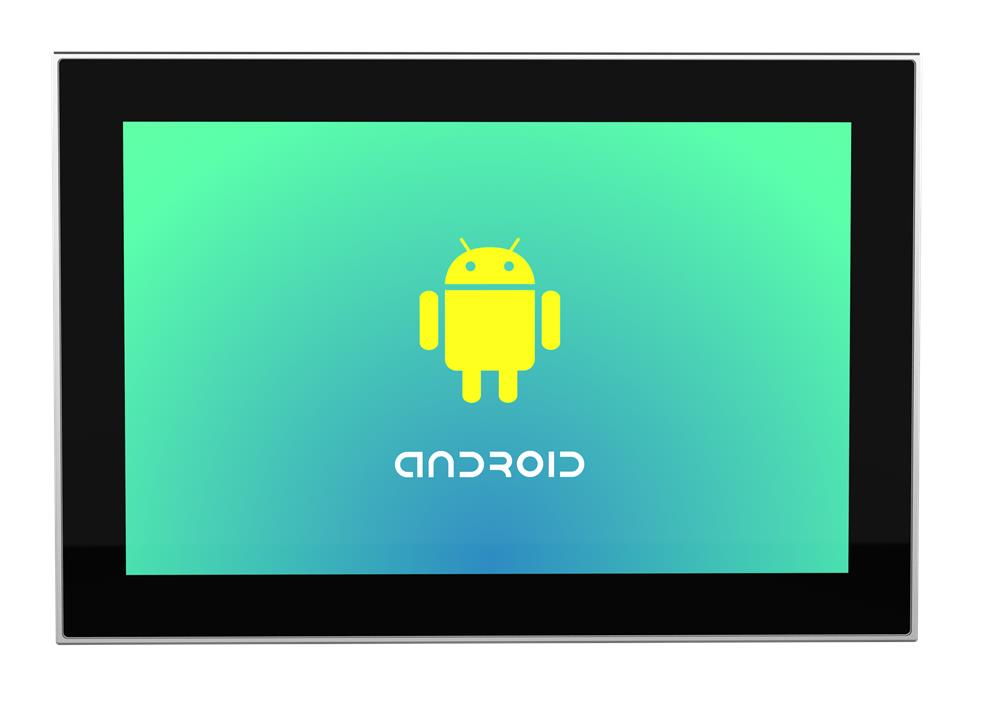

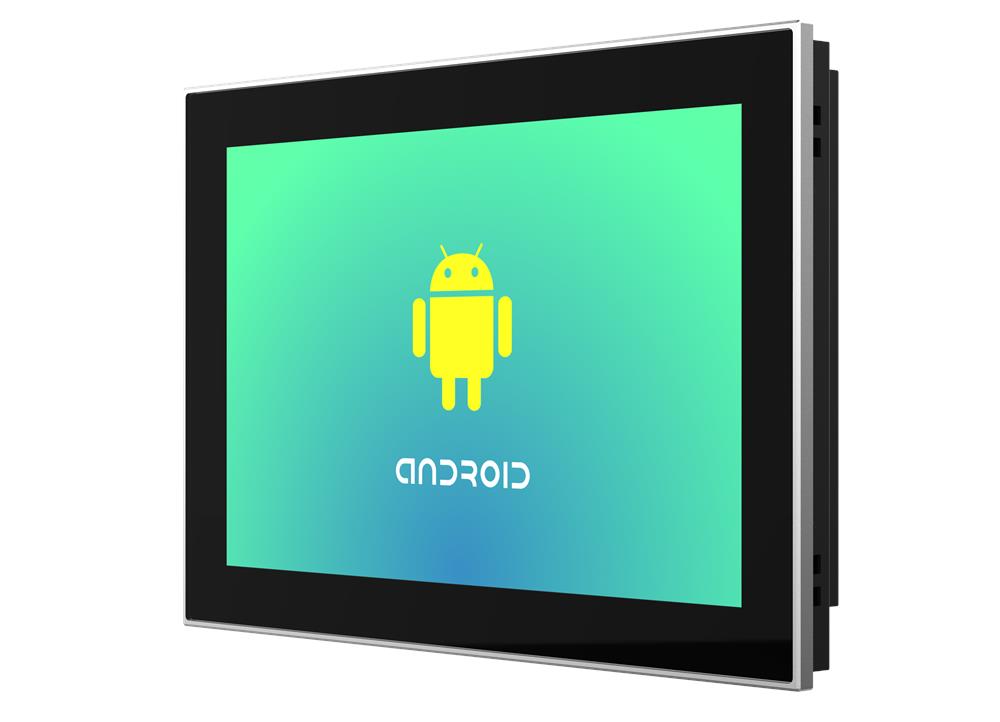

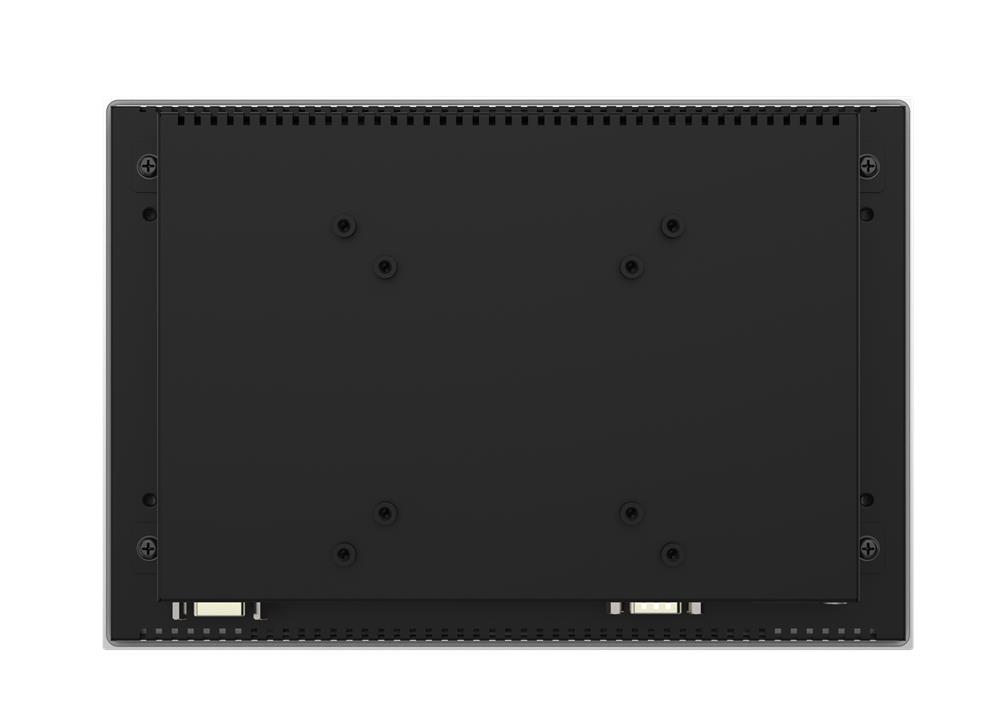

10.1″ Industrial Compact Size Panel PC
Upto 8Gb RAM
Flat Front Panel Touch Screen and Fanless Design
ARM Rockchip RK3568
Front IP65 Compliant Bezel
Supports Android 11

System

CPU	ARM Rockchip RK3568
Memory	up to 8GB DDR4 3200MHz On Board

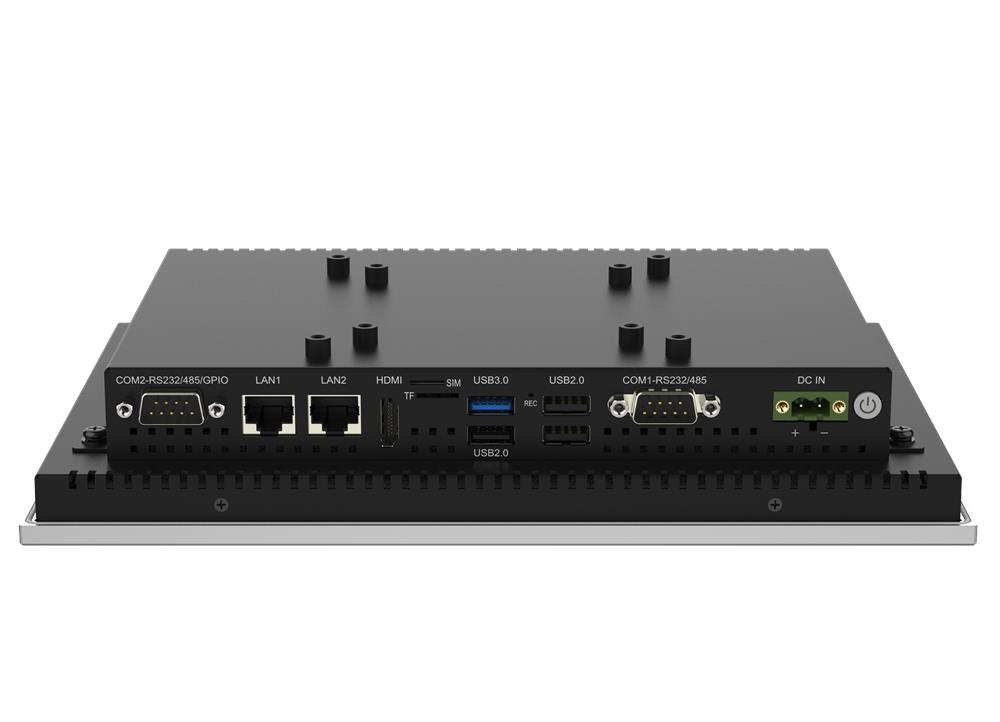

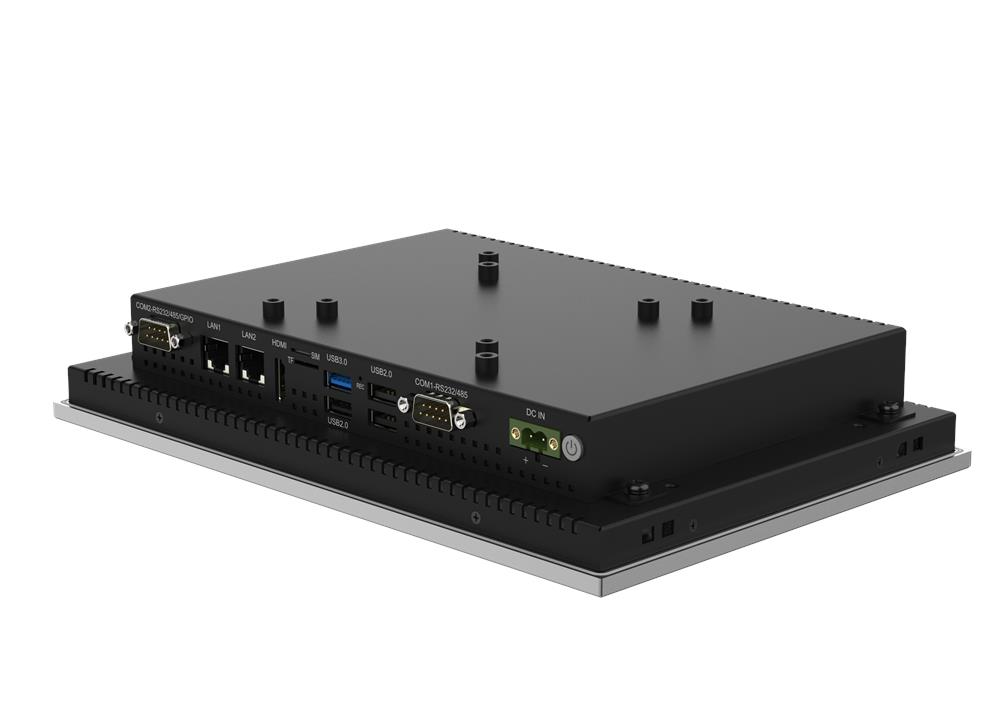

I/O Port

USB	1x USB 3.0, 3 x USB 2.0 type A
Serial/Parallel	2 x DB-9 RS-232/422/485, COM1 (default RS-232) COM2 (optional support RS-485/GPIO)
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 2-pin for DC power input terminal

Storage

eMMC Onboard Upto 64Gb

Display – based on standard display, high brightness option see datasheet

Display Type	10.1″ TFT-LCD
Max. Resolution	1280 x 800

Touch Screen

Type	Projected Capacitive / Resistive

Power

Power Input

DC 12 (Optional 9~36V)

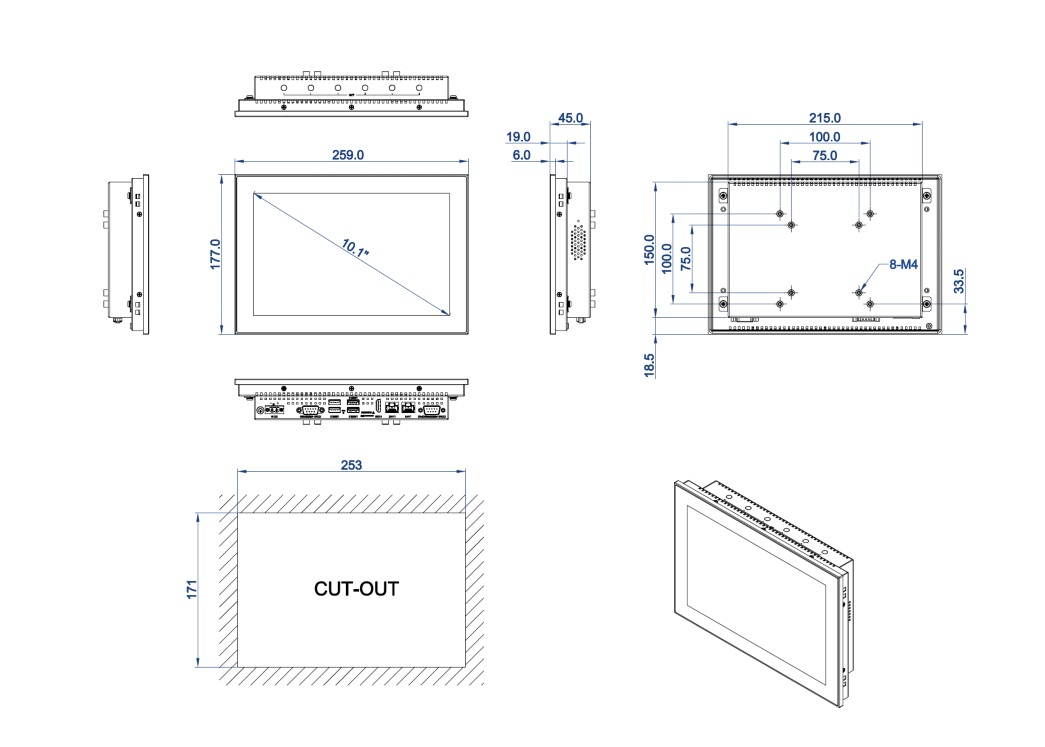

Mechanical

Construction	Magnesium-Aluminum Alloy
Mounting	Panel Mount, VESA Mount 75 x 75/100 x 100
IP Rating	IP65 Compliant Front Bezel
Net Weight	2.9kg

Environmental

Operating Temperature	-20°C~70°C
Certificate	CE/FCC Class A
Operating System Support	Android 11, Linux
