- Intel Celeron J1900 Processor
- 1 x DDR3L SO-DIMM 1333MHz
- 1 x 2.5” SATA2 HDD Space
- Fanless Design
- Wide Range DC 9~36V Power Input
Machine Vision Systems
AVS-300_V1.2.pdf
AVS-300
This Industrial Machine Vision PC is a budget friendly system powered via the Intel J1900 processor with 2 x LAN ports and plenty of I/O to connect up multiple monitoring devices such as cameras.
Quick Spec
| Processor | Intel Celeron J1900 |
|---|---|
| RAM | 4GB – 8GB |
| OS Support | Windows 10 IoT |
| Mounting Type | Flange (wall) |
Datasheet
AVS-300_V1.2.pdf
System
| CPU | Onboard Intel Celeron J1900 Processor |
| Memory | 1 x 204-pin SO-DIMM DDR3L 1333MHz, up to 8GB |
I/O Port
| USB |
|
| Serial/Parallel |
|
| Audio | 1 x Audio Line Out |
| LAN | 2 x GbE LAN RJ-45 |
Display
| Controller | Integrated Intel HD Graphics 688 / 854 MHz(J1900) |
| HDMI | 1 x HDMI up to 1920 x 1200 |
| VGA | 1 x VGA, DB15 up to 1920 x 1200 |
Storage
| HDD |
|
Expansion
| Expansion slot | 1 x Internal Mini-PCIe slot |
Power
| Power Input | DC 9~36V |
Mechanical

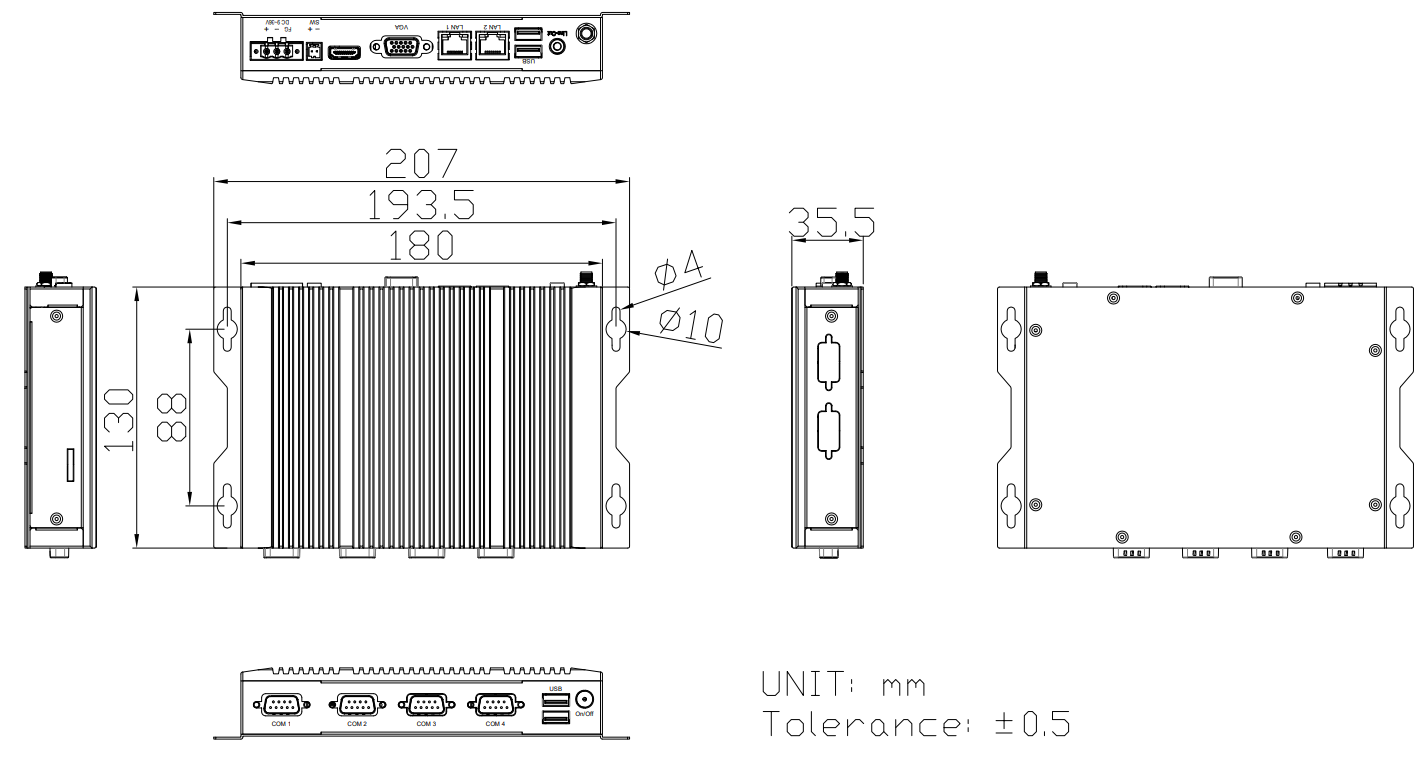

| Dimensions | 207 x 130 x 35.5 mm |
| Mounting | Flange |
| Gross Weight | 1.05kg |
| Operating Temperature | -20~70°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 7, Windows 10 IoT |
