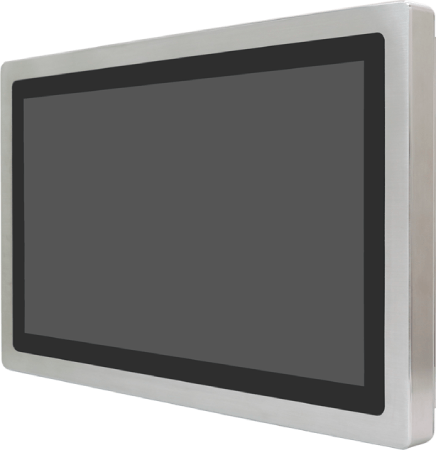

ATEX Panel PC

$1.00

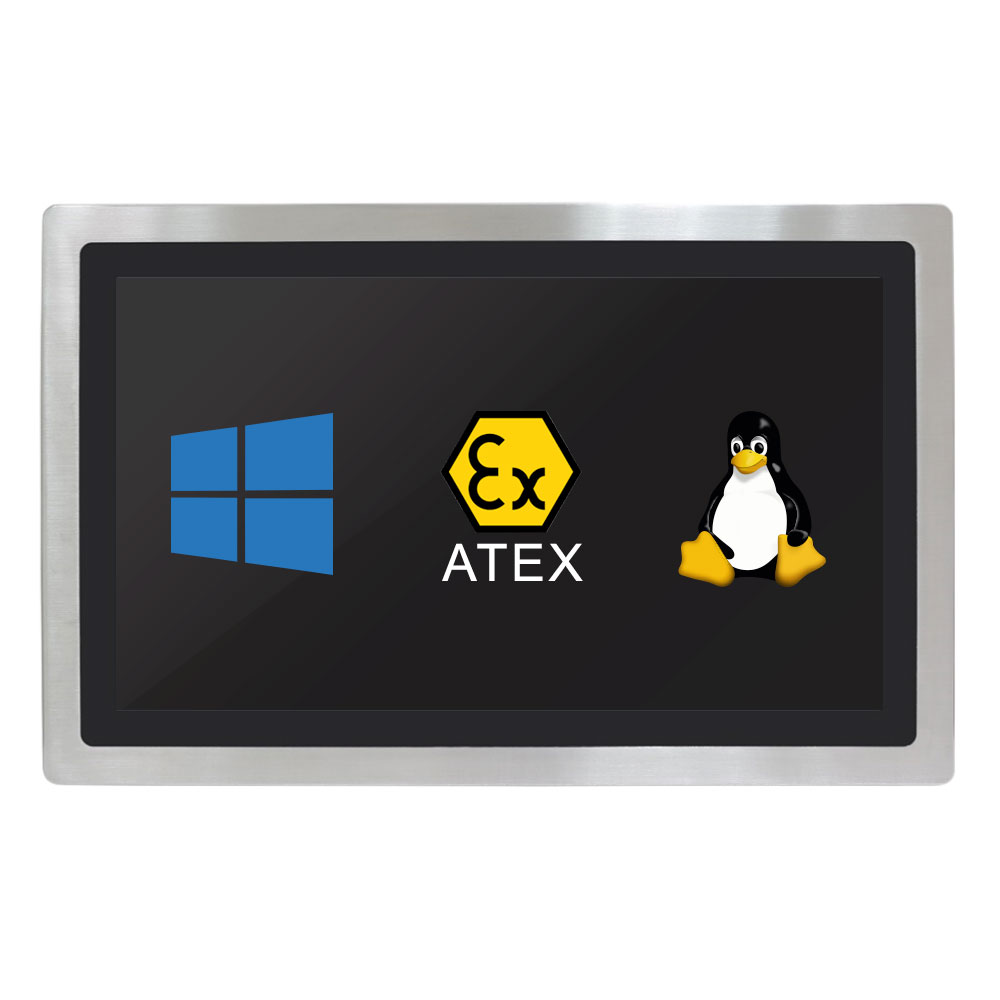

ATEX compliant industrial touchscreen Panel PC, for use in harsh Zone 2 environments.

Need Help? Contact Us


01462 374102

[email protected]
  • 15″ – 21.5″
  • Intel Celeron – Intel Core i5
  • Fully IP66
  • VESA/Panel

Resolution/Aspect Ratio & Environment

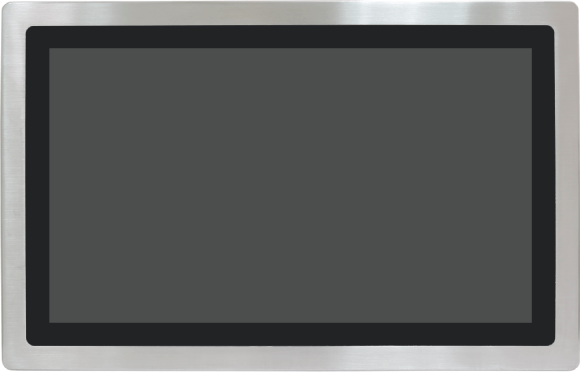

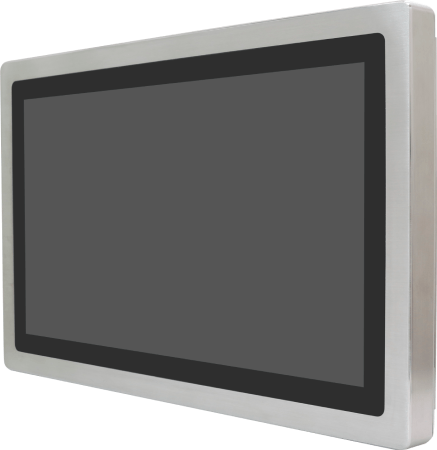

The ATEX panel PC range is available in a wide range of aspect ratios and resolutions to support the needs of new 16:9 and historic 4:3 applications. From 15”-21.5” screen sizes, with varying different resolutions up to 1920 x 1080, we have something to suit every need. Constructed with 316 grade stainless-steel, these fully enclosed IP66 rated systems are fanless, making them perfect for harsh Zone 2 and 22 environments. The AEX range is manufactured to the highest standards, with a focus on reliability and longevity. Systems are not supplied with a PSU but support 9-36v DC power input.

I/O & Mounting

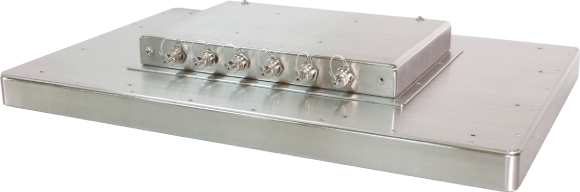

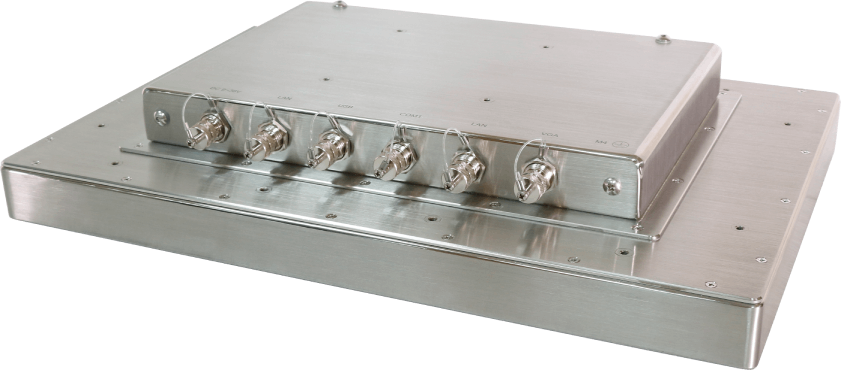

All sizes feature downward facing USB, LAN, and serial connections at the back of the unit via waterproof M12 connectors. As standard, an M12 USB Y cable is provided with 2 x female type A ports ready for device input. The AEX are compatible with both panel and VESA mounting to allow for seamless integration in any environment. An optional panel mount kit can be supplied for easy panel mount installation. The VESA size is 100×100 to conform with universal VESA brackets. DSL stock stainless-steel VESA wall mount brackets up to 100×100 available for next day dispatch.

Processor

There are multiple processor options available to meet the demand of the application. They are both Intel based CPUs, either a Quad Core Celeron, or a 6th Gen Core i5.
