ARCHMI-S-915DPRH

Categories: Front IP rated Panel PCs, Uncategorized

Quick Spec

Processor	Intel Core i3 1215U, Intel Core i5 1235U
Display Size	15''
RAM	Support 2 x DDR5 5600MHz SO-DIMM, Up to 64GB
IP Rating	IP66 Compliant Front Bezel
Power Input	DC 9~36V

Datasheet

ARCHMI-S-915DPRH

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
sales@dsl-industrialcomputing.co.uk

The ARCHMI-S-915DPRH is a 15″” fanless industrial Panel PC built around a 12th Gen Intel Core i3-1215U or i5-1235U (Alder Lake-U) processor, designed for dependable operation in demanding industrial environments. The IP66-compliant aluminium front bezel provides robust protection against dust and water ingress, while the fanless design ensures reliable long-term operation where vibration, particulates, or temperature variation are ongoing concerns.

Supporting both resistive and projected capacitive multi-touch, the display can be configured to suit the operational requirements of the installation – whether glove-friendly input on a factory floor or precise multi-touch interaction in a cleaner environment. Optional high brightness LCD and auto-dimming further extend deployment flexibility across varying lighting conditions.

Memory support extends to 64GB via two DDR5 5600MHz SO-DIMM slots, providing ample headroom for demanding automation software, edge computing, and real-time data processing workloads. A wide 9-36V DC power input ensures broad compatibility with industrial power supplies, making the ARCHMI-S-915DPRH a capable and flexible platform for a wide range of industrial automation, machine control, and supervisory applications.

0/5 (0 Reviews)

15″ Industrial Compact Size Panel PC
12th Gen. Intel i5-1235U, i3-1215U (Alder Lake-U)
Support 2 x DDR5 5600MHz SO-DIMM, Up to 64GB
IP66 Compliant Aluminum Front Bezel
Support Resistive touch screen and Projected Capacitive Multi-touch screen
Support Auto-Dimming (for option)
Support High Brightness LCD Version (for option)
Fanless Design
DC 9~36V Wide Range Power Input

FULL SPECIFICATIONS

System

CPU	Core i5-1235U (2P/8E/12T, P-core:4.4GHz, E-core:3.3GHz, 15W TDP) Core i3-1215U (2P/4E/8T, P-core:4.4GHz, E-core:3.3GHz, 15W TDP)
System Chipset	SoC
Memory	2 x DDR5 5600MHz SO-DIMM, up to 64GB
BIOS	AMI UEFI

I/O Port

USB	2 x USB 3.2 Gen1 Type A, 2 x USB 2.0 Type A
Serial/Parallel	1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default) 1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default) 1 x DB9 Type RS-232(COM3)
LAN	1 x RJ45 Type Intel I219LM GbE LAN 1 x RJ45 Type Intel I210AT, GbE LAN

Power Connector	1 x Terminal Block Type, 9-36VDC Power input

Storage

HDD/SSD

1 x M.2 Key-M Slot for NVME (PCIe Gen3, 2280)

Expansion

Expansion Slot

1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G,
3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)

Display

Display Type	15″ TFT-LCD
Max. Resolution	1024 x 768 / 1024 x 768
Max. Color	16.7M / 16.7M
Luminance (cd/m²)	360 (Standard) ; 1000 (High Brightness SKU)
View Angle	178(H)/178(V) ; 176(H)/176(V)
Contrast Ratio	1000:1 / 3000:1
Backlight Lifetime	50,000 hrs (Standard) ; 70,000 hrs (High Brightness SKU)

Touch Screen

Type	Resistive Touch (for DR Model) Projected Capacitive Touch (for DP Model)
Interface	USB
Light Transmission (%)	Resistive Touch: 80% / Projected Capacitive Touch: 90%

Power

Power Input	DC 9~36V
Power Consumption	ARCHMI-S-915DP/R: 80W(Max)

Mechanical

Construction	Aluminum Die-casting Chassis
Mounting	Panel Mount, VESA 100 x 100

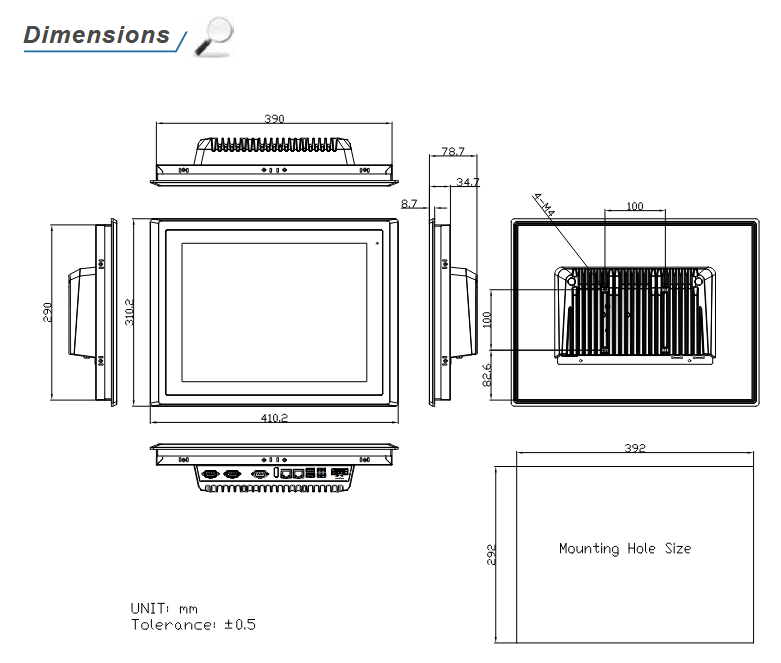

Dimensions (W x H x D)	410.2 x 290 x 78.7mm
Net Weight	5 kg

Environmental

Operating Temperature	0~50°C (default) / -20~60°C (optional)
Certificate	CE/FCC Class A
Storage Temperature	-30~70˚C
Humidity	10 to 95%@ 40˚C, non-condensing
Operating System Support	Win10, Win11, Linux

ARCHMI-S-915DPRH – Datasheet
