- 18.5″ Industrial Compact Size Panel PC
- Intel Celeron J6412 Processor
- Support 1 x DDR4 3200MHz SO-DIMM, Up to 32GB
- IP66 Compliant Aluminum Front Bezel
- Support Resistive touch screen and Projected Capacitive Multi-touch screen
- Support Auto-Dimming (for option)
- Support High Brightness LCD Version
- Fanless Design
- DC 9~36V Wide Range Power Input
Front IP rated Panel PCs, Uncategorized
ARCHMI-S-818BPR/H
Quick Spec
| Processor | Intel Celeron J6412 |
|---|---|
| Display Size | 18.5'' |
| RAM | Support 1 x DDR4 3200MHz SO-DIMM, Up to 32GB |
| IP Rating | IP66 Compliant Front Bezel |
| Power Input | DC 9~36V |
FULL SPECIFICATIONS
System
| CPU | Intel Celeron J6412 Quad Core Processor, 4C/4T, 2.0GHz, TDP 10W |
| System Chipset | SoC |
| Memory | 1 x DDR4 3200MHz SO-DIMM, up to 32GB |
| BIOS | AMI UEFI |
I/O Port
| USB | 2 x USB 3.2 Type A |
| Serial/Parallel | 1 x DB9 RS-232/422/485 (COM1, BIOS selection) |
| Audio | 1 x Line-out |
| LAN | 1 x RJ45 Type Intel I210AT 1GbE LAN 1 x RJ45 Type Intel I225LM/I226LM 2.5GbE LAN |
| Display Ports | 1 x DisplayPort 1.4: Up to 4096 x 2160 @60Hz |
| Power Connector | 1 x Terminal Block Type, 9~36V DC Power input |
Storage
| HDD/SSD | 1 x M.2 M-Key 2242/2280 for SSD (SATA3) |
Expansion
| Expansion Slot | 1 x Mini-PCIe slot (full size, PCIe 3.0 x1, USB2.0) with 1 x micro SIM slot 1 x M.2 E-Key 2230 for WiFi/BT module (USB2.0, PCIe 3.0 x1) |
Display
| Display Type | 18.5″ TFT-LCD |
| Max. Resolution | 1920 x 1080 |
| Max. Color | 16.7M |
| Luminance (cd/m²) | 350(Standard) / 1000 (High Brightness SKU) |
| View Angle | 178(H)/178(V) |
| Contrast Ratio | 1000:1/1000:1 |
| Backlight Lifetime | 50,000 hrs/50,000 hrs |
Touch Screen
| Type | Resistive Touch (BR Model) Projected Capacitive Touch (BP Model) |
| Interface | USB |
| Light Transmission (%) | Resistive: 80% / Projected Capacitive: 90% |
Power
| Power Input | DC 9~36V |
| Power Consumption | ARCHMI-S-818BP/R: 70.2W(Max) |
Mechanical
| Construction | Aluminum Die-casting Chassis |
| Mounting | Panel Mount, VESA 100 x 100 |

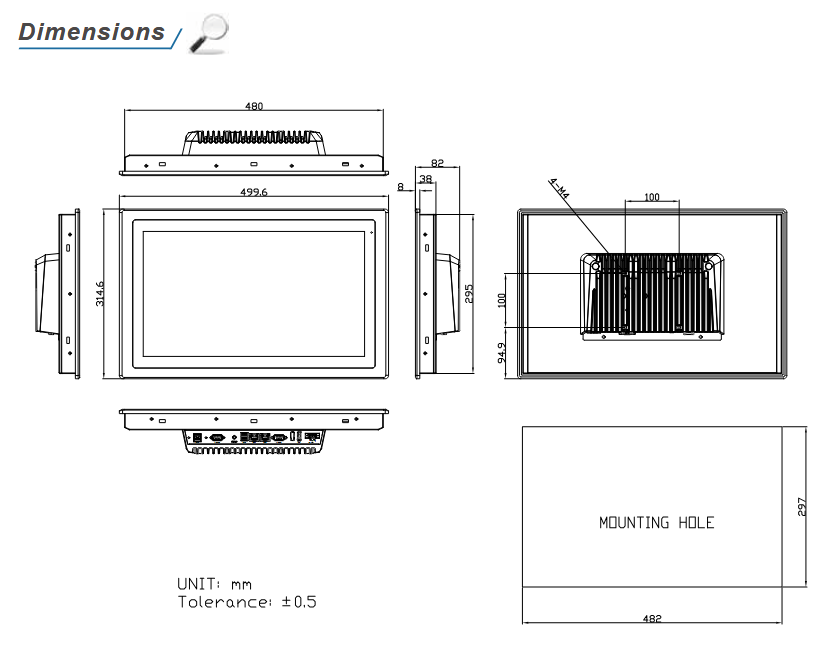

| Dimensions (W x H x D) | 499.6 x 314.6 x 82 mm |
| Net Weight | 6.85 kg |
Environmental
| Operating Temperature | 0~50°C (default) / -20~60°C (optional) |
| Certificate | CE/FCC Class A/ UL |
| Storage Temperature | -30~70˚C |
| Humidity | 10 to 95%@ 40˚C, non-condensing |
| Operating System Support | Win10, Win11, Linux |
