ARCHMI-S-812BPR/H

Processor	Intel Celeron J6412
Display Size	12.1"
RAM	Support 1 x DDR4 3200MHz SO-DIMM, Up to 32GB
IP Rating	IP66 Compliant Front Bezel
Power Input	DC 9~36V

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

CPU	Intel Celeron J6412 Quad Core Processor, 4C/4T, 2.0GHz, TDP 10W
System Chipset	SoC
Memory	1 x DDR4 3200MHz SO-DIMM, up to 32GB
BIOS	AMI UEFI

USB	2 x USB 3.2 Type A
Serial/Parallel	1 x DB9 RS-232/422/485 (COM1, BIOS selection)
Audio	1 x Line-out
LAN	1 x RJ45 Type Intel I210AT 1GbE LAN 1 x RJ45 Type Intel I225LM/I226LM 2.5GbE LAN
Display Ports	1 x DisplayPort 1.4: Up to 4096 x 2160 @60Hz
Power Connector	1 x Terminal Block Type, 9~36V DC Power input

HDD/SSD

1 x M.2 M-Key 2242/2280 for SSD (SATA3)

Expansion Slot

1 x Mini-PCIe slot (full size, PCIe 3.0 x1, USB2.0) with 1 x micro SIM slot
1 x M.2 E-Key 2230 for WiFi/BT module (USB2.0, PCIe 3.0 x1)

Display Type	12.1″ TFT-LCD
Max. Resolution	800 x 600/ 1024 x 768
Max. Color	16.2M
Luminance (cd/m²)	450/500 (Standard) / 1000 (High Brightness SKU)
View Angle	178(H)/178(V)
Contrast Ratio	1500:1/1000:1
Backlight Lifetime	30,000 hrs/70,000 hrs

Type	Resistive Touch (BR Model) Projected Capacitive Touch (BP Model)
Interface	USB
Light Transmission (%)	Resistive: 80% / Projected Capacitive: 90%

Power Input	DC 9~36V
Power Consumption	ARCHMI-S-812BP/R: 51.48W(Max)

Construction	Aluminum Die-casting Chassis
Mounting	Panel Mount, VESA 100 x 100

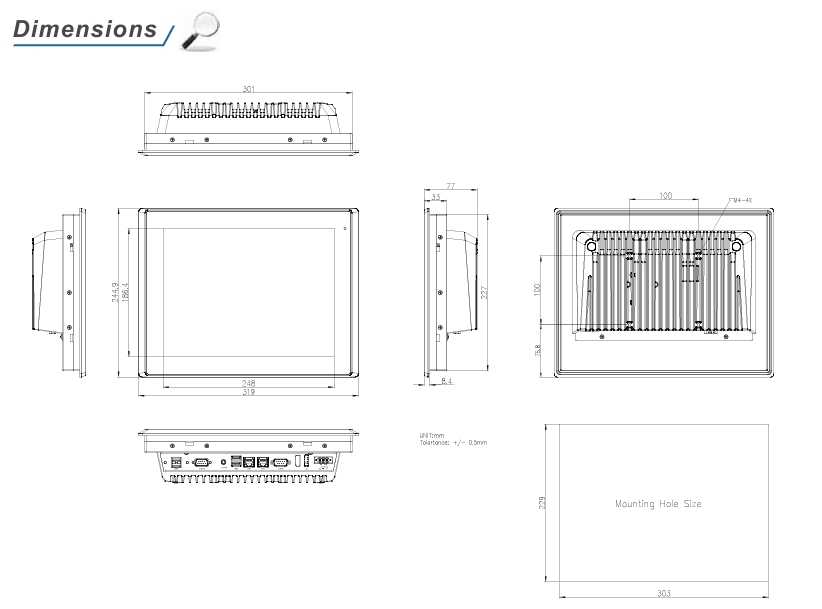

Dimensions (W x H x D)	314 x 244.9 x 77 mm
Net Weight	3.3 kg
