ARCHMI-912WB/P

These 12.1″ widescreen lightweight aluminium, front IP66 panel PCs employ the Intel Core i3 8145UE CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

Categories: Front IP rated Panel PCs, Industrial, Panel PCs

Quick Spec

Display Size	12.1"
Processor	Intel Core i3 8145UE
RAM	4GB – 32GB
IP Rating	Fully IP66
Manufacturer	Aplex Technology
Touchscreen	Projected Capacitive, Resistive
Mounting Type	Panel, VESA
OS Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu

Datasheet

ARCHMI-912WBPRH_V1.0.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

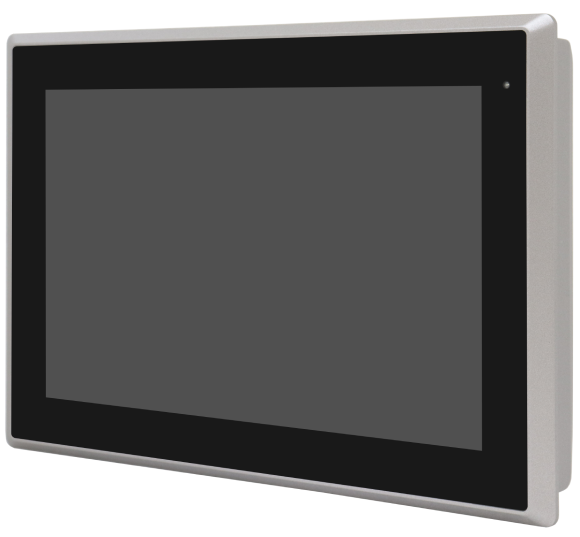

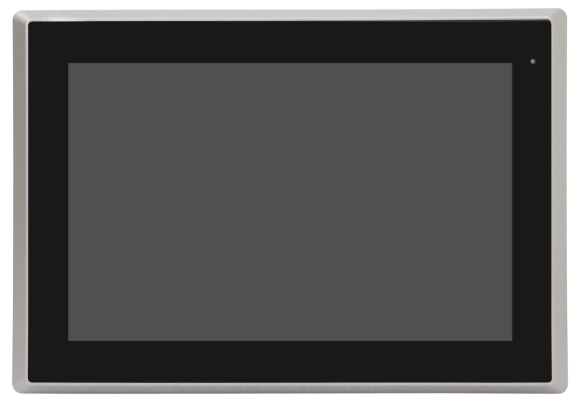

12.1” Widescreen Industrial Compact Size Panel PC
Flat Front Panel Touch Screen and Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Core i3 8145UE CPU built-in
Up to 32GB RAM
IP66 Compliant Front Panel
Supports TPM2.0 Hardware Security

System

CPU	Onboard Intel Core i3 8145UE Processor
Memory	Up to 32GB
TPM	TPM 2.0

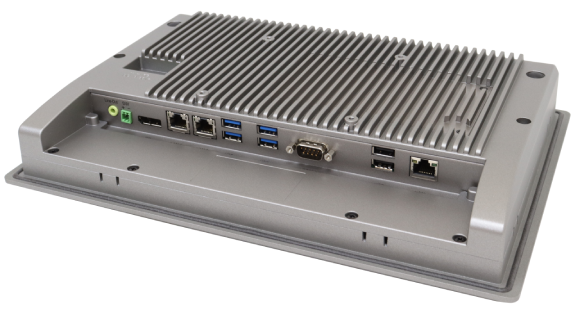

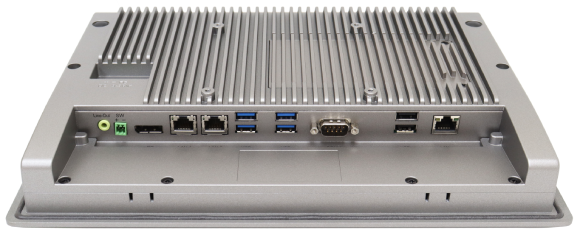

I/O Port

USB	4 x USB 3.0 type A
Serial/Parallel	1 x DB-9 connector, including: 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1) default x RS-232(Tx, Rx)/422/485(COM2) optional
Audio	1 x Audio Line Out
DP	1 x DP Port
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 3-pin for DC power input terminal 1 x 2-pin connector for power on/off button
Option	COM port Y cable (for 1 x RS-232(Tx, Rx)/422/485(COM2)) 4G LTE WiFi 4/5/6+ BT 4 x USB 2.0 type A (TB-528U4) 4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1) AB50 2 x COM (RS-232) (TB-528C2) • 1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2) 1 x COM (RS-232) + 2 x USB 2.0 + 1 x Mini-PCIe + 1 x Power Button (TB-528C1U2P1) 2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1) 2 x COM (RS-422/485, isolated) (TB-528C2I) 2 x CAN (TB-528CAN2) 1 x LAN + 2 x USB 2.0 type A (TB-528E1U2) 1 x LAN + 2 x USB 2.0 type A /45WPoE (TB528E1U2UPOE)* Backup Battery 21W/10.8W/1.95Ah(3S1P) (TB-528 Series or backup battery only be inserted in either one)

Storage

1 x M.2 M Key slot; (Support PCIe/SATA 2242/2280, Default 2242)

Expansion

Expansion slot

1 x Internal Mini-PCIe slot full size
1 x Nano SIM card holder

Display – based on standard display, high brightness option see datasheet

Display Type	12.1″ TFT-LCD
Max. Resolution	1280 x 800

Touch Screen

Type	Projected Capacitive / Resistive
Light Transmission (%)	Projected Capacitive Touch: 90% Resistive Touch: 80%

Power

Power Input

DC 9~36V

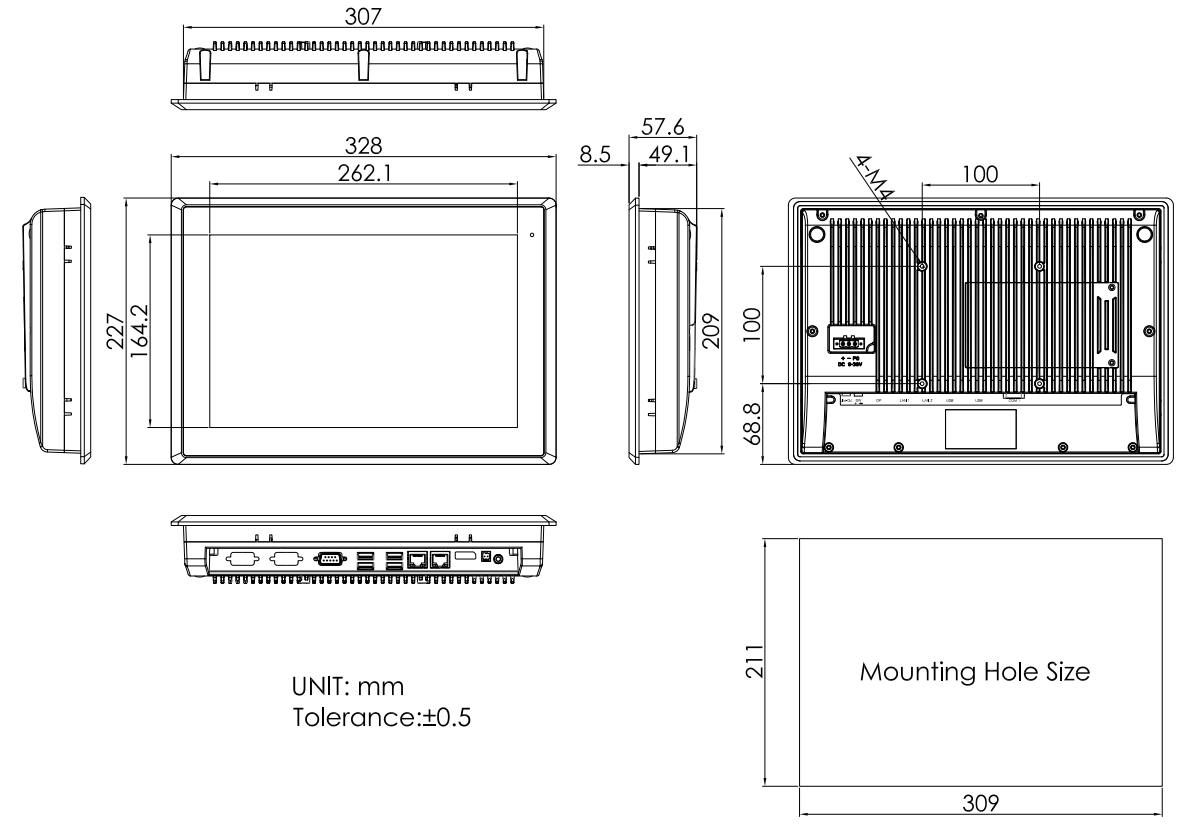

Mechanical

Construction	Aluminium die-cast chassis
Mounting	Panel Mount, VESA Mount 100 x 100
IP Rating	IP66 Compliant Front Bezel
Net Weight	2.9kg

Environmental

Operating Temperature	0~50°C/-20~60°C (option)
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu
