ARCHMI-816A/P

These 15.6″ lightweight aluminium, front IP66 panel PCs employ the Intel Pentium N4200 CPU, and can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

Category: Panel PCs

Quick Spec

Display Size	15.6"
Processor	Intel Pentium N4200
RAM	4GB – 8GB
IP Rating	Front IP66
Touchscreen	Resistive/Projected Capacitive
OS Support	Windows 10 Pro/IoT, Linux, Ubuntu
Mounting Type	Panel/VESA

Datasheet

ARCHMI-816APRGH_V1.0.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

15.6” Industrial Compact Size Panel PC
Flat Front Panel Touch Screen and Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Pentium N4200 CPU built-in
Up to 8GB RAM
IP66 Compliant Front Panel

System

CPU	Onboard Intel Pentium N42OO Processor
Memory	Onboard 4GB DDR3L/8GB (option)

I/O Port

USB	2 x USB 3.0 type A
Serial/Parallel	1 x DB-9 RS-232/422/485, COM1 (default RS-232) 1 x RS-232 DB-9, COM2
Audio	1 x Audio Line Out
LAN	2 x GbE LAN RJ-45
Power Connector	1 x 3-pin for DC power input terminal 1 x 2-pin connector for power on/off button
Option	2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 2 x CAN bus via TB-528CAN2 2 x USB 2.0 type A Via TB-528U2 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power button via TB-528C1U2 UPS Battery 21W/10.8W/1.95Ah(3S1P)

Storage

HDD	1 x 2.5″ SATA3 HDD bay for SATA HDD (Easy Accessible)
Movable Device	1 x SD card slot, up to 32GB

Expansion

Expansion slot

1 x Internal Mini-PCIe slot full size

Display – based on standard display, high brightness option see datasheet

Display Type	15.6″ TFT-LCD
Max. Resolution	1366 x 768

Touch Screen

Type	Projected Capacitive / Resistive
Light Transmission (%)	Projected Capacitive Touch: over 90% Resistive Touch: over 80%

Power

Power Input

DC 9~36V

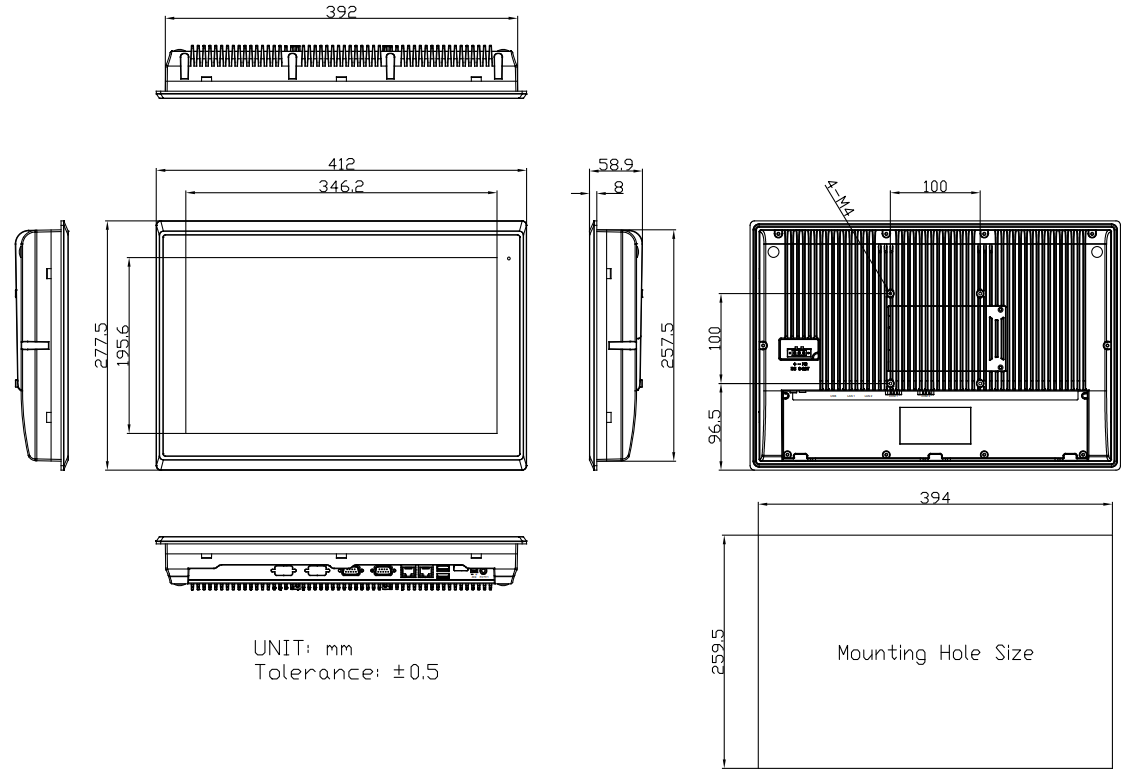

Mechanical

Construction	Aluminium die-cast chassis
Mounting	Panel Mount, VESA Mount 100 x 100
IP Rating	IP66 Compliant Front Bezel
Net Weight	4.8kg

Environmental

Operating Temperature	0~50°C
Certificate	CE/FCC Class A/CB/UL
Operating System Support	Windows 10 Pro/IoT, Linux, Ubuntu
