ARCDIS-116A/P

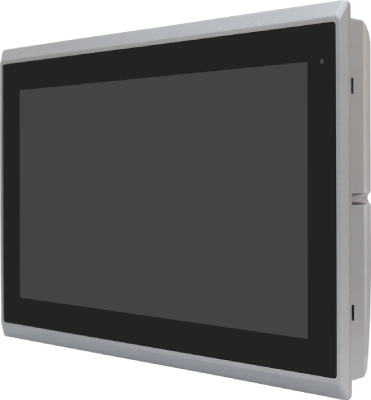

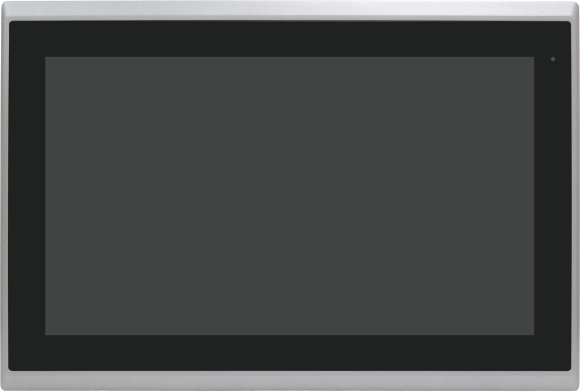

These 15.6″ aluminium, front IP66 industrial displays can be panel or VESA mounted for a sleek built-in feel. Perfect for industrial environments.

Category: Industrial Display

Display Size	15.6"
IP Rating	Front IP66
Touchscreen	Projected Capacitive, Resistive, No Touch Hardened Glass
Mounting Type	Panel/VESA

Datasheet

ARCDIS-116ARPGH_V2.0-1.pdf

Need Help? Contact Us

01462 374102
[email protected]

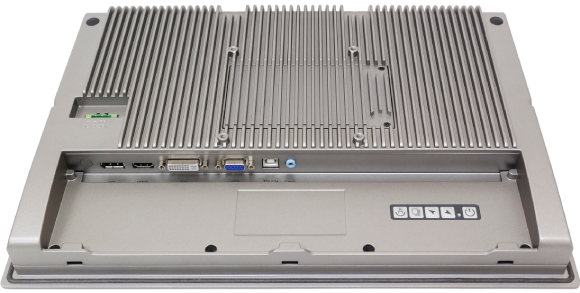

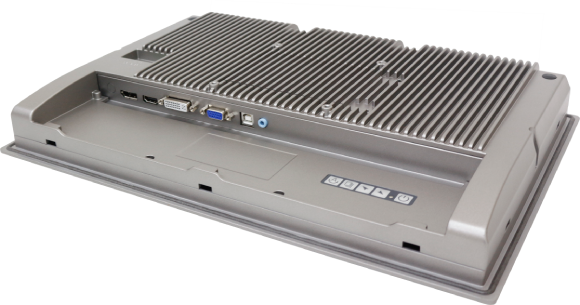

VGA	1 x VGA
DVI	1 x DVI-D (share with HDMI)
DP	1 x DP
HDMI	1 x HDMI (share with DVI-D)
Audio	1 x Audio line-in phone jack
OSD Control Membrane	OSD at rear side
Power	1 x 3-pin terminal block for DC 9~36V power input
Others	1 x USB type B for touch control Optional I/O: • 1 x Speaker • 1 x RS-232 DB-9 for touch contro
Display	based on standard display, high brightness option see datasheet
Display Type	15.6″” TFT-LCD
Max. Resolution	1366 x 768 (1920 x 1080 option)

Type	Projected Capacitive/Resistive/Glass
Interface	USB default (Resistive/Projected Capacitive Touch) RS-232 Option (Resistive Touch)
Light Transmission (%)	Projected Capacitive Touch: over 90% Resistive Touch: over 80%

Power Input

DC 9~36V

Construction	Aluminium die-cast chassis

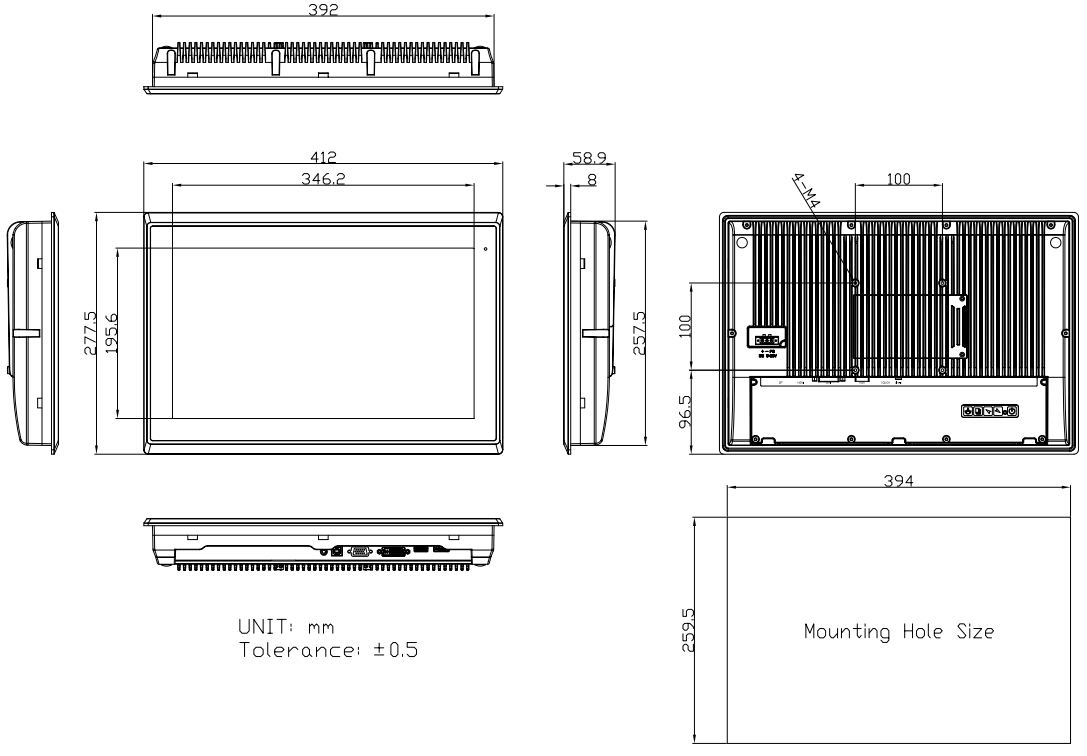

Mounting	Panel Mount, VESA Mount 100 x 100
IP Rating	IP66 Compliant Front Bezel/IP69K option
Net Weight	4.4kg

Operating Temperature	0~50°C
Certificate	CE/FCC Class A
