- Fanless Design

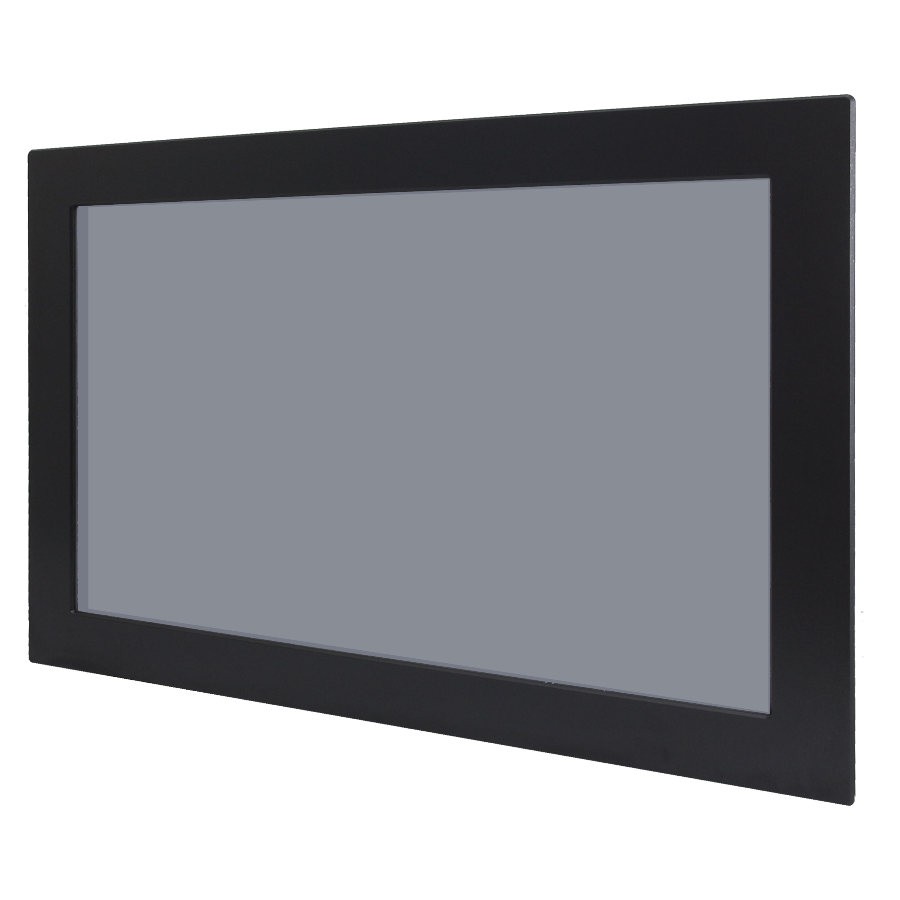

- Full HD Panel PC
- Front Panel IP65
- LED Backlight
- 9~32V DC Wide Range Power Input
Archive Panel Pcs
APC-3228A-datasheet-V0.1.pdf
APC-3228AT
Archive product
> 5 year warranty as standard on all products
Quick Spec
| Display Size | 21.5" |
|---|---|
| Mounting Type | Panel, Rack, VESA |
| IP Rating | Front IP65 |
| Touchscreen | Resistive |
Datasheet
APC-3228A-datasheet-V0.1.pdf
Request a Quote
Discontinued
System
| CPU | Intel Socket P Processor support up to Intel P8600 2.4GHz Processor, default Intel P8400 2.26GHz |
| Memory | 2 x 204 Pin DDR3 SO-DIMM, up to 8 GB SDRAM |
| System Chipset | Intel GM45 + Intel9M |
| External I/O Port |
|
| Storage |
|
| Expansion Slots | 1 x PCI / 1 x PCIe x1 for option |
| Power Input | 9~32V DC |
| Touch Screen | Resistive Touch Screen (option) |
| Light Transmission | 80% |
| OS Support | Windows XP Professional, XP Embedded, Windows Embedded Standard 7 |
LCD
| Display Type | 21.5” TFT-LCD |
| Luminance (cdm2) | 400 |
| Max. Color | 16.7M |
| Max.Resolution | 1920×1080 |
| View Angle | H:170° / V:160° |
| Backlight Lifetime | 30,000 hrs |
Mechanical
| Construction | Steel |
| Mounting | Panel / VESA 100 x 100 Mount |
| Ratings | Front Panel IP65 |
| Dimension | 537x342x99 |
| Net Weight | 11.5kgs |
Environmental
| Operating Temperature | -10~50 º C |
| Storage Temperature | -20~60˚C |
| Storage Humidity | 10 to 90%@ 40˚C non-condensing |
| Certificate | CE/FCC Class A |
