- 21.5″ Industrial Grade Multitouch Panel PC
- Intel Core Ultra 5/7 Processor
- Supports 1 × DDR5-5600MHz SO-DIMM
- IP66-Compliant Aluminum Narrow Bezel Design
- 7H Anti-Scratch Projected Capacitive Multi-Touch Screen
- Supports High-Brightness LCD (Optional)
- Supports Auto-Dimming (PB-49/50) (Optional)
- Power Input: DC 9–36V
- Fanless Design
Front IP rated Panel PCs
AiTRON-921EP
AiTRON-921EP – 21.5″ Intel Core Ultra 5
21.5″ FHD Intel Core Ultra 5/7 Platform Fanless Industrial Multitouch Panel PC
Quick Spec
| Display Size | 21.5" TFT-LCD |
|---|---|
| Processor | Intel Core Ultra 5 125U |
| RAM | 1 x DDR5-5600MHz SO-DIMM, up to 48GB |
| Max Resolution | 1920 x 1080 |
Datasheet
AiTRON-921EP
| System | ||||||||
|---|---|---|---|---|---|---|---|---|
| CPU | Intel Core Ultra 5 125U (2 P-Cores x 1.3GHz, 8 E-Cores x 0.8GHz, 12MB cache, 15W) Intel Core Ultra 7 155U (2 P-Cores x 1.7GHz, 8 E-Cores x 1.2GHz, 12MB cache, 15W) |
|||||||
| System Chipset | SoC | |||||||
| BIOS | AMI UEFI | |||||||
| System Memory | 1 x DDR5-5600MHz SO-DIMM, up to 48GB | |||||||
| I/O Port | ||||||||
| USB | 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Type-A (optional) | |||||||
| Serial | 1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default) 1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional 1 x DB9, supports RS-232 (COM3), optional |
|||||||
| Display | 1 x HDMI 2.1, resolution up to 7680×4320@60 Hz 1 x DP 1.4, resolution up to 7680×4320@60Hz |
|||||||
| LAN | 2 x RJ-45, support Intel I226V/IT 2.5GbE LAN | |||||||
| Power | 1 × Terminal Block, supports DC 9~36V Power Input | |||||||
| Storage Space | ||||||||
| HDD/SSD | 1 x M.2 2280 M-Key socket (PCle 3.0 x4) | |||||||
| Expansion | ||||||||
| Expansion Slot | 1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module 1 x M.2 3042/3052 B-key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module 1 x Nano-SIM slot |
|||||||
| Others | ||||||||
| TPM | Onboard TPM2.0 | |||||||
| Watchdog Timer | 1~255 sec (system) | |||||||
| Wake on LAN | Support WOL | |||||||
| Display | Standard | High Brightness Optional | ||||||
| Display Type | 21.5″ TFT-LCD | 21.5″ TFT-LCD | ||||||
| Max. Resolution | 1920 x 1080, FHD | 1920 x 1080, FHD | ||||||
| Max. Color | 16.7M | 16.7M | ||||||
| Luminance (cd/m²) | 250 | 1000 | ||||||
| View Angle | 178(H)/178(V) | 170(H)/170(V) | ||||||
| Contrast | 1000:1 | 1000:1 | ||||||
| Backlight Lifetime | 50,000 hrs | 50,000 hrs | ||||||
| Touch Screen | ||||||||
| Type | Projected Capacitive Touch | |||||||
| Interface | USB | |||||||
| Light Transmission (%) | 90% | |||||||
| Power | ||||||||
| Power Input | DC 9~36V | |||||||
| Power Consumption | 35.7W | |||||||
| Mechanical | ||||||||
| Construction | Aluminum Die-casting Chassis | |||||||
| Mounting | Panel Mount, VESA 100 × 100 | |||||||

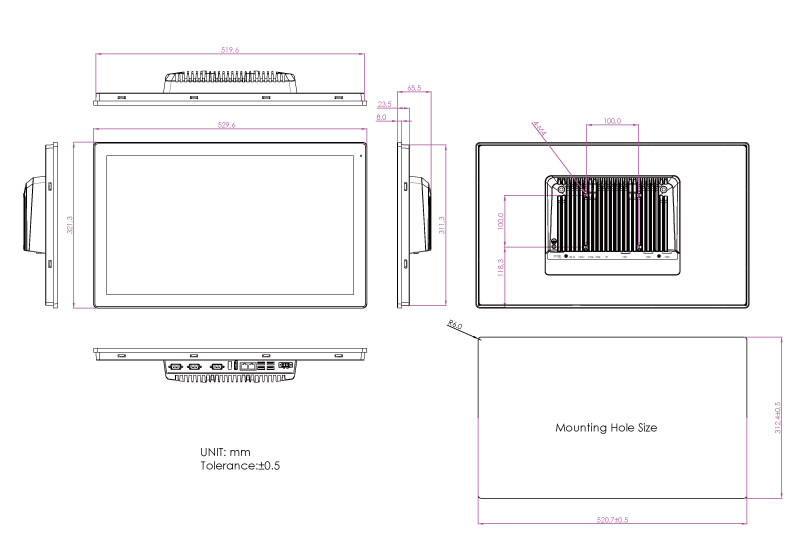

| Dimensions (W×H×D) | 592.6 x 321.3 x 65.5 mm | |||||||
| IP Rating | IP66 Compliant Front Bezel | |||||||
| Net Weight | 2.74 kg | |||||||
| Environmental | ||||||||
| Operating Temperature | 0~50°C | |||||||
| Storage Temperature | -10~60°C | |||||||
| Humidity | 10 to 95% @40°C, non-condensing | |||||||
| Certification | CE/FCC, Class A | |||||||
| Operating System Support | ||||||||
| Supported OS | Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (22H2) or later, Linux 24.04 | |||||||
