- Intel Socket P Core 2 DUO processor, support up to Intel P8600 processor
- IP65 Flat Panel Design with projected capacitive touch
- Aluminum front bezel
- Accessible 2.5″ SATA HDD space
- Wide range DC power input:11~32V DC
Archive Panel Pcs
AHM-6159P-DS.pdf

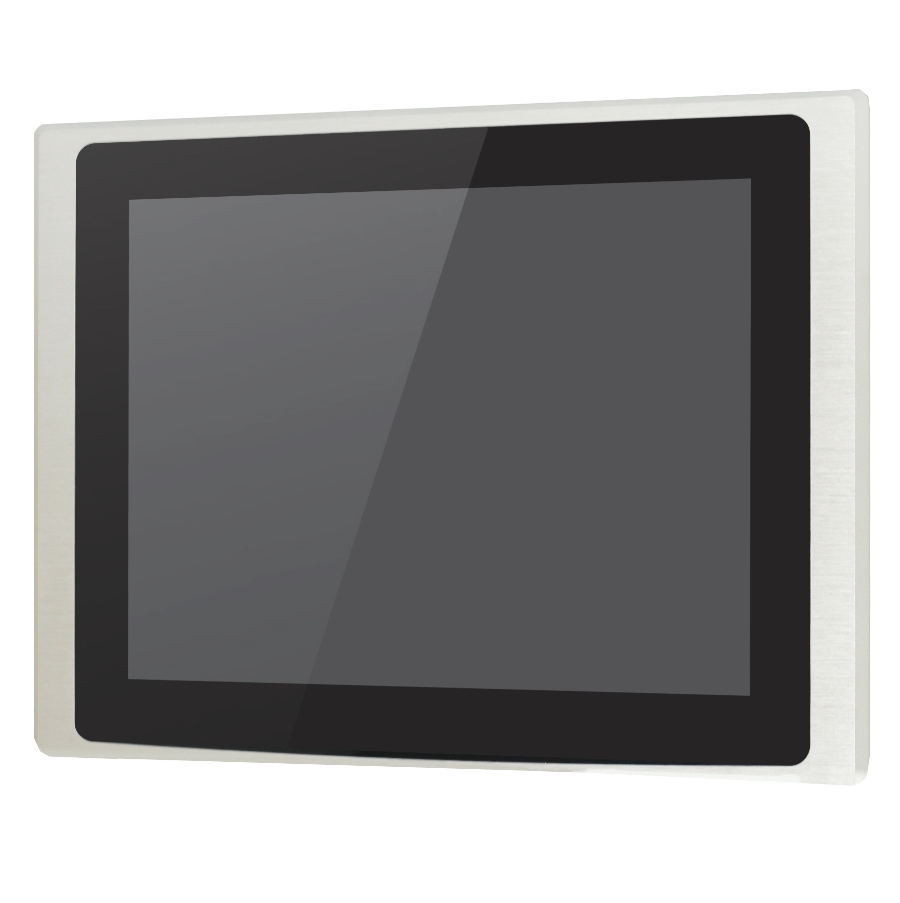

AHM-6159P
Archive product – see alternative product
ARCHMI Panel PC > 5 year warranty as standard on all products
Quick Spec
| Display Size | 15'' |
|---|---|
| Mounting Type | Panel, VESA |
| IP Rating | Front IP65 |
| Ambient Temperature | 0°c/50°c |
| Touchscreen | Projected Capacitive |
Datasheet
AHM-6159P-DS.pdf
Request a Quote
Discontinued
System
| CPU | Intel Socket P Core 2 DUO processor, support up to Intel P8600 processor, default P8400 2.26 GHz |
| System Memory | 1 x 204-pin SO-DIMM socket, support DDR3-800 default 2GB memory |
| System Chipset | Intel GM45 + ICH9M |
| External I/O Port |
|
| Storage |
|
| Expansion Slots | None |
| Power Input | DC 11~32V |
| Touch Screen | Projected Capacitive Touch |
| Light Transmission | 90% |
| OS Support | Windows XP Pro, XP Embedded, Windows embedded standard 7 |
LCD
| Display Type | 15” Color TFT |
| Luminance (cdm2) | 400 |
| Max. Color | 262K |
| Resolution | 1024×768 |
| View Angle | H: 160/V: 145 |
| Backlight Lifetime | 50,000 hrs |
Mechanical
| Construction | Aluminum front bezel and steel chassis |
| Mounting | Panel/VESA 75×75 Mount |
| Dimension | 410(W)x310(H)x44(D) mm |
| IP Rating | NEMA 4/ IP 65 compliant front panel |
| Net Weight | 6.3kgs |
Environmental
| Operating Temperature | -10~50 ˚ C |
| Storage Temperature | -20~60˚C |
| Storage Humidity | 10 to 90% @40˚ C non-condensing |
| Certificate | CE/FCC Class A |
