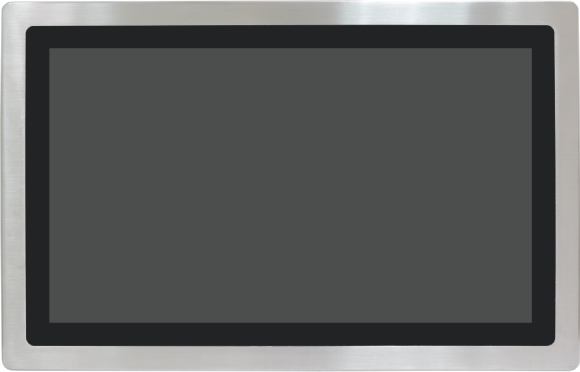

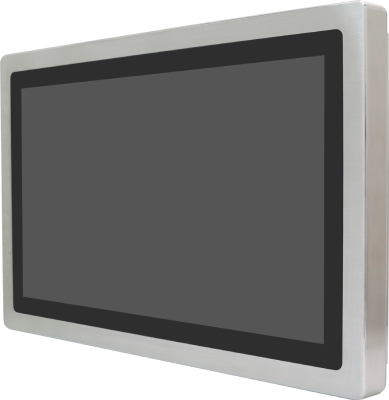

- 21.5” Industrial Compact Size Industrial Display
- Stainless-Steel Bezel
- Fully Enclosed Touch Screen with Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Fully IP66 ATEX Compliant Panel
Industrial Display
AEx-121P_V1.5.pdf.pdf
AEx-121P
21.5″ ATEX compliant industrial display, for use in harsh Zone 2 & 22 environments.
Quick Spec
| Display Size | 21.5" |
|---|---|
| IP Rating | Fully IP66 |
| Touchscreen | Projected Capacitive |
| Mounting Type | Panel/VESA |
Datasheet
AEx-121P_V1.5.pdf.pdf

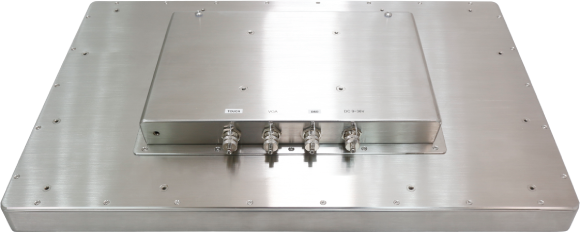

External I/O
| USB | 1 x M12 8-pin for 2 x USB 2.0 for Touch Control with waterproof cover and chain |
| Graph | 1 x M12 8-pin for VGA with waterproof cover and chain |
| Function Keypad | 1 x M12 8-pin for OSD Cable & External OSD BOX with waterproof cover and chain |
| Power | 1 x M12 3-pin for DC power with waterproof cover and chain |
Display
| Display Type | 21.5″” TFT-LCD |
| Max. Resolution | 1920 x 768 |
Touch Screen
| Type | Projected Capacitive |
| Interface | USB |
| Light Transmission (%) | 90% |
Power
| Power Input | DC 9~36V |

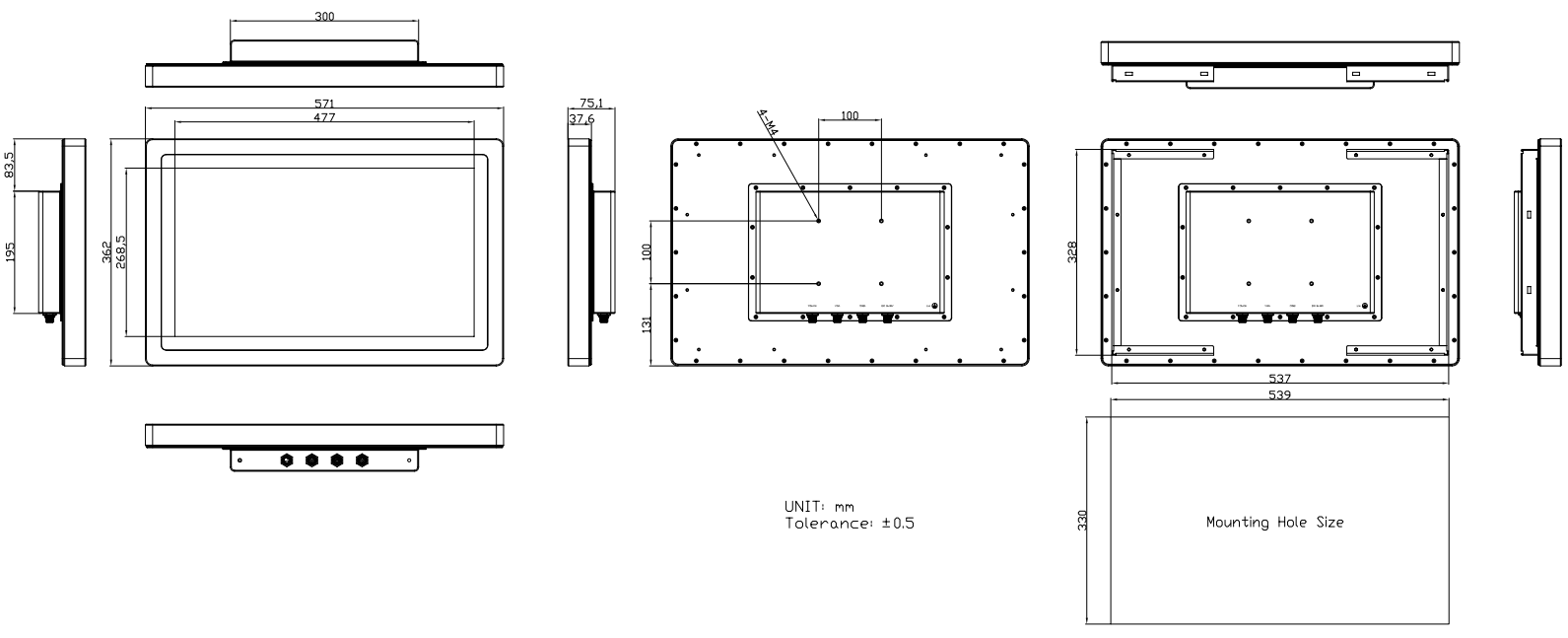

Mechanical
| Construction | 316 Stainless steel chassis |
| Mounting | VESA Mount 100 x 100, Panel mount option |
| IP Rating | Fully IP66 |
| Net Weight | 12.3kg |
Environmental
| Operating Temperature | -20~60°C |
| Safety | CSA C22.2 No.61010 |
| Certificate |
|
